TECHNICAL SPECIFICATIONS

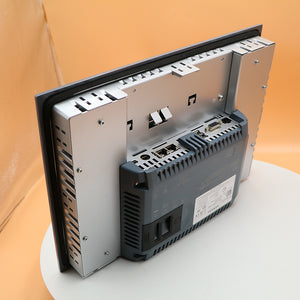

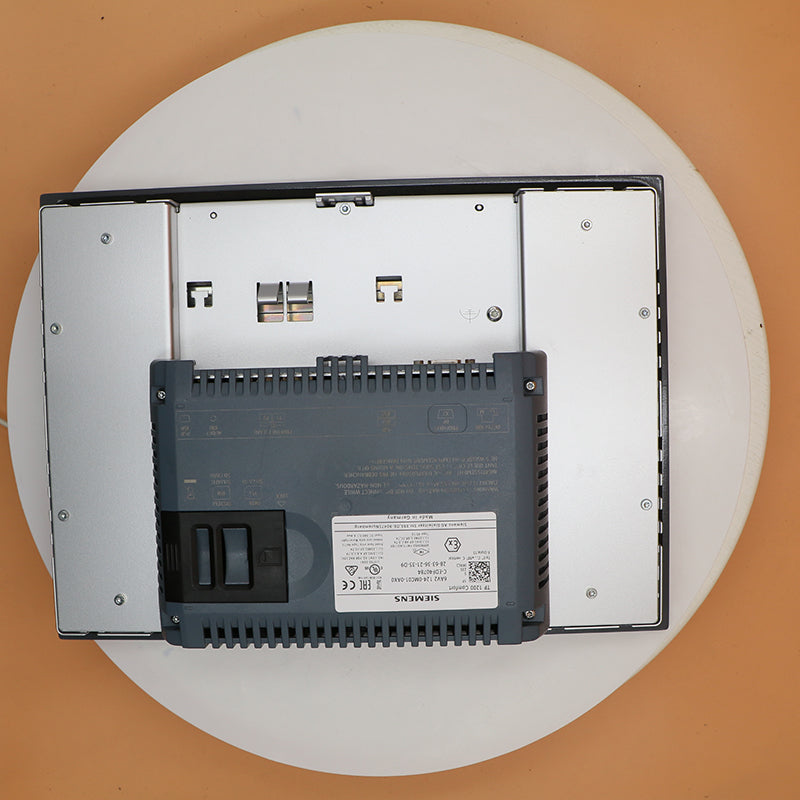

Siemens 6AV2124-0MC01-0AX0

The Siemens 6AV2124-0MC01-0AX0 is a sophisticated module of the SIMATIC HMI product family, designed for visualizing and monitoring automation processes. It integrates innovative technology to enable efficient human-machine interaction, ensuring seamless management and control of industrial processes.

Technical Specifications:

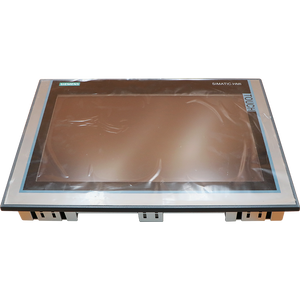

The unit boasts a 12.1-inch widescreen TFT display with an impressive 16 million colors, allowing for sharp, clear visuals and easy-to-read text. The display resolution is 1280 x 800 pixels, ensuring high-definition clarity.

The model 6AV2124-0MC01-0AX0 incorporates a capacitive touchscreen interface, enabling intuitive and responsive interaction. The multi-touch functionality allows for multi-finger gestures, making it easier for operators to navigate through screens and execute commands.

The module comes in a standard size of 330 x 241 x 65 mm (W x H x D), enabling easy integration into various industrial settings without demanding excessive space.

It features a powerful processor designed to support intensive applications, with integrated RAM and Flash memory, allowing for rapid data processing and ample storage capacity. The unit runs on the Windows Embedded Compact 7 operating system, ensuring compatibility with a wide range of software and offering enhanced user experience.

The 6AV2124-0MC01-0AX0 model features two Profinet (IE) interfaces, along with two USB interfaces, providing a variety of options for seamless connectivity. It also supports WLAN functionality as an optional feature, offering wireless networking capabilities for modern industrial environments.

To ensure proper functioning, it is imperative to mount the model in a vertical orientation. This vertical positioning is designed to optimize its performance and maintain stability during operation. Additionally, the model is specifically compatible with a DC power supply, ensuring a reliable and consistent power source for its operations.

The device is robustly built and complies with IP20 (rare) protection class, ensuring its resistance against dust and other potential damage factors in an industrial setting. The operating temperature range of the Siemens 6AV2124-0MC01-0AX0 extends from 0 to 50 degrees Celsius, indicating its adaptability to a range of environmental conditions.

The device complies with eco-friendly standards, operating at a power consumption of 20 W under a typical load, thus offering energy efficiency alongside superior performance. The Siemens 6AV2124-0MC01-0AX0 meets global regulatory standards, including CE, UL, CSA, and FCC approvals, attesting to its safety, reliability, and quality.

Additional Features:

The device supports multiple languages, allowing for a versatile and inclusive user experience across different regions and industries. Equipped with an integrated speaker further enhancing user-machine interaction.

Built with a ruggedized enclosure, the HMI panel can withstand harsh industrial environments. It is resistant to dust, moisture, and vibrations, ensuring reliable operation and longevity. The front panel is made of chemically strengthened glass, enhancing durability and protection against scratches.

The Siemens 6AV2124-0MC01-0AX0 supports expansion modules, allowing users to enhance functionality and adapt to specific requirements. Expansion options include additional communication interfaces, I/O modules, and memory expansion cards, enabling customization and scalability.

The HMI panel is compatible with Siemens' comprehensive range of engineering software, providing seamless integration with automation systems. This compatibility ensures efficient project development, commissioning, and maintenance processes.

The 6AV2124-0MC01-0AX0 model supports high-resolution graphics and advanced visualization capabilities. It allows for the creation of visually appealing and informative graphical interfaces, enabling operators to intuitively monitor and control industrial processes.

With built-in alarm management functionality, the HMI panel enables the configuration and monitoring of alarms, ensuring prompt identification and response to critical events. Operators can set alarm thresholds, prioritize alerts, and track alarm history, enhancing situational awareness and facilitating timely decision-making.
