Allen-Bradley 1769-OB32

Allen-Bradley 1769-0B32
Allen-Bradley 1769-0B32 Refurbished

Allen-Bradley 1769-OB32

Regular price
Sale price
$859.00

This product is not available for online purchase. If you would like to receive a quote please use the button below.

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice‚ here.

  • 1769OB32 / 1769-0B32
  • I/O MODULE
  • COMPACTLOGIX
  • 32 POINT
  • SOLID STATE
  • DC SOURCE
  • HIGH CURRENT OUTPUT
  • 24 VDC

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.

Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
Surplus Original Box 1769-OB32-FS 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

Quick Search

TECHNICAL SPECIFICATIONS

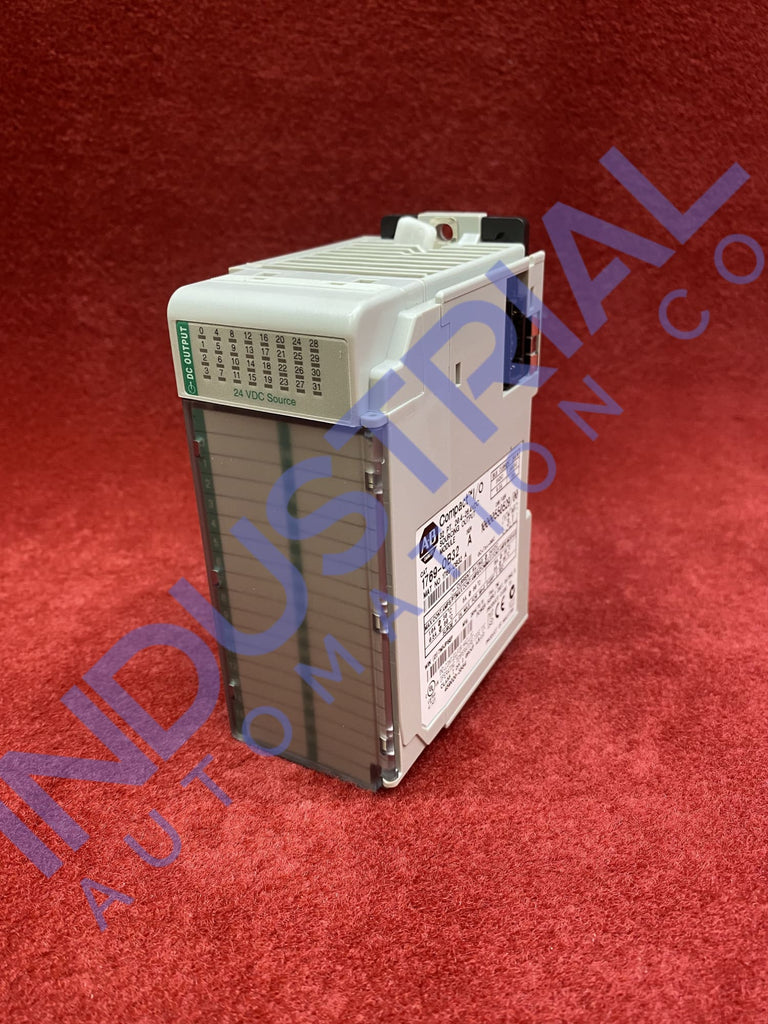

The Allen-Bradley 1769-OB32 Compact I/O fractional output module is a solid-state device to use with CompactLogix and MicroLogix 1500 controllers. The 1769-OB32 is an elevated and high-density module with thirty-two (32) different output channels, split into two groups of 16 channels each. This module is helpful in applications with many I/O modules but limited panel space. It overall takes up 1.5 slots in the MicroLogix or CompactLogix 1500 chassis, allowing you to enhance the number of supported modules for a specific controller.

This module's output channel has a sourcing input setup. Each of the channels can carry 1.0 A at 30 °C, which is 86 °Fs, and 0.5 A at 60 °C, which is 140 °F. Each channel has a separate OFF output delay of 1.0 ms, and the same goes for each ON output delay of 0.1 ms. The 1769-OB32 uses a 32-Bit register. When a MicroLogix 1500 controller is used to install the module, or when Studio 5000 / RSLogix 5000 Logix Designer is used, you can also assess this register using the RSLogix 500 programming software. Monitoring or I/O forcing can be enabled by assessing the module register.

The 1769-OB32 can use different wire sizes, like 22 - 16 AWG for stranded and 22 – 14 AWG for the solid wire to plug this module. Always ensure the mounting tabs are perfectly aligned before connecting to the backplane. You may install this module next to any other Compact I/O module.

Allen-Bradley's 1769-OB32 is a solid-state 24VDC Compact I/O module. This module is wired to offer configuration and has an operational range of voltage up to 20.4 to 26.4 volts DC, 0.5 milliseconds (on mode), or four milliseconds (off mode) of output delay time (off mode). The 1769-OB32 can dissipate 4.5 Watts of energy at its highest temperature and uses about 3000 mA at 5.1 volts. The 1769-OB32 module has an off-state leakage current of 1.0 mA and a minimum on-state current of 1.0 mA at 26.4 volts.

The 1769-OB32 has a maximum on-state voltage drop of up to 1.0 VDC at 1 Amp. It gives the highest current of 1.0 Amps per point at 86 degrees Fahrenheit, or 30 ° Celsius, and the maximum current per point at 60 degrees Celsius, which is 140 degrees in Fahrenheit. Moreover, the 1769-OB32 has a significant surge current of 2.0 amps for ten milliseconds, which keeps repeating every 2 seconds. It is a one-slot width module that is typically installed on a DIN rail or a mounting plate.

The module measures 118 x 52.5 x 87 millimeters (4.65 x 2.07 x 3.43 inches) and weighs about 450 grams or 0.992 pounds. It comes up with an IEC 6-module power supply distance with a class 2 reinforced insulator. Furthermore, this Allen's module, 1769-OB32, comes up with an elite terminal torque screw of up to 0.68 N-m, a stranded wire size of 22 by 16 AWG, and a copper wire that has a grasp solid size of 22 by 14 AWG.

ManufacturerIndustrial Automation / Allen-Bradley
BrandAllen-Bradley
Part Number/Catalog No.1769-OB32
Product Family:Compact I/O
Product LineCompactLogix
Product Type:Discrete Output Module
Module TypeDC Output Module
Input TypeDigital Output
Programming software:RSLogix 500, RSLogix 5000; Studio 5000
SoftwareRSLogix5000
Compatible controllers:MicroLogix 1500; CompactLogix controllers
Outputs32 Point
No. of Outputs:32
Shipping Weight2 pounds
No. of Groups:2
Shipping Dimensions8 x 8 x 5 inches
Power Supply Distance rating:8
SeriesA and B
Operating Voltage range:20.4…26.4V DC
Enclosure Open
Current per point:0.5 A @ 60 °C (140 °F) 1.0 A @ 30 °C (86 °F)
Wire Size (Solid)22 to 14 AWG
Wire size:(22…14 AWG) solid (22…16 AWG) stranded
Wire Size (Stranded)22 to 16 AWG
Wire type:Cu-90 °C (194 °F)
Replacement Terminal Block1769-RTBN18
Power Supply:1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Replacement Door1769-RD
Replacement door label:1769-RL1
UPC10611320915669
UNSPSC32151705
MountingPanel Mount or DIN Rail
Dimensions:118 x 52.5 x 87 mm (4.65 x 2.07 x 3.43 in.) Height with mounting tabs 138 mm (5.43 in.)
