The Allen-Bradley 2711P-T6C20D is a visualization part from the PanelView Plus 600 operator terminal product line. It has a touch interface, a 24VDC-powered gadget with 2 USB ports, RS-232, and Ethernet integrated.

The term "Human Machine Interface" (HMI) is more widely used to describe this technology, which is mostly utilized on factory floors to give operators a handy control and monitoring interface. It improves process accuracy, efficiency, and response time while also helping to reduce operational costs. Additionally, it reduces the likelihood of human error because operational specifics are accessible from a single spot.

Thanks to the use of color-scheme animations and representations, the 5.7-inch graphical screen can portray and replicate operations in amazing detail. In addition, the touchscreen input interface is more practical because it eliminates the need for process operators to memorize button mappings.

The panel or a relatively remote communication configuration mainly uses the inbuilt RS232 interface. The speed of RS232 ports tends to slow down with increasing cable length. The Ethernet port can be utilized for long-distance communication since it permits simultaneous communication with one or more controllers. Peripheral devices like keyboards and mice are typically inserted into the USB ports to provide operational flexibility.

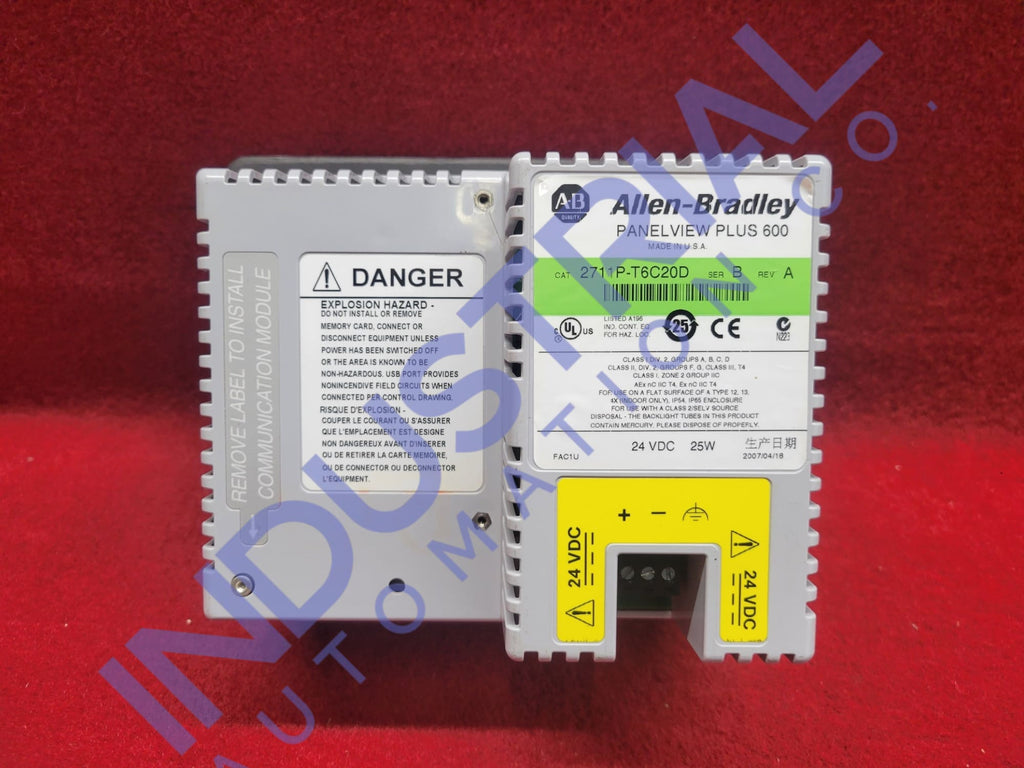

The Allen-Bradley 2711P-T6C20D is supplied by an external power source with a nominal supply voltage of 24 Volts and a voltage range of 18–32 Volts. Both flash memory and non-volatile memory is 64 MB in this Allen-Bradley module.

It is powered by DC. The voltage of this module should not be less than 18 volts DC or greater than 24 volts DC. This device's maximum energy consumption is 25 Watts. It can function in a vibrating environment at a peak vibration intensity of 2G and up to 57 Hz. Anything between 32 & 131 degrees F should be considered the operational temperature range. The recommended non-operational temperature range is -13 to 158 degrees F. Its RS-232, Ethernet, & USB communication connectors may also interact with other devices to receive data. This Allen-Bradley module can store all apps in 20 MB of application flash storage.

*The Allen Bradley 2711P-T6C20D has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711P-T6C20D units instead of migration.
