TECHNICAL SPECIFICATIONS

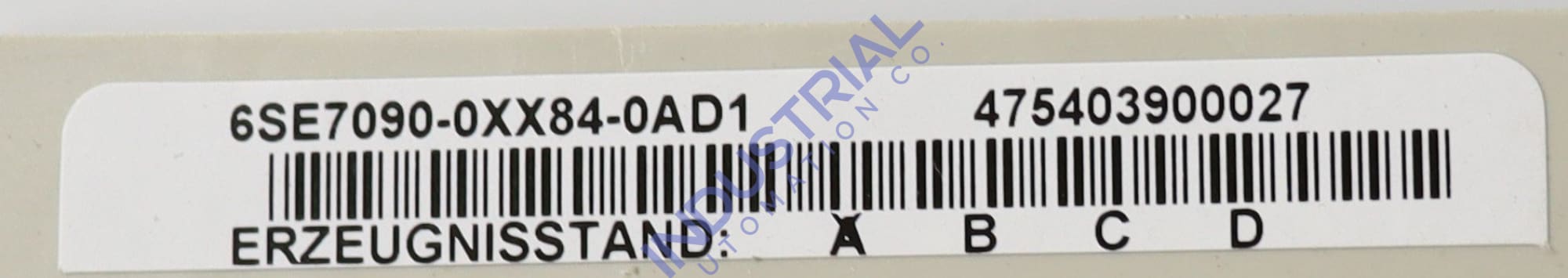

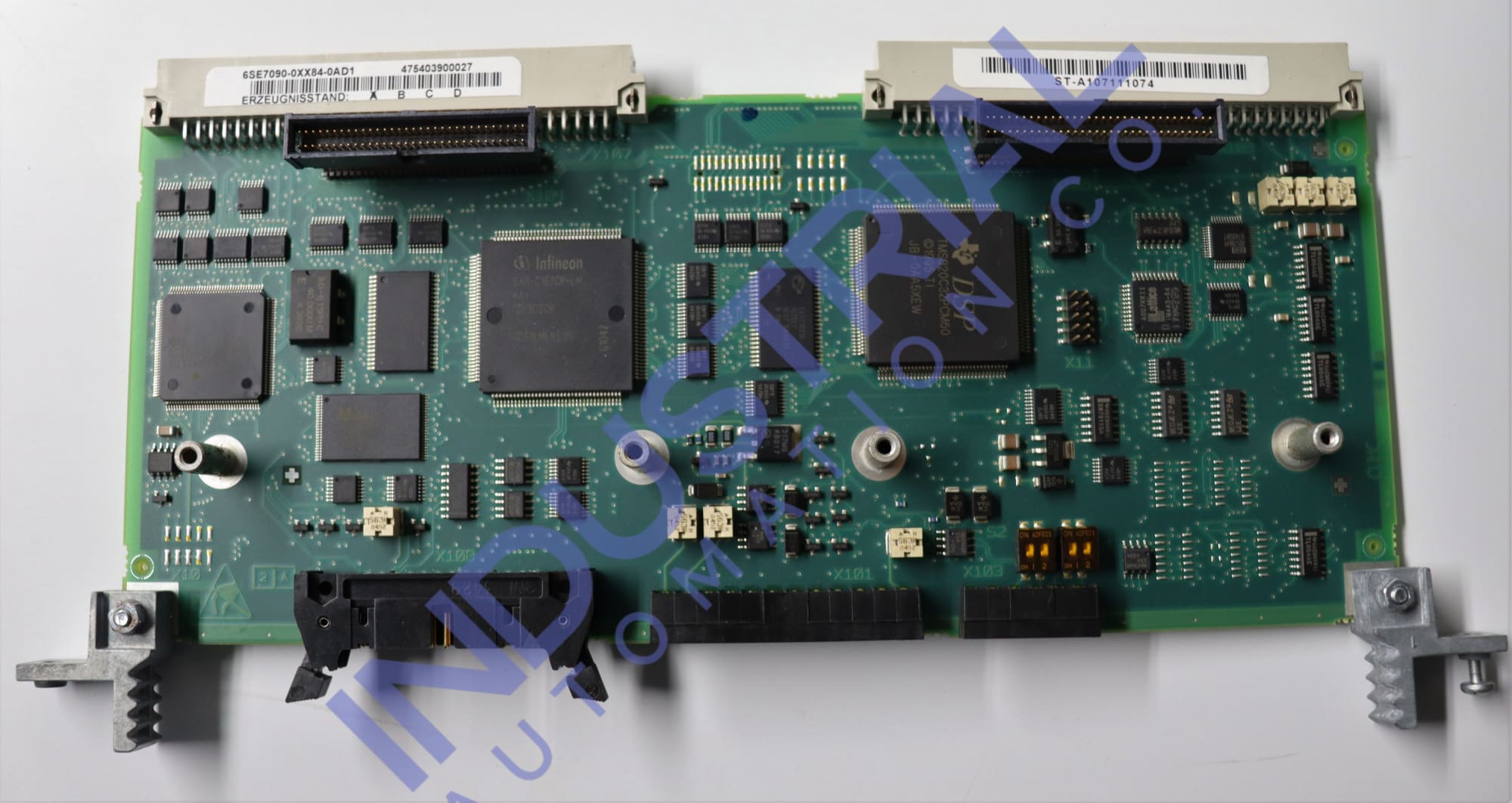

Siemens 6SE7090-0XX84-0AD1

The Siemens 6SE7090-0XX84-0AD1 Control Module is a high-performance, cutting-edge motion control device developed to meet the stringent requirements of industrial motor drives. This control module provides precise and dependable control for sophisticated motion control applications due to its extensive feature set and powerful functionality.

Technical Specifications:

The control module 6SE7090-0XX84-0AD1 provides adequate power for driving industrial motors by operating within a wide voltage current range. It has a power frequency of 50/60 Hz, making it compatible with typical electrical systems. It is meant to be space-saving and lightweight, with tiny dimensions and a weight of only 0.355 kg, allowing for easy integration into current settings.

This control unit's motion control module has a high-performance processing speed of 60 MHz, enabling quick and efficient execution of control loops. The 6SE7090-0XX84-0AD1 Control Module supports a variety of industry-standard communication protocols. It supports PROFIBUS DP and PROFINET communication for simple integration with Fieldbus networks.

The module is built to resist harsh industrial conditions. It offers adequate dust and solid object protection with an IP20 degree of protection rating. It is also CE, UL, cUL, RCM, and EAC certified, assuring conformity with industry standards and regulations.

Ambient Operating Conditions:

The temperature range for the control module is 0°C to 55°C. Keep the ambient temperature within the stated range to avoid overheating or damaging the module. When not in use, the control module should be stored between -4°F and 158°F. Keeping the module inside these parameters helps to preserve its integrity and prevents potential damage.

The recommended relative humidity range for operating the control module (non-condensing) is 5% to 95%. High humidity levels can cause moisture accumulation, which can impair module function.

Installation and Transportation:

The 6SE7090-0XX84-0AD1 system installation is typically simple, involving connection to the corresponding interface on the module. Ensure the system's power is completely disconnected before installation to avoid potential electrical hazards. The device should be installed in a dry, well-ventilated environment free of dust and corrosive gases.

Proper grounding and electrical connections must be established following Siemens' recommended procedures during installation. Any wiring or cabling required to integrate the 6SE7090-0XX84-0AD1 with other systems or components must be done with care per industry standards and applicable regulations.

The motion control unit 6SE7090-0XX84-0AD1 should be handled carefully during transportation to avoid impact, vibration, and high temperatures. Static electricity, like all electronic equipment, can pose a risk. As a result, it should be transported in anti-static packaging and handled with electrostatic discharge (ESD) precautions.

Use appropriate precautions during transportation to protect the motion control module from damage. Label the package with proper handling instructions and maintain proper documentation to ensure efficient logistics and tracking.

Safety Preventions:

The 6SE7090-0XX84-0AD1 model’s safety necessitates a comprehensive approach that includes proper installation, adherence to safety guidelines, regular maintenance, and employee training.

In terms of safety prevention, the module includes a number of features to ensure safe operation. It is short-circuit protected and has thermal protection to prevent overheating. The control module also meets international safety standards, ensuring the highest levels of safety and dependability.

Regardless of the module's safety features, follow the recommended safety guidelines when operating it. These include not operating the motion control unit in conditions other than those specified by the manufacturer, using appropriate cooling measures, and investigating any warning or error messages displayed by the device as soon as possible.

To minimize excessive heat around the 6SE7090-0XX84-0AD1 control module, provide adequate airflow in the installation area. Sufficient ventilation aids in the dissipation of heat generated during operation and assures peak performance.
