TECHNICAL SPECIFICATIONS

Siemens 6SN1123-1AA00-0EA2

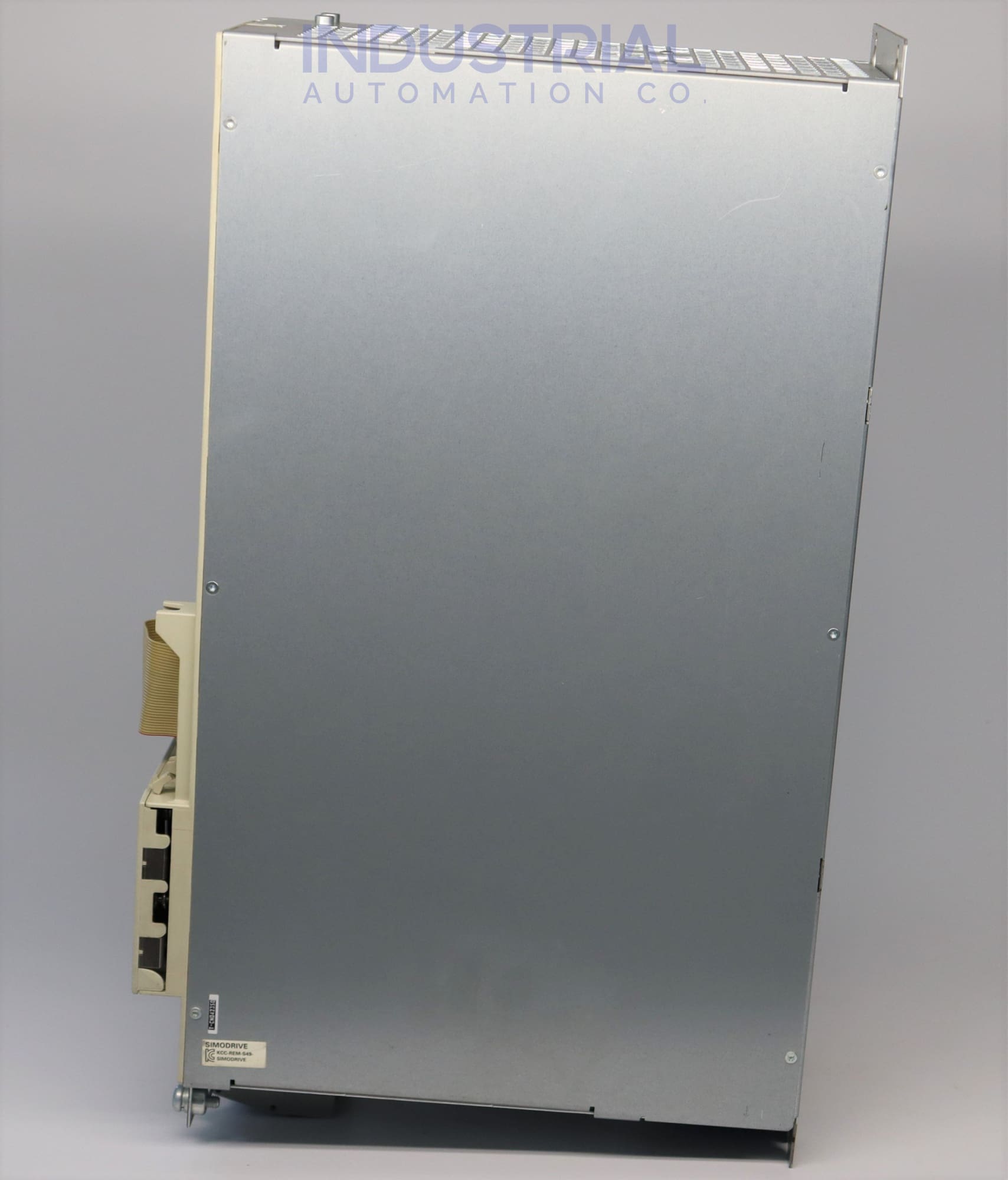

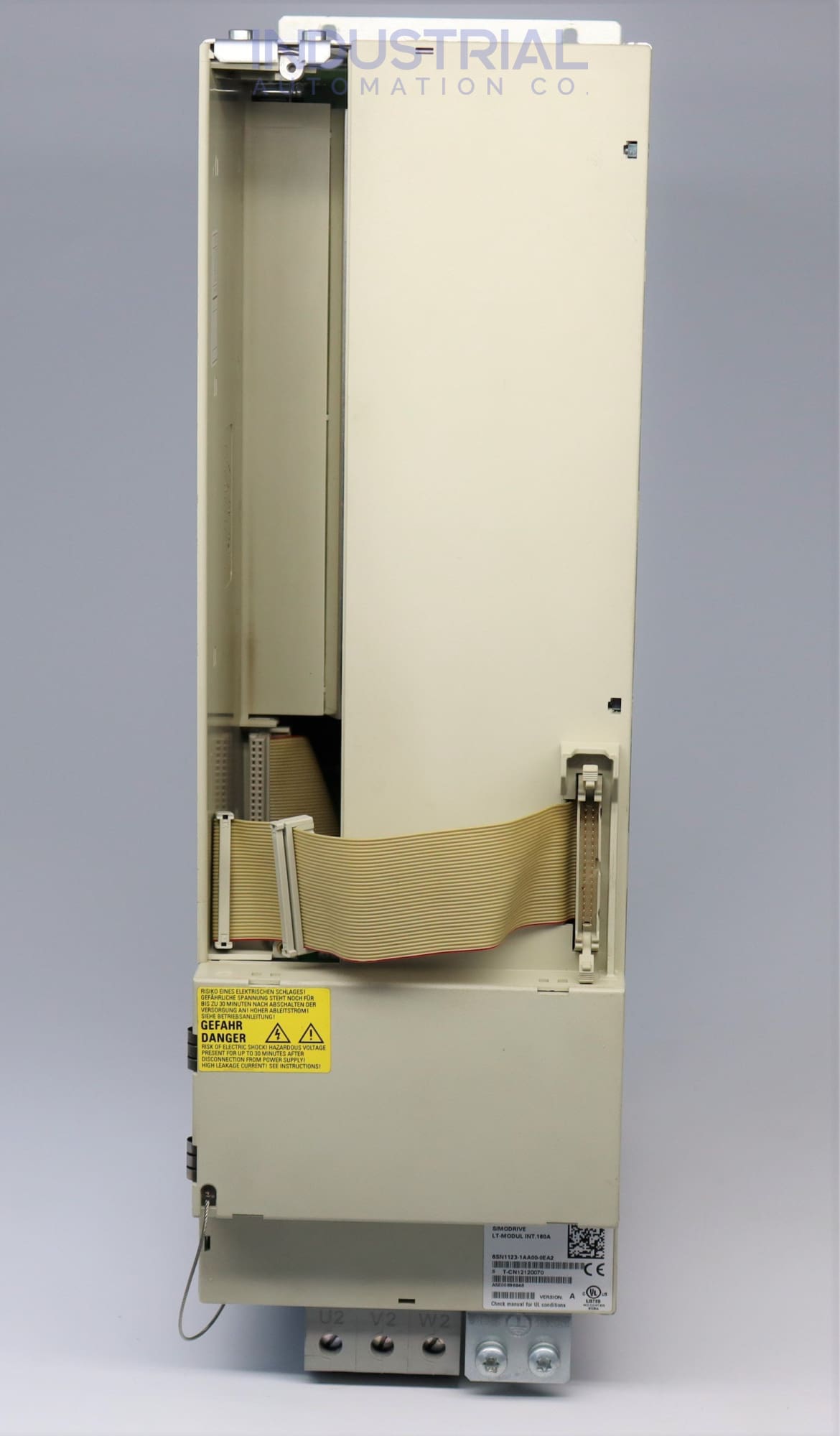

The Siemens 6SN1123-1AA00-0EA2 is a top-of-the-line single-axis power module engineered explicitly for integration into SIEMENS SIMODRIVE 611 series. This cutting-edge technology solution offers exceptional performance, particularly in challenging automation systems, and is the ideal choice for industries that demand precise and high-speed control. Built to exacting German engineering standards, this module exemplifies reliability, efficiency, and durability.

Technical Specifications:

Siemens power module 6SN11231AA000EA2 has been designed for use in high-performance industrial machinery. It has a one-axis module with internal cooling that can manage heavy-duty feed motors with rated currents of 56 A and main spindle motors with rated currents of 60 A. It weighs only 10.4 kg and has dimensions of 290 mm x 480 mm x 150 mm.

Because of its regulated output of 50 Amps and compatibility with a wide range of AC and DC motors, the 6SN1123-1AA00-0EA2 module is suitable for various industrial applications such as metalworking, woodworking, packaging, and food processing. These features enable the module to work with a wide variety of motors.

Furthermore, it operates at a direct current bus voltage of 600V and has a performance of 2x1.5 kW for motors in the 1FT6 series and 2 x 3 kW for motors in the 1FT5 series. Furthermore, it operates at a frequency of 50 hertz.

Operating Conditions:

The module's performance and lifespan can be improved by operating it under ideal conditions. This includes a non-condensing humidity ratio range of 5 % to 95 % and an installation temperature range of 0 degrees Celsius to 55 degrees C.

The module is optimized for continuous operation at 1000 meters above sea level altitudes. Performance may be affected beyond this limit. The equipment is designed for use in Pollution Degree 2 industrial environments, according to IEC 60664-1 standards.

Installation and Transportation:

The 6SN1123-1AA00-0EA2 power module is an easy-to-operate device that can be installed quickly and painlessly in appropriate cabinets. In order to ensure that there is sufficient heat dissipation, the device is compatible with horizontal mounting on DIN rails. As a servo module has an IP00 protection class, store it in an area that is dry and free of dust and moisture.

To protect the module from being damaged by mechanical shock and vibration while in transit, it must be carefully packaged. In addition, protect it from intense magnetic fields and transport it within the temperature range of -25 degrees Celsius to 70 degrees Celsius.

Safety Prevention:

Ensure optimal safety and performance of your 6SN1123-1AA00-0EA2 module with its advanced integrated safety features. This module boasts overvoltage, under voltage, overcurrent protection, and a built-in temperature monitoring system to prevent overheating and protect against potential electrical faults. It also comes equipped with safety isolation in compliance with EN 50178 / IEC 62103 / EN 61800-5-1. Always refer to the manufacturer's guidelines and documentation to ensure proper installation, operation, and maintenance.

For reliable and accurate functionality, following proper grounding and shielding protocols is crucial to minimize the risks of signal distortion and electromagnetic interference (EMI). Refer to the manufacturer's specifications to achieve proper grounding and shield measures.

Environmental factors play a vital role in the performance and lifespan of the 6SN1123-1AA00-0EA2 module. When installing the device, consider the ambient temperature, humidity, and other environmental factors to avoid excessive heat, moisture, or harsh environments that can compromise its performance.
