TECHNICAL SPECIFICATIONS

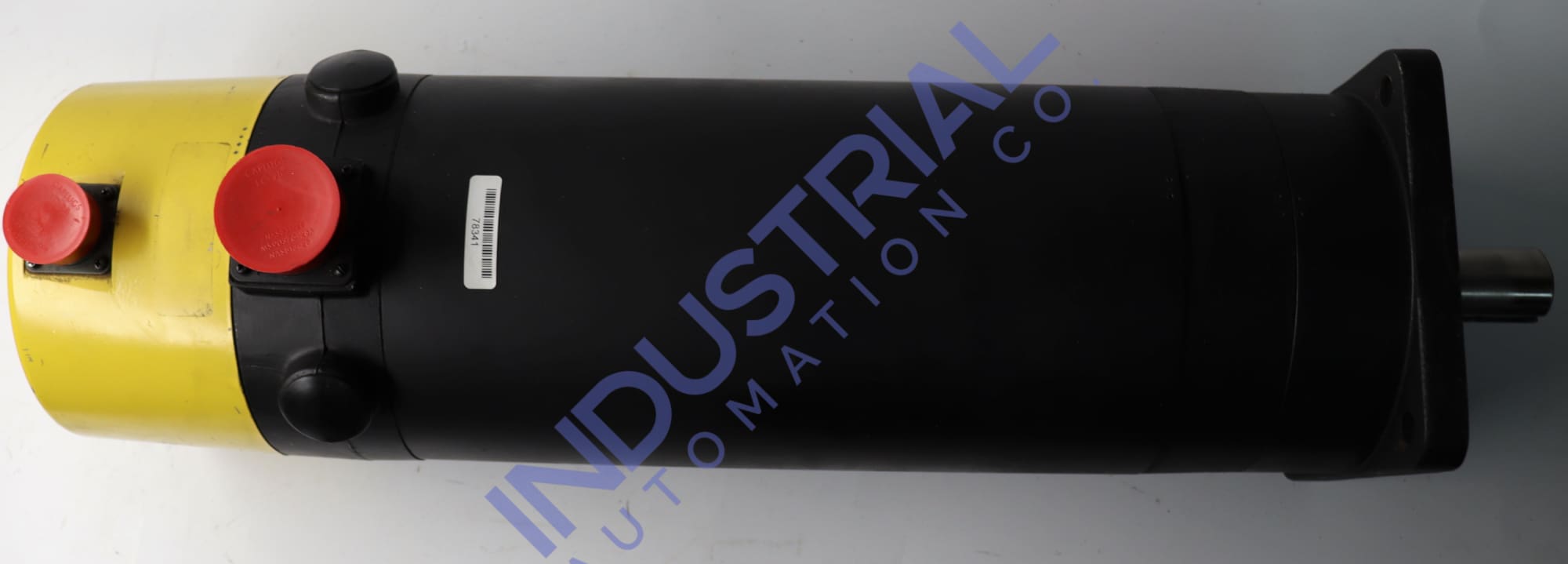

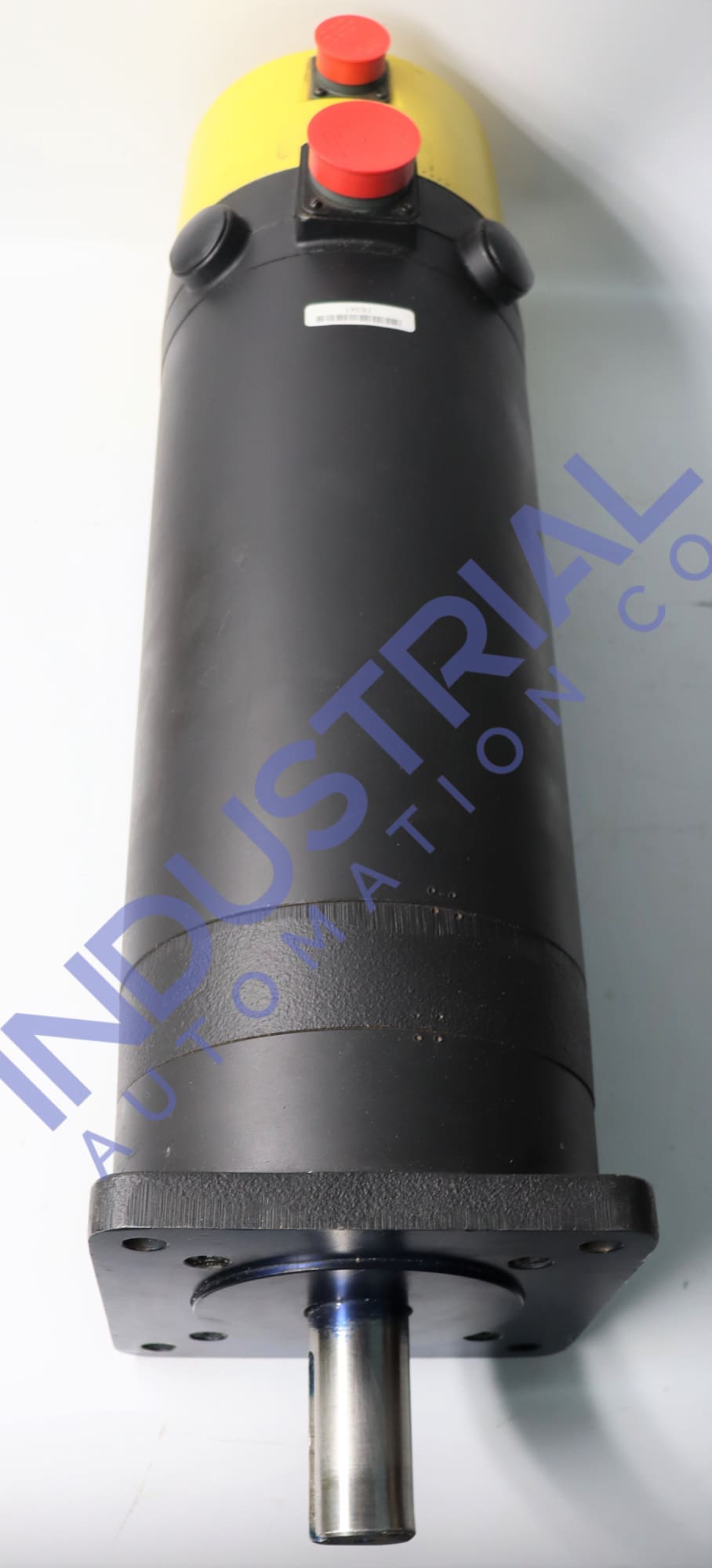

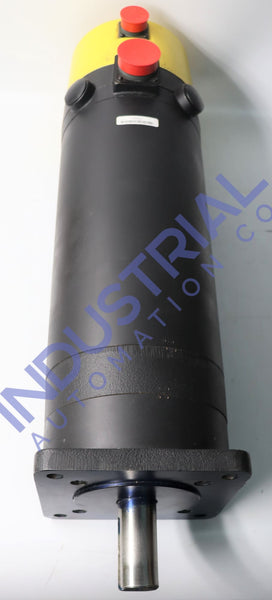

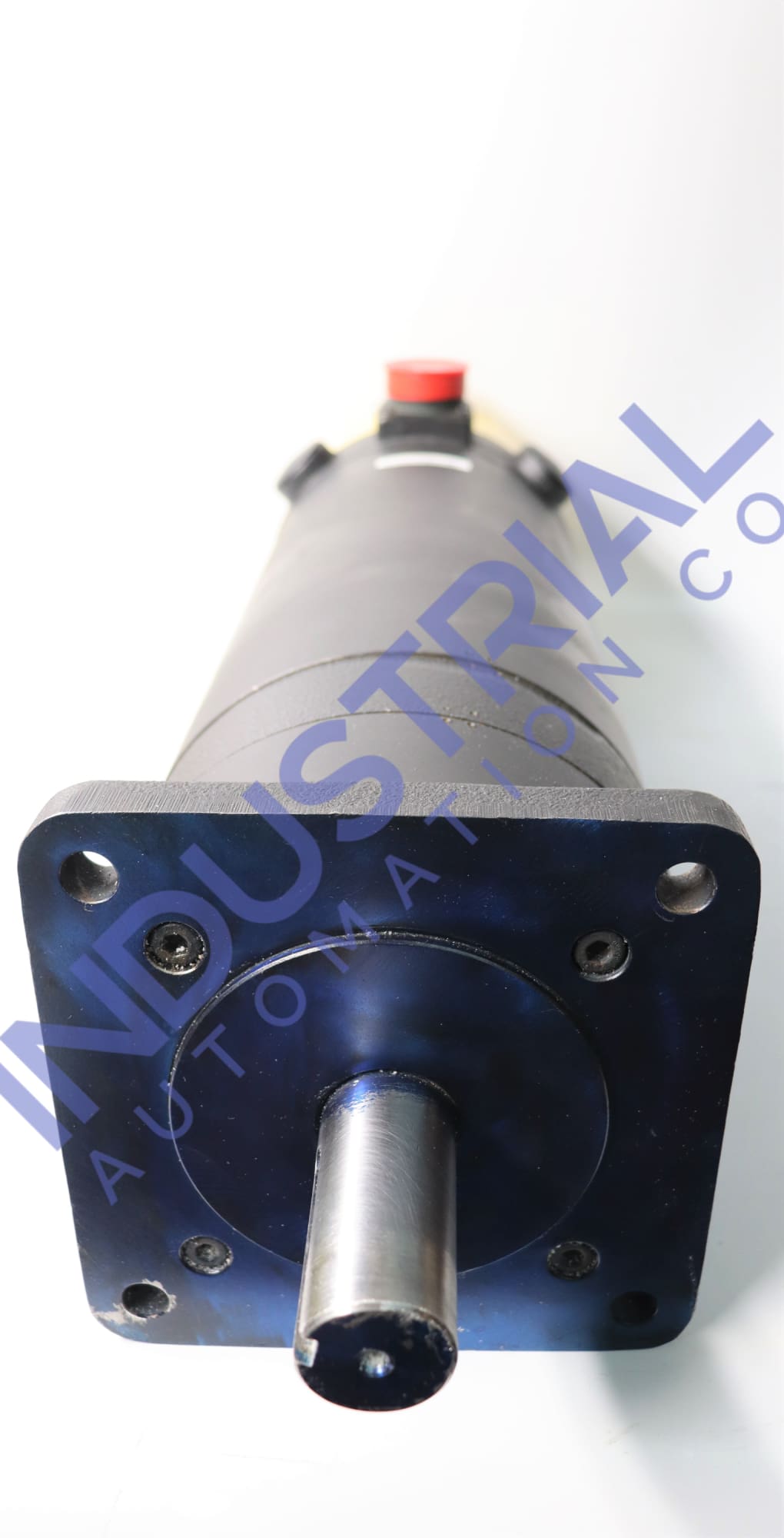

FANUC A06B-0653-B205

The FANUC DC servo motor A06B-0653-B205 provides an optimal solution for precise, high-speed positioning applications. With the replacement of traditional magnets with a neodymium ferrite magnet and reduced rotor inertia, this motor offers exceptional torque and acceleration.

Technical Description of A06B-0653-B205:

Equipped with a high€“resolution pulse coder as standard, the A06B-0653-B205 motor offers meticulous positioning control. Furthermore, an oil seal protects the shaft from external contaminants such as oil.

FANUC's superior waterproofing ambitions come to life with their sophisticated connectors and exclusive stator seal, which guarantee no liquid ever infiltrates the motor, making it a perfect choice for applications requiring utmost protection from coolants.

The A06B-0653-B205 model has been upgraded with an F Class insulation that improves the rotation's smoothness through a unique, optimized magnetic pole shape to minimize torque ripple.

The A06B-0653-B205 DC servo motor is designed to deliver enhanced performance and longevity through its lightweight, compact structure. To ensure the optimal reliability of each component, you must install it in a location with a vibration rate of acceleration/deceleration below 5 G (49 m/s2).

This DC servo motor is optimized with a holding brake and tapered shaft for seamless torque delivery. For the best outcome, it is crucial to have a skilled technician handle the installation and usage process.

For optimal performance, it is important to use the model with specified attachments and accessories. Additionally, make sure that the wire used has an optimized diameter for successful voltage transmission.

Ambient Conditions:

To ensure optimal functioning, the motor A06B-0653-B205 must be operated in an ambient temperature range of -10 to 40°C. Reduce the output power at higher temperatures to ensure you do not exceed constant thermal limits.

The A06B-0653-B205 motor can reach heights up to 1,000 m without additional precautions. Decrease the ambient temperature by degrees Celsius for every 100 m added in elevation to ensure an optimal operating environment at any height.

Ensure the A06B-0653-B205 motor stays between -20 °C and +60 °C for optimal performance. To guarantee maximum protection, store it indoors, away from dust particles and direct sunlight, in a dry area.

General Wiring and Handling Precautions:

The importance of properly connecting power wires to the terminal block cannot be overstated; incorrectly, it could lead to a devastating fire or dangerous shock. Ensure all connections are firmly fastened with specified torque and double-check that everything is secure €” this small action can prevent serious accidents from occurring.

Before connecting the A06B-0653-B205 motor to electrical components, all wires must be isolated from an energized source. Neglecting this precaution can put individuals at risk of electric shocks - making grounding the frame mandatory for safety purposes. Additionally, ensure secure and tight connections between the motor's terminal box and ground terminals to guarantee that no unexpected current flow occurs during operation.

When you handle motor A06B-0653-B205, be cautious and dress appropriately. Wear fitted safety shoes or gloves - this will help protect your hands from any sharp edges that may cut into them and guard against electric shocks. Furthermore, it is important to remember not to touch the motor with wet hands; failure to do so could be hazardous.
