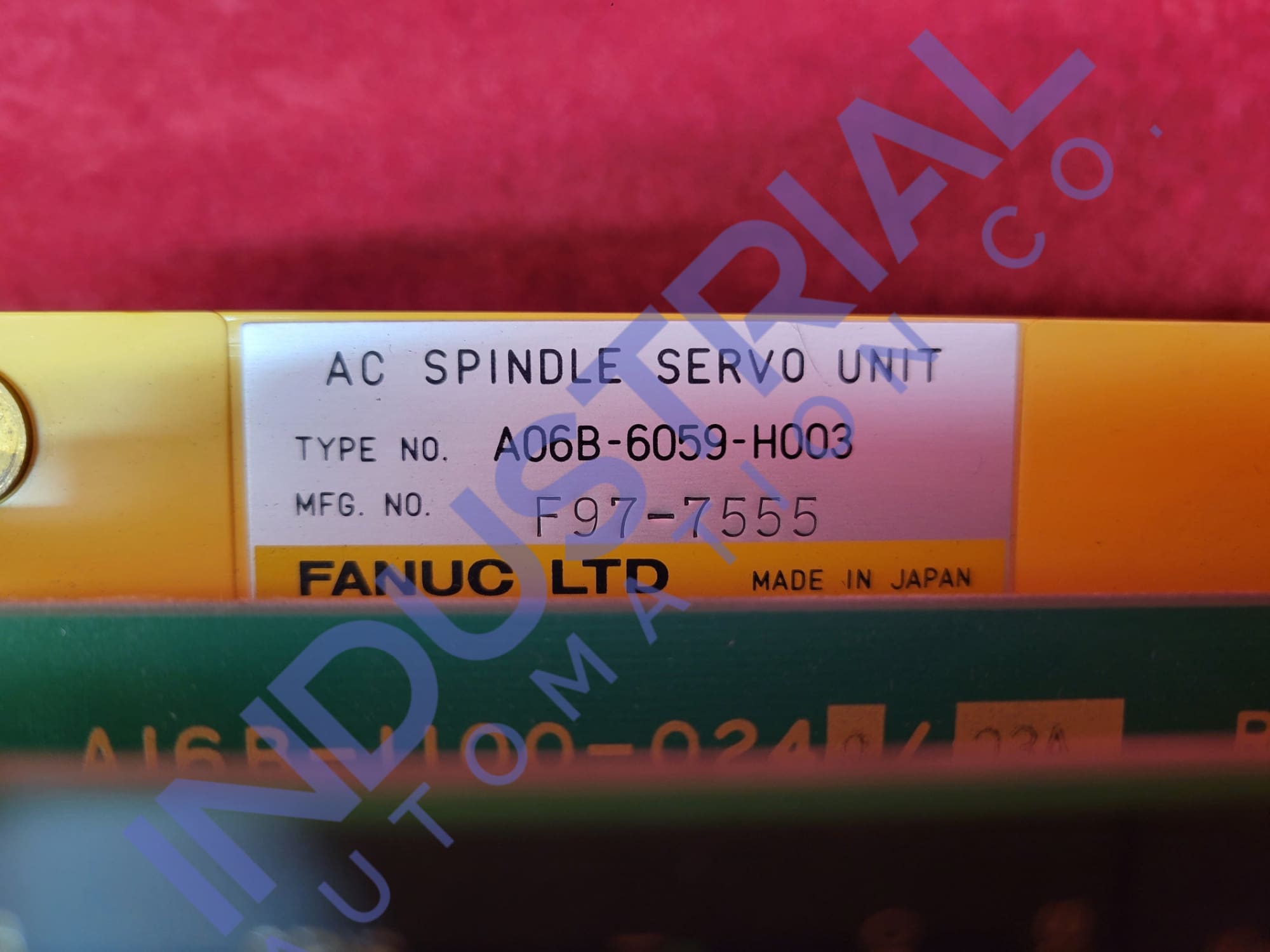

FANUC A06B-6059-H003

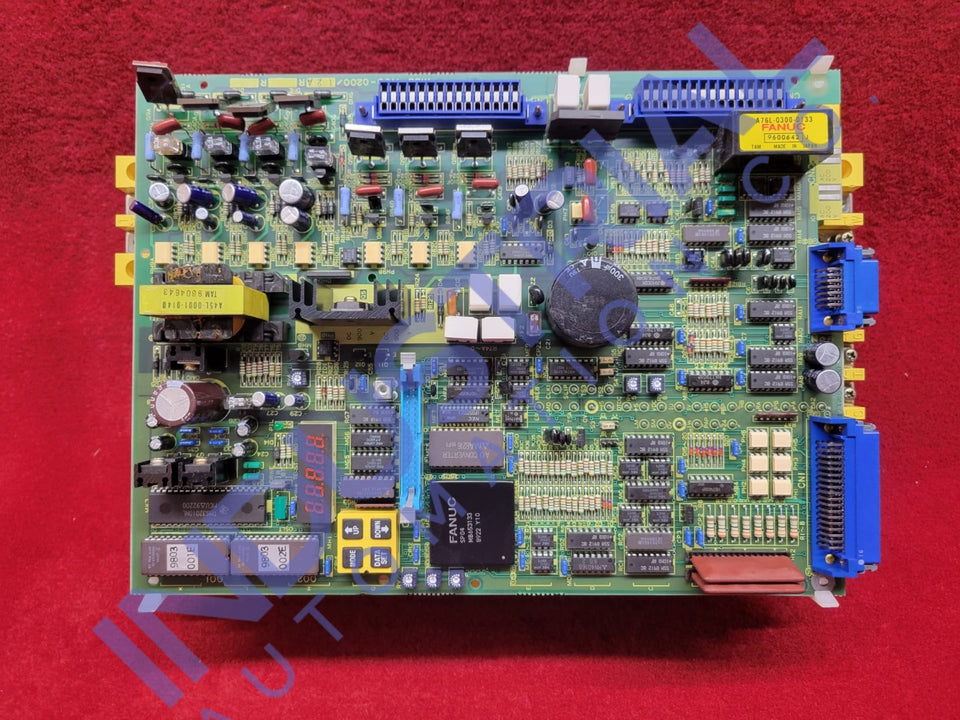

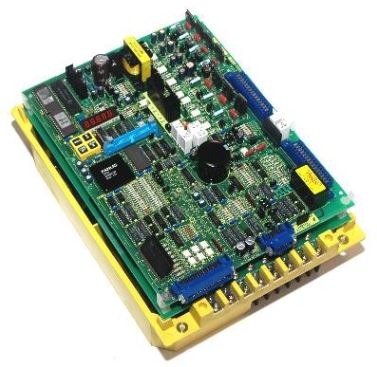

FANUC has designed and constructed this sophisticated AC digital spindle drive A06B-6059-H003, providing reliable performance for applications of all varieties. This spindle servo unit has an advanced overcurrent protector, ensuring secure and efficient operation.

Technical Description of A06B-6059-H003:

The model A06B-6059-H003 offers reliable performance and nine kVA of power over a 30-minute window, perfect for your most strenuous operations.

This A06B-6059-H003 AC Digital Spindle Drive is a powerhouse motor drive system, delivering precise control over torque and rotational speed. Its frequency allowance is 50 to 60 Hz with an impressive +/- 1 tolerance range.

This drive system offers a streamlined setup, user-friendly operation, and accurate motion control for increased performance. Its advanced features provide reliable repeatability to enhance productivity.

Optimize model A06B-6059-H003 for a 3-phase power supply at 200, 220, or 230 V AC. A fan motor with precisely tuned wind speed cools its spindle control unit.

Regular maintenance, such as vacuuming the nearby resistor and other parts around a cooling fan mounted on the servo unit, is recommended after extended use to maintain optimal performance.

Measure the Speed feedback signal using an oscilloscope when the power supply is activated, and the motor is not running.

Incorporate a power source well above the maximum load requirements to ensure no complications from voltage drops. To ensure optimal performance, the model requires a trained professional to be responsible for its installation and usage.

Ambient Conditions (Operating, Storage, and Installation):

To ensure optimum performance, the model A06B-6059-H003 must be kept indoors in an area free from direct sunlight and moisture. The temperature range for storage should remain between -20 °C to +60°C or risk possible damage due to environmental conditions. It would be best to eliminate dust particles by storing them inside, away from outdoor elements.

The A06B-6059-H003 model performs efficiently at a maximum height of 1,000 meters above sea level with no modifications necessary. However, to compensate for changing temperatures as you ascend higher than this threshold point, an extra degree decrease should be allowed per every 100-meter increase in altitude.

To ensure the optimal functioning of the model A06B-6059-H003, it is important to abide by a temperature range between 0-40°C. Exceeding this limit can decrease performance; therefore, regulating output power when necessary will help maintain constant temperatures and desired results.

General Connections Instructions and Precautions:

Ensure the protective earth is properly attached to the connection terminal before powering up. For optimum safety, use a protective earth with a capability comparable to or greater than the circuit breaker capacity of your feeder system.

Ensure a safe connection by starting with the protective earth, then attaching the power cable. Check for proper phase connections when plugging into three-phase AC spindle servo units; otherwise, your cooling fan motor won't have enough energy.

Ensure proper dress when dealing with the A06B-6059-H003 servo drive. You should wear safety shoes and gloves to avoid potential cuts or shocks from edges, protrusions, or electric current. It is important not to come into contact with a wet hand as it poses an imminent risk of harm due to electrical hazards.
