TECHNICAL SPECIFICATIONS

FANUC A06B-6093-H101

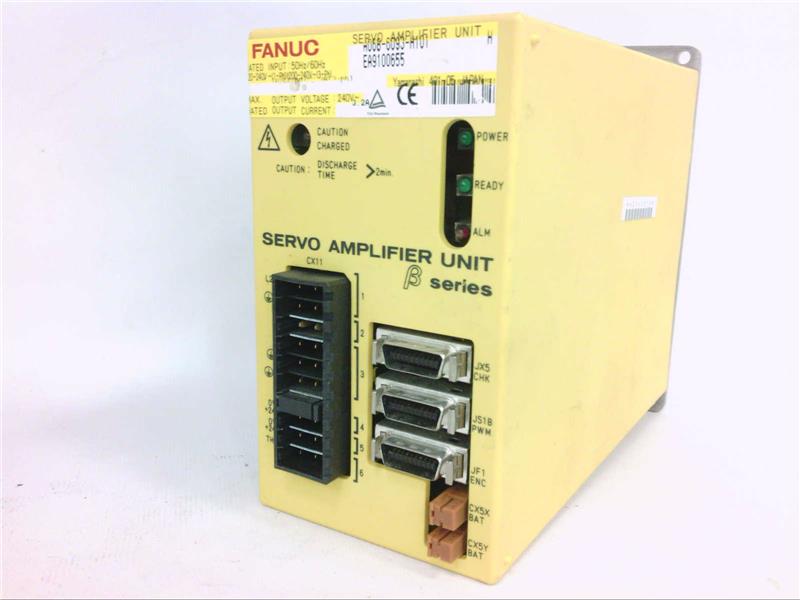

The powerful FANUC A06B-6093-H101 servo amplifier module is at the cutting edge of industrial motion control technology. Engineered to provide superior performance in a wide range of applications, this Beta series model boasts advanced features such as high-speed response, precise accuracy, and rock-solid reliability for optimal operational efficiency and cost-effectiveness.

Industrial manufacturers have been drawn to the A06B-6093-H101 Beta Servo Drive MDL SVU-12, Type B Interface.

Technical Specifications of A06B-6093-H101:

The A06B-6093-H101 servo amplifier module offers abundant power, providing up to 10kW output. Most power sources can operate this engineered industrial machine.

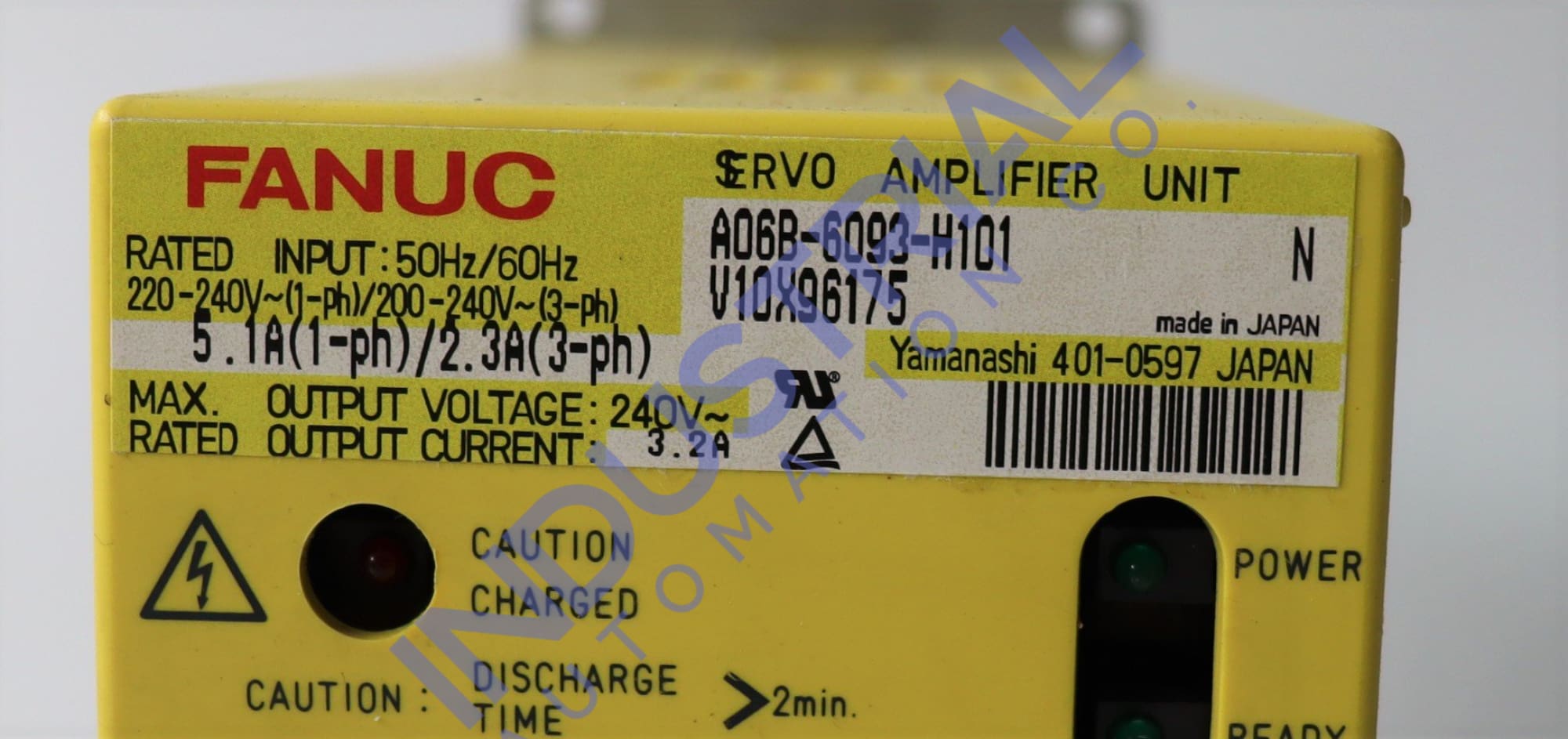

The A06B-6093-H101 servo amplifier module boasts an impressive 3.2 Amps of rated output current, providing reliable and efficient operation for a servo system. Its support for various communication protocols, including RS-232C, RS-422, and FSSB, seamlessly integrates with different control systems and devices.

The A06B-6093-H101 servo amplifier module is a powerful tool for precision motion control in industrial settings. This device ensures that air flows consistently throughout the unit.

Not only does this keep the system cool, but it also enables reliable and safe operation. Furthermore, this module includes features that protect against overcurrent, overvoltage, and under-voltage.

With all these features working together, the A06B-6093-H101 offers high-performance and efficient operation for various industrial applications.

Ambient Conditions for Beta Servo Amplifier Module:

The A06B-6093-H101 servo amplifier module is an advanced device that requires careful attention to its environmental specifications for top-notch performance.

Operating under the ambient temperature of 0°C to 55°C, this device can function efficiently in most industrial settings. But storage and transportation should not exceed temperatures of -20°C to 60°C.

During operation, the temperature fluctuation should not exceed 1.1°C per minute, which might adversely affect the module. It is also essential to ensure the humidity level is between 30% and 95% RH without condensation.

The device's altitude should not exceed 1000 meters above sea level, and it should be subjected to no more than 0.5 G of vibration during operation to safeguard its components.

Keeping corrosive and conductive vapors away from the circuitry and cooling fins is also critical to prevent performance degradation. Observing these specifications will maintain the dependable functioning of the servo amplifier module in industrial applications.

Safety Instructions:

Keeping adequate clearance during installation is crucial for the optimal operation of this servo amplifier module. The accompanying drawings provide recommended distances to adhere to.

It's best to avoid stacking amplifiers directly on top of one another - staggering them can help prevent overheating and maintain peak performance.

Protecting the A06B-6093-H101 servo amplifier module from harmful substances like dust, coolant, and corrosive gas is essential to keep it functioning at its best.

One effective way to do this is to place it in a secure cabinet to shield it from radiation and other hazardous elements.

Key Components:

The A06B-6093-H101 servo amplifier module is a critical piece of machinery comprising two essential internal boards.

The A20B-2002-0321 board is the pulse master that drives the servo motor precisely and accurately. In contrast, the A20B-2100-0132 board helps bridge the communication gap between the control unit and the servo amplifier module. These boards work together seamlessly, ensuring the proper functioning of the entire module.
