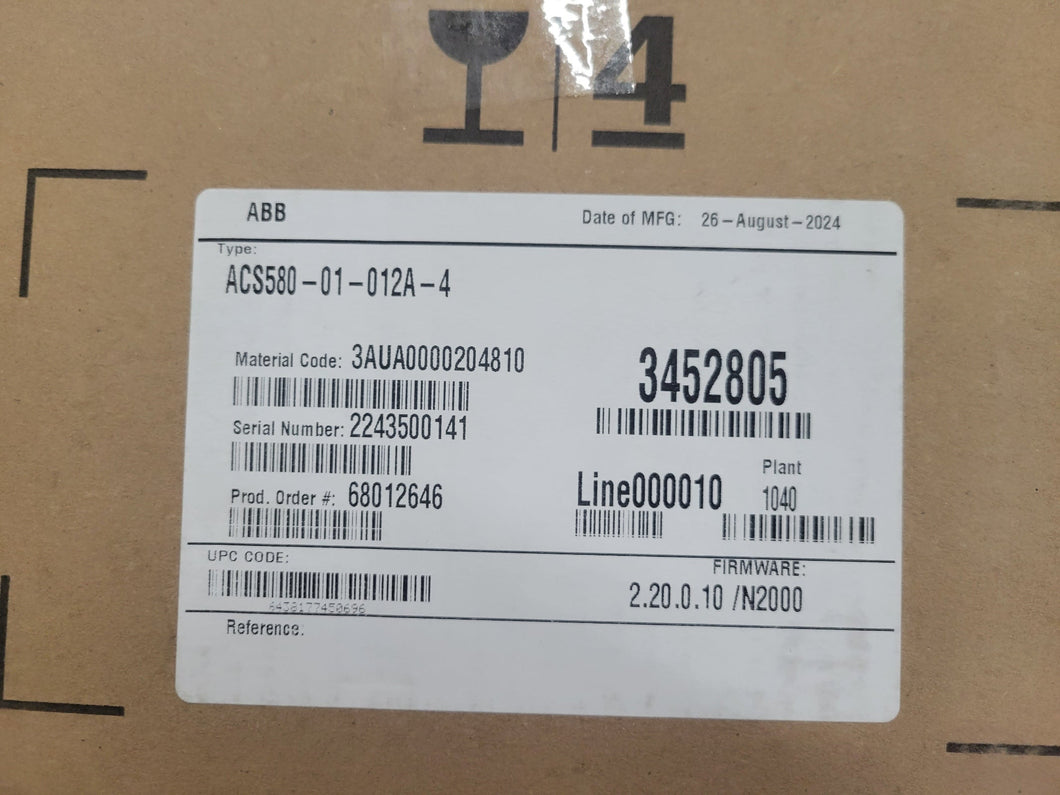

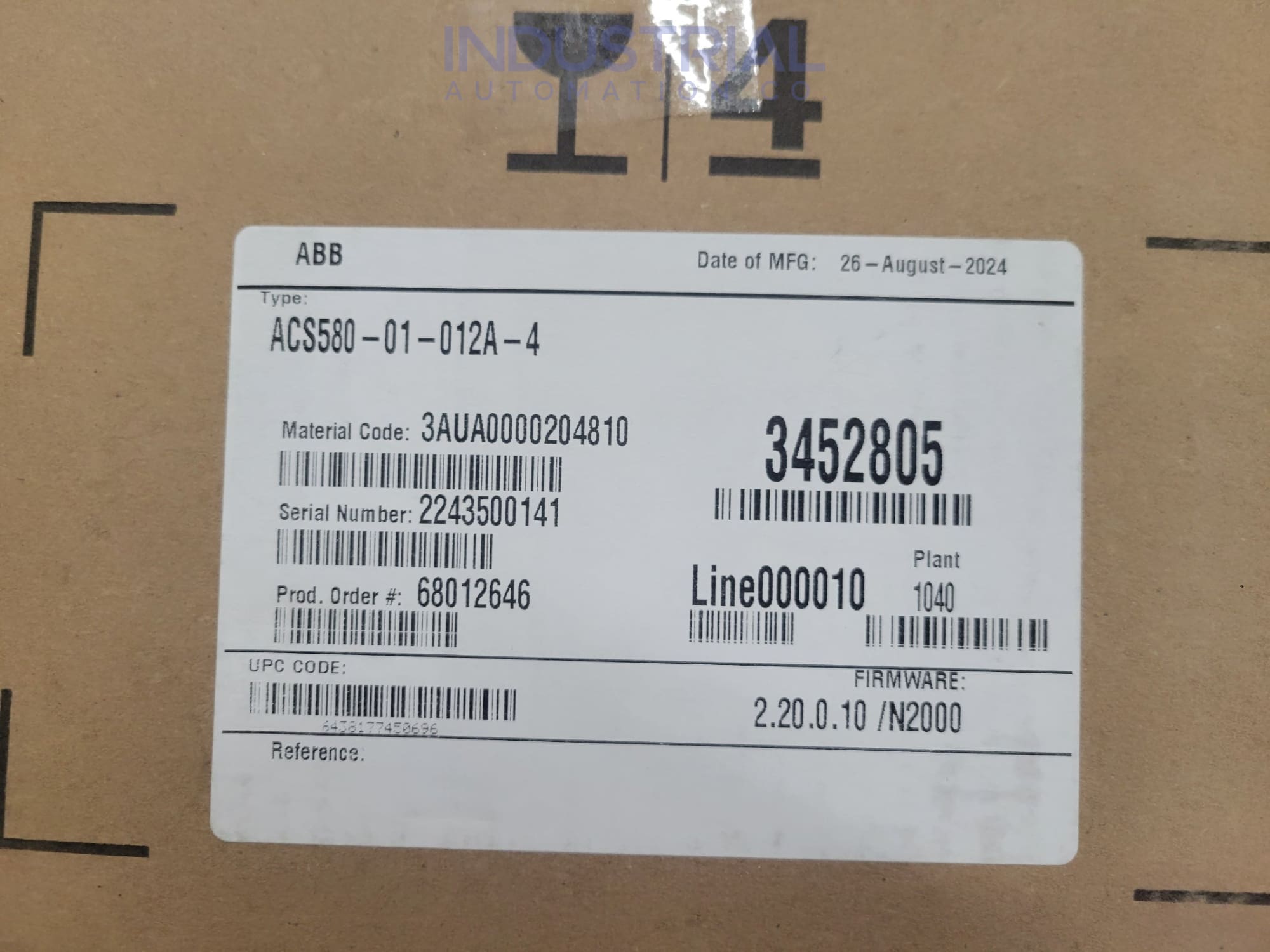

ABB ACS580-01-012A-4

Abb Acs580-01-012A-4

All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Review our Product Conditions notice here.


Regular price
Sale price
$1,390.00

Product Description
Drives, ACS580 Series
Drive, AC, 5.0HP, 480V, 7.6A, CT, N1

ACS580 Series Information

  • AC Drive
  • Built for Harsh Conditions
  • Intuitive User Interface
  • IP55
  • Can be Used for Commercial Applications

The ABB ACS580-01-012A-4 drive offers efficient, high performance and reliable operation in demanding industrial applications, thanks to active rectifier technology and real-time adaptive control. It delivers dynamic torque up to 130% in 0.5 Hz increments and high overload capabilities up to 300%. It also automatically adjusts motor parameters for optimal performance, helping to reduce energy cost. A robust and reliable solution for motor control.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.


TECHNICAL SPECIFICATIONS

ABB ACS580-01-012A-4



The model ACS580-01-012A-4 is a variable frequency drive (VFD) manufactured by ABB - a prominent provider of power and automation technologies. This particular VFD skillfully regulates the speed of an AC motor, increases its overall efficiency, and enhances its proficiency further with advanced features and flexible connectivity options.

Technical Specifications:

The drive ACS580-01-012A-4 is designed to control alternating current (AC) motors. It can handle motor power ratings of up to 7.5 kW when powered by a supply voltage of 200-240 VAC (10 hp).

The VFD is 373 x 125 x 223 mm (H x W x D) and weighs roughly 4.6 kg. The VFD has a maximum heat dissipation rating of 200 watts, allowing it to function across a wide temperature range.

The drive has a maximum output current of 15.3 A and a current input of 12 A. It offers a 3 KW light-duty and 2.2 KW heavy-duty power output. It has a 4.8 KVA apparent power output.

The variable drive (ACS580-01-012A-4) has a rated voltage of 600 V and a nominal current output of 12.6 A. The minimum resistance of this R1 frame-size drive is 52 ohms, while the maximum resistance is 104 ohms.

Operating Conditions:

This drive is a versatile, reliable solution for various industrial applications. The product thrives in diverse settings with varying temperatures. This device functions seamlessly within temperatures ranging from -15°C to +40°C and guarantees excellent performance.

However, exceeding 40°C may affect the VFD's performance, making it essential to monitor temperature levels. The VFD (ACS580-01-012A-4) can withstand vibration levels up to 0.7 mm (peak-to-peak) at frequencies between 5 and 8 Hz and up to 5 g at frequencies between 8 and 500 Hz.

Additionally, it can perform optimally at altitudes up to 1000 meters above sea level, but operating it beyond this limit can affect its performance.

Installation and Transportation:

Proper installation and transportation of the ACS580-01-012A-4 variable frequency drive (VFD) ensures its safe and reliable operation. Protecting the VFD from physical damage and extreme temperatures is essential during transportation. The VFD should be shipped in its original packaging and stored and transported in a dry, cool, well-ventilated area to achieve this.

One of the most crucial safety factors is preventing electrical shock hazards, achieved by properly grounding the VFD. Additionally, the ACS580-01-012A-4 VFD must be protected adequately to prevent damage from moisture and other environmental contaminants such as dust and debris. Finally, connect the VFD's built-in EMC filter to the motor and power supply cables to limit electromagnetic interference.

Safety Precautions:

Properly grounding the ACS580-01-012A-4 Variable Frequency Drive (VFD) and all associated equipment is crucial to avoid electrical shock hazards. Installing and operating the VFD in a well-ventilated area is also crucial to prevent moisture buildup and overheating.

To prevent accidental energization, ensure that all power sources are correctly disconnected and locked out while working with the VFD. Only qualified electricians should install, operate, and maintain the VFD, and all wiring must comply with applicable electrical codes and regulations.

Avoid touching any sensitive electrical components or terminals when the drive is on, which can lead to electrical shock hazards. It is imperative to exercise caution when setting up, operating, and maintaining VFD ACS580-01-012A-4 or other equipment to prevent any potential damage.
