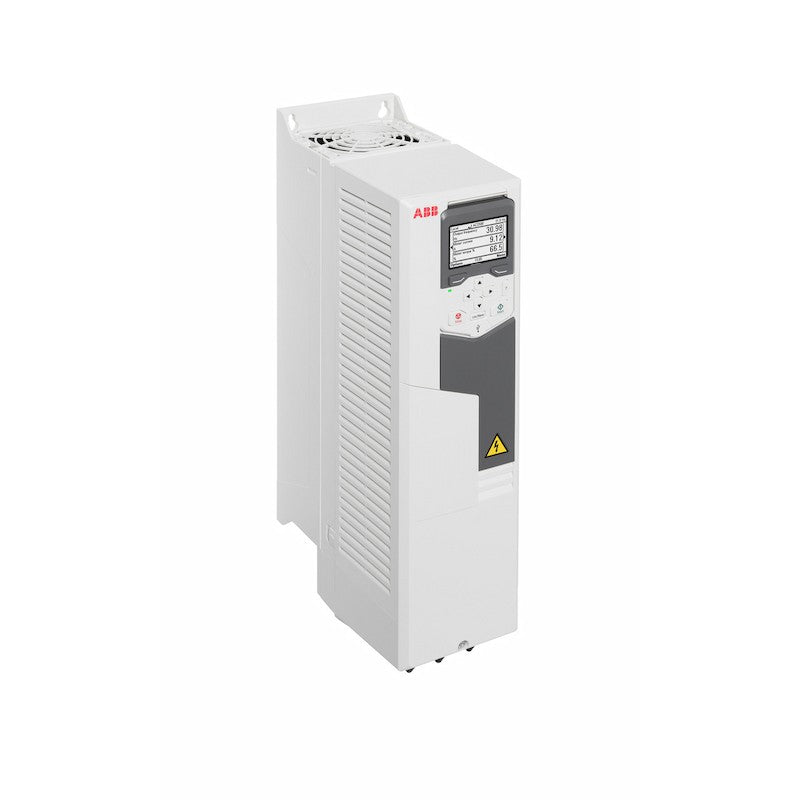

ABB ACS580-01-023A-4

Abb Acs580-01-023A-4 Adjustable Frequency Ac Drive

All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Review our Product Conditions notice here.


Regular price
Sale price
$2,007.42

Product Description
Drives, ACS580 Series
Item # ACS580-01-023A-4
Drive, AC, 10HP, 480V, 14.0A, CT, N1

ACS580 Series Information

  • AC Drive
  • Built for Harsh Conditions
  • Intuitive User Interface
  • IP55
  • Can Use for Commercial Applications

The ABB ACS580-01-023A-4 is an efficient and reliable drive system designed for use in industrial motors. It has an output voltage of 400-500V and a power capacity of 23 A, allowing for optimal control of various operating conditions. With its intelligent control algorithms, it helps to reduce energy consumption and maximize energy efficiency.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.


TECHNICAL SPECIFICATIONS

ACS580-01-023A-4



The ACS580-01-023A-4 model is a cutting-edge drive system for various commercial and industrial applications. The ease of design and execution of this system symbolizes its high levels of performance, dependability, and efficiency.

Technical Specifications:

The ACS580-01-023A-4 variable frequency drive is three-phase and single-phase compatible. This system's maximum operating frequency is 500 Hertz, and its output rating is 10 HP for heavy-duty applications and 15 HP for light-duty use (Hz).

The model is a VFD system designed for commercial and industrial applications. It can handle AC input voltages ranging from 200 to 480 volts at frequencies ranging from 48 to 63 hertz in single-phase and three-phase setups. The system can withstand an input current of up to 30.5 amps without overheating.

This VFD (ACS580-01-023A-4) saves room because of its 200 mm height, 125 mm width, and 195 mm depth. The system's modest weight of 6.48 kilograms makes it easy to move and set up. The system's enclosure is also IP20 certified.

The drive can take up to 23 A maximum input current and 25 A nominal output current. The R2 frame size drive generates 342 W of heat, necessitates 59 CFM of airflow, and produces 64 dB of noise. The resistance ranges from 22 to 52 ohms.

Operating Conditions:

Because it can operate in temperatures ranging from ten to fifty degrees Celsius, the model (ACS580-01-023A-4) can be used in various industrial settings. We do not recommend using the system in temperatures as low as -10 degrees Celsius.

The system can handle 1g of vibration, which is considered moderate. Furthermore, the system can operate normally at altitudes of up to 1000 meters above sea level without degradation in performance or dependability.

The ACS580-01-023A-4 model can function in dry conditions with humidity levels ranging from 5% to 95%. As a result, the system is an excellent choice for applications where relative humidity varies greatly, as it may be employed in humid environments.

Installation and Transportation:

During installation and travel, keep the model ACS580-01-023A-4 variable frequency drive system functioning smoothly and dependably. The system should be installed and transferred with care to avoid damage and extend the system's usable life.

The VFD must be installed in a clean, moisture-free environment, away from heat or steam sources. Ensure that you install the system on a surface that is level and free from vibrations.

Please handle the drive carefully during transportation and ship it in its original packaging to prevent damage. Keep the temperature between -25 and 70 degrees Celsius to keep the drive working.

Connect the protective earth connection of the system to the ground and make all other electrical connections following the wiring diagrams provided in the user manual. Ensure you use shielded wires for all motor and control connections to avoid electromagnetic interference.

Safety Precautions:

The ACS580-01-023A-4 variable frequency drive system includes numerous safeguards to keep it and its users safe. Please turn off the power to the system before servicing it to avoid electrocution. As a result, technicians will be less likely to be injured by an electrical current.

Never open the enclosure while the system runs. It protects individuals from potentially hazardous live electrical components.

Only authorized individuals with the necessary skills and experience with electrical systems should connect the system's input and output terminals. To keep the drive (ACS580-01-023A-4) in functioning order, avoid exceeding the maximum current or voltage. Moreover, users must use the system only within its intended parameters.
