ABB ACS580-01-052A-6
All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Review our Product Conditions notice here.
ACS580 Series Information
- AC Drive
- Built for Harsh Conditions
- Intuitive User Interface
- IP55
- Can Use for Commercial Applications

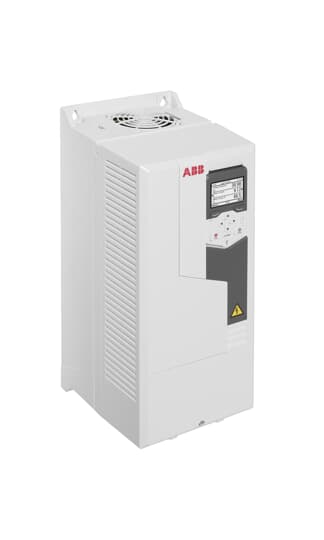

The ABB ACS580-01-052A-6 is a variable speed, middle voltage inverter that is designed for reliable and efficient operation. It is equipped with advanced control system technology to ensure maximum performance, energy savings, and reduced downtime. With its adjustable speed drive, the inverter offers high levels of torque and precise control.
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
TECHNICAL SPECIFICATIONS
ABB ACS580-01-052A-6
The ACS580-01-052A-6 VFD is a remarkable modern technology offering superior control and efficiency for industrial applications. Its advanced engineering enables optimal motor performance with minimal energy usage, creating reliable systems that are both powerful and cost-effective.
Technical Specifications:
The ACS580-01-052A-6 model supports multiple power supply configurations and operates within a voltage range of 380 to 500 volts, providing versatility and adaptability in various industrial situations.
ÂIt has an input current rating of up to 52A amps, allowing it to manage significant power loads comfortably. Its output current rating of up to 74 amps guarantees accurate and dependable power transmission to the attached motor.
The drive offers a low-duty power output of 50 horsepower and a heavy-duty output of 40 horsepower. The ACS580-01-052A-6 model has a space-saving and compact design. Its proportions of roughly 28.83 inches in height, 7.99 inches in width, and 11.6 inches in depth, together with its light weight of 63 pounds, make it appropriate for installation in restricted spaces without compromising maintenance and servicing accessibility.
This variable frequency drive has a total heat dissipation of 1024 W, an airflow of 139 m3/h, and a noise output of 63 decibels. The minimum resistance is 6.5 ohms, and the maximum is 21 ohms.
Operating Conditions:
Because it can function dependably throughout an ambient temperature range of -10 degrees Celsius to +50 degrees Celsius (14 degrees Fahrenheit to 122 degrees Fahrenheit), the ACS580-01-052A-6 VFD is an excellent choice for use in a wide variety of industrial situations.
Its resistance to mechanical vibrations also ensures steady performance up to 1.0 mm/s and 2.5 mm/s, insulating the device from neighboring operations that may create disturbances. You can measure these speeds in millimeters per second.
This model allows for non-condensing operation between 5 percent and 95 percent at altitudes up to 1000 meters (3281 feet) above sea level for optimal results despite changing conditions or environmental variables. This model has an operating range of between 5 percent and 95 percent in humidity levels.
Installation and Transportation:
When transporting and storing the drive ACS580-01-052A-6, keep it between -40 degrees Celsius and +70 degrees Celsius (-40 degrees Fahrenheit and 158 degrees Fahrenheit). It must protect its components from potential damage caused by temperatures that are too high or too low.
When installing a variable frequency drive (VFD), it's important to consider several factors. These include traveling conditions (cleanliness and proper ventilation), grounding techniques (as described in the handbook), and mechanical stress risk reduction achieved by mounting on a sturdy surface. Adhering to these guidelines will give optimal performance reliability while the system operates, ensuring the user's long-term usage.
Safety Precautions:
Maintain your safety and the optimal functioning of the ACS580-01-052A-6 variable frequency drive by following specified rules. Wearing suitable personal protective equipment, such as gloves and eye protection, when doing any installation or maintenance activities, and disconnecting the power supply to the drive before completing these actions, are all part of this.
Adhering to local electrical requirements during ground wiring and connections and maintaining appropriate ventilation surrounding the VFD unit prevents airflow holes from clogging. With proper respect to these regulations, you may be assured of a safe working environment while preserving optimal operating conditions.
