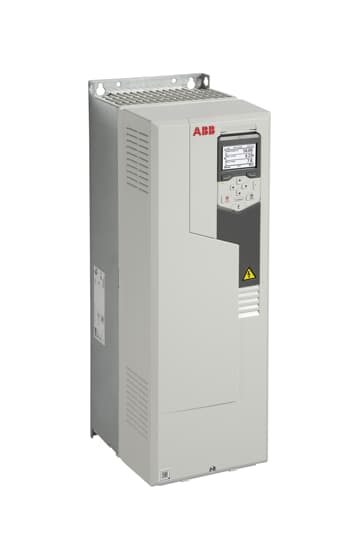

ABB ACS580-01-065A-4

Abb Acs580-01-065A-4 Adjustable Frequency Ac Drive

All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Review our Product Conditions notice here.


Regular price
Sale price
$5,908.03

Drives, ACS580 Series
Drive, AC, 40HP, 480V, 52.0A, CT, N1

ACS580 Series Information

  • AC Drive
  • Built for Harsh Conditions
  • Intuitive User Interface
  • IP55
  • Can be Used for Commercial Applications

We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.


TECHNICAL SPECIFICATIONS

ABB ACS580-01-065A-4



ABB, a prominent manufacturer of automation technologies, presents the ACS580-01-065A-4, an advanced VFD for industrial usage. This state-of-the-art equipment caters to the diverse requirements of various industries while ensuring optimal performance, energy efficiency, and dependability.

Technical Specifications:

With advanced capabilities that suit a wide range of industrial applications, the ACS580-01-065A-4 VFD is designed to control motor speed and torque precisely. It is voltage range compatible (380 - 480 V), with an input current of 65 A and a max output current of 94 A.

The gadget is designed to handle motors ranging in size from 0.75 kW to 315 kW. The ACS580-01-065A-4 model's compact size makes it simple to install and integrate into your existing systems. It is suitable for a variety of settings because it measures 285 mm in H, 200 mm in W, and 240 mm in D and weighs only 41.9 lbs.

This 3-phase drive has a 40 hp constant torque rating and a 50 hp variable torque rating. The nominal output current of the R4 frame size drive is 73 A, and the input fuse current is 62A. It dissipates 719 W of total heat and moves 134 m3/h of air. The model (ACS580-01-065A-4) has a noise limit of 69 decibels and a resistance of 7.8 to 13.1 ohms.

Operating Conditions:

The ACS580-01-065A-4 device is optimized for resilience in diverse operational conditions, such as ambient temperature, vibration, altitude, and humidity. It can endure an enormous ambient temperature of +50°C (122°F) without compromising its functionality.

The device can withstand vibration and shock with a vibration of 0.7 g and a shock of 15 g. Furthermore, the device can function within a range of humidity conditions, with the humidity range being 5% to 95% non-condensing. This capability ensures that the device will operate reliably, even in high-humidity environments.

Installation and Transportation:

To ensure the optimal performance and longevity of the device, it is imperative to handle and install it following the Manufacturer's instructions and industry best practices.

The model ACS580-01-065A-4 must be protected from shock, vibration, and extreme temperatures during transportation. The environment temperature should be within the range of -25°C to +70°C, and the device should be stored and transported in a protective case specifically designed for it.

When installing the device, it should be mounted in a clean, dry location free from excessive dust, moisture, and vibration. The installation area should be well-ventilated to prevent overheating. Securely fasten the device to a solid, level surface to prevent movement during operation.

Properly connecting the drive (ACS580-01-065A-4) to the power supply and the motor is crucial for optimal performance and safety. It is imperative to connect the device per the manual guidelines and ensure that all wiring and connections are adequately grounded.

Safety Precautions:

The ACS580-01-065A-4 VFD is a top-of-the-line device engineered to control motor speed precisely. For maximum safety, it is essential to precisely install and earth the device according to the manufacturer-specified guidelines.

All wiring and connections should be insulated and safeguarded to avoid electrical hazards. Moreover, the device should be placed in a well-ventilated area to prevent overheating. When servicing or repairing the drive, follow appropriate lockout/tag-out procedures. It prevents accidental start-up or unexpected release of stored energy, which can cause severe injury or device damage.
