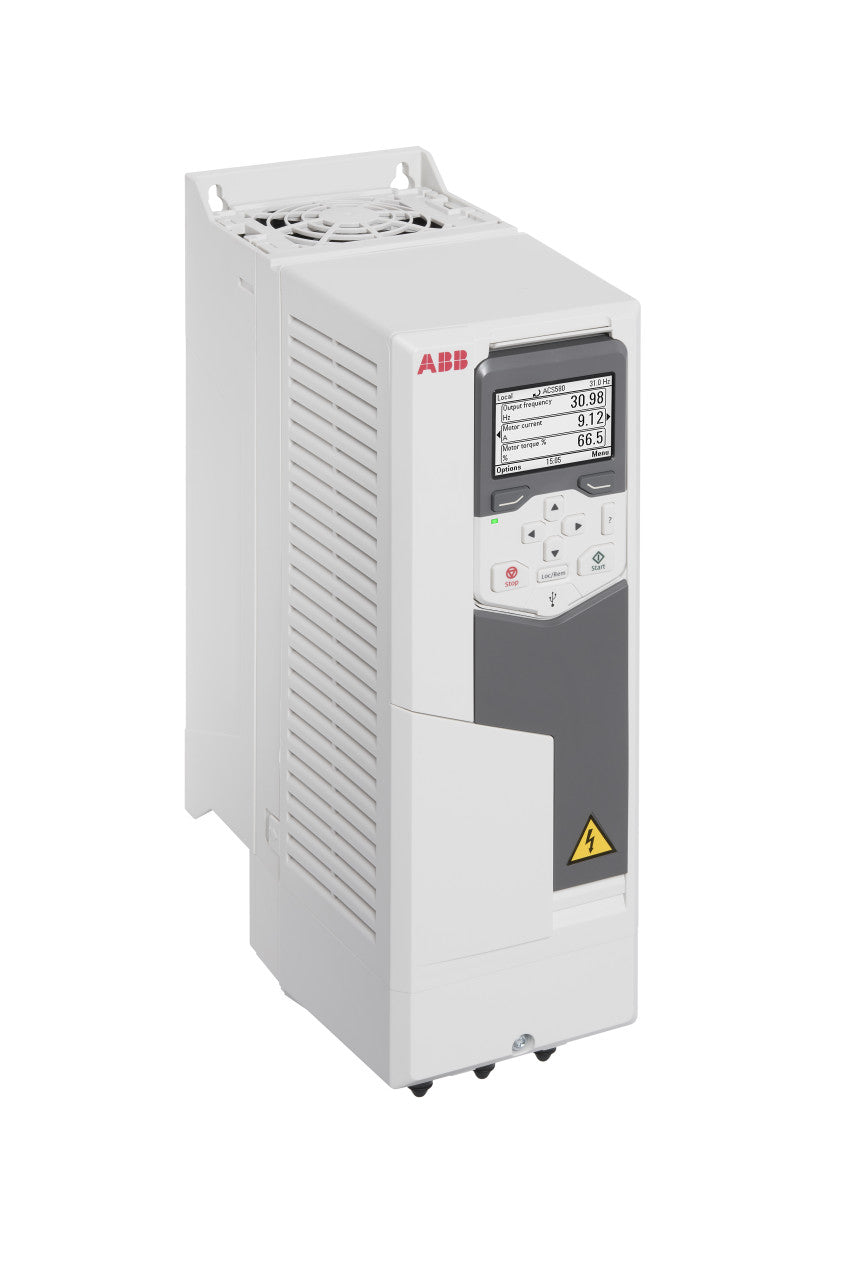

ABB ACS580-01-06A0-4

Abb Acs580-01-06A0-4 Adjustable Frequency Ac Drive

All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Review our Product Conditions notice here.


Regular price
Sale price
$1,059.05

Drives, ACS580 Series
Drive, AC, 3.0HP, 480V, 4.0A, CT, N1

ACS580 Series Information

  • AC Drive
  • Built for Harsh Conditions
  • Intuitive User Interface
  • IP55
  • Can Use for Commercial Applications

We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.


TECHNICAL SPECIFICATIONS

ABB ACS580-01-06A0-4



The ACS580-01-06A0-4 model is an industrial-grade variable frequency drive for precise motor control and reliable operation. ABB expertly crafts this highly efficient drive to operate on a three-phase power supply, using cutting-edge power and automation technologies.

Technical Specifications:

The model ACS580-01-06A0-4 is a versatile AC drive with a voltage range of 380 - 480 VAC and a frequency range of 48-63 Hz. The frequency drive has a minimum short circuit current of 280 A and a maximum short circuit current of 12 KA.

The dimensions of the drive ACS580-01-06A0-4 are compact, with a height of 490 mm, a width of 203 mm, and a width of 203 mm. This compact design and lightweight body of just 11.8 kg allow for easy installation in various industrial settings.

The drive has a total heat dissipation of 667 W, an airflow of 105 CFM, and a noise of 76 dB. This variable drive has a frame size of R3 and a gross container volume of 22.779dm3.

The VFD ACS580-01-06A0-4 has a power output of 22 KW for normal use and 18.5 KW for heavy-duty use. The current output of heavy and light duty is 37.7 A and 42.8 A, respectively. It has a minimum resistance of 10 ohms and a maximum resistance of 22A.

Operating Conditions:

The model ACS580-01-06A0-4 is a robust drive that offers reliable and efficient operation in various industrial conditions. With a temperature range from (-14°F to +122°F), the internal cooling system of this drive maintains optimal operating temperatures even in challenging environments.

Notably, the drive can operate at altitudes up to 1000 m (3281 ft) without derating. The drive's output power reduces at higher altitudes to ensure reliable operation.

The drive also boasts advanced features for heat dissipation that allow it to operate in environments with humidity levels up to 95% non-condensing.

Moreover, this ACS580-01-06A0-4 VFD is designed with a vibration resistance of 1 g at 10 - 500 Hz, ensuring reliable operation even in environments with high vibration levels. Experience the dependable performance and longevity the model can provide for industrial operations.

Installation and Transportation:

During installation, ensure the ACS580-01-06A0-4 drive is free from excessive vibration, shock, and humidity at the desired location. Optimize performance and reliability by ensuring proper spacing for airflow around the drive and securely anchoring it to prevent unwanted movement while in use.

When making electrical connections, match the power supply to the drive's voltage and frequency ratings, and ground it following local electrical codes and the Manufacturer's recommendations. Secure all electrical connections to prevent loosening during operation.

Protect the ACS580-01-06A0-4 drive from shock, vibration, and extreme temperature for transportation. Transport it in its original packaging or a similar container that provides adequate protection under these conditions.

Safety Precautions:

Safety is paramount when working with the ACS580-01-06A0-4 drive, a highly advanced piece of equipment. The variable drive has built-in safety features that protect the drive and connected equipment from harm. These features include overload protection, short-circuit protection, and overvoltage protection.

This drive includes a built-in emergency stop function to shut down the system quickly in emergencies. With its exquisite design and advanced safety features, the model (ACS580-01-06A0-4) is the perfect choice for high-tech operations where safety is paramount.
