ABB ACS580-01-077A-6
All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Review our Product Conditions notice here.
ACS580 Series Information
- AC Drive
- Built for Harsh Conditions
- Intuitive User Interface
- IP55
- Can Use for Commercial Applications

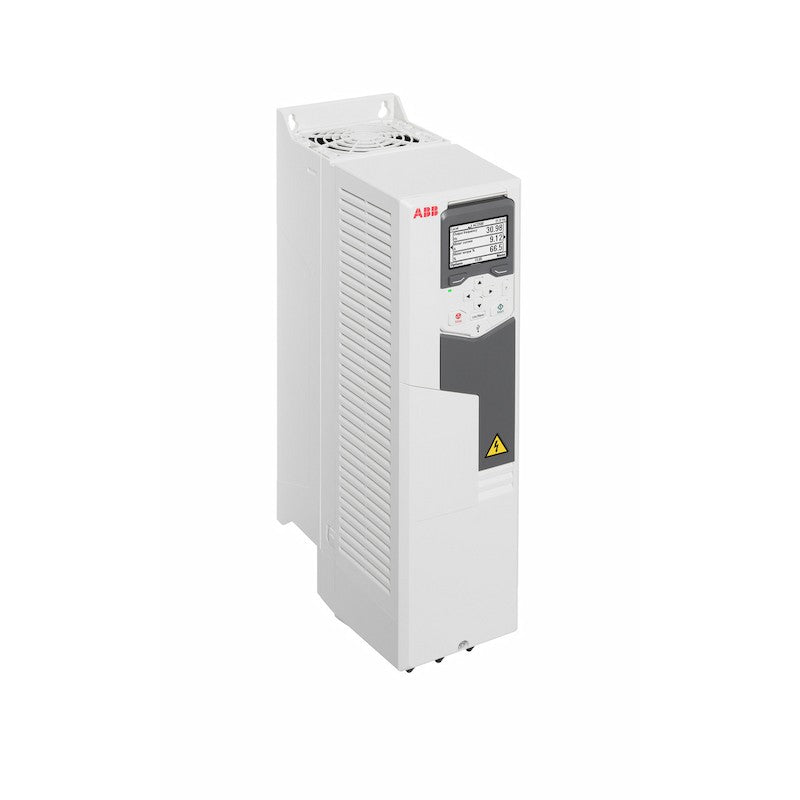

The ABB ACS580-01-077A-6 is a reliable and efficient variable speed drive, capable of delivering up to 75 kW of power. It features state-of-the-art technology, including active front end technology, embedded safety functionality, and more. The ACS580-01-077A-6 is designed for easy installation and setup, providing maximum cost savings and energy efficiency.
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
TECHNICAL SPECIFICATIONS
ABB ACS580-01-077A-6
ABB is revolutionizing performance and energy efficiency in industrial applications with the advanced features of the ACS580-01-077A-6 Variable Frequency Drive. This top-tier VFD represents their ongoing dedication to innovation, incorporating cutting-edge technologies to maximize productivity while keeping costs down.
Technical Specifications;
The ACS580-01-077A-6 model has a high power rating of 77 kilowatts (kW). It can function efficiently inside diverse electrical systems, ensuring compatibility with varied installations, with a voltage range of 380 to 500 volts. With an input current of up to 77 amperes (A) and an output current of 112 A capable of delivering the same level of performance, the VFD has remarkable current handling capacity.
The drive has a constant torque rating of 60 horsepower and a variable torque rating of 75 hp. It has a three-phase input and two braking methods, dynamic and flux. This VFD has an R5 frame size and a total weight of 62.4 lbs.
With dimensions of 11.6 inches in length, 28.83 inches in height, and 7.99 inches in width, the ACS580-01-077A-6 drive is designed to be compact yet strong. Its small size allows for flexible installation in various industrial settings while optimizing space efficiency.
The variable drive produces 1510 W of total heat dissipation, 139 m3/h of airflow, and 63 dB of noise. The 077A-6 drive has a resistance range of 6.5 to 14 ohms.
Operating Conditions:
With an operating temperature range that extends from -15 to +45 degrees Celsius and the ability to withstand vibrations of up to 0.5G without degrading its performance, the variable frequency drive (VFD) model ACS580-01-077A-6 is built to work in the harshest of environments.
Additionally, the variable drive is designed for secure operation at heights above sea level without derating current issues typically associated with altitude levels. All of this is in addition to its capacity to work without interruption within a humidity range ranging from 10 percent to 90 percent.
Installation and Transportation:
The ACS580-01 variable frequency drive (VFD) must be correctly fitted with sufficient airflow and clearance to prevent it from overheating, compromising its safety and performance over the long run.
If you travel the VFD without first ensuring that the ambient temperature is within the spec range, which is between -40 degrees Celsius and 70 degrees Celsius, then you risk causing damage to the device.
Safety Precautions:
Always unplug the power supply Before installing or maintaining the drive ACS580-01-077A-6. It will help limit the chance of unintentionally receiving an electric shock or operating the device. To ensure the safety of electrical systems, it is crucial to religiously adhere to lockout and tagout procedures and wear personal protective equipment at all times.
In addition, for the safe operation of this VFD system, appropriate grounding and earthing must be created per the instructions provided by the manufacturer and the relevant local codes. The motor overload protection measures built into it need to have the appropriate settings configured for them to prevent any mechanical damage and maintain the optimal level of performance throughout its lifetime.
Finally, ensure that when you access or service it, its energy source is deactivated. Please pay attention to the circumstances, such as the temperature limit outside, etc., indicated in the manual instructions.
