ABB ACS580-01-078A-4

Abb Acs580-01-078A-4

All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Review our Product Conditions notice here.


$6,990.00
$6,990.00

Drives, ACS580 Series
Drive, AC, 50HP, 480V, 65.0A, CT, N1

ACS580 Series Information

  • AC Drive
  • Built for Harsh Conditions
  • Intuitive User Interface
  • IP55
  • Can be Used for Commercial Applications

We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.


TECHNICAL SPECIFICATIONS

ABB ACS580-01-078A-4

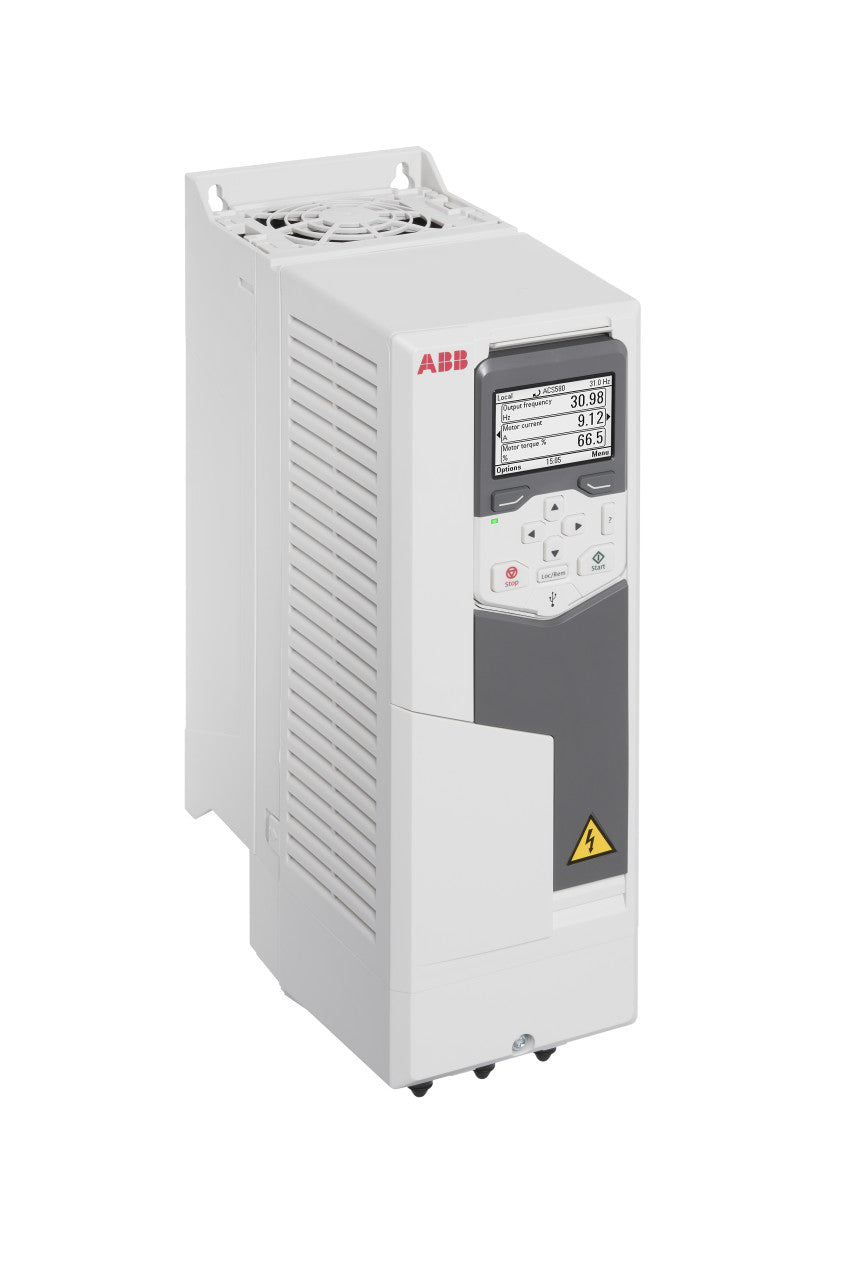

The model ACS580-01-078A-4 is a cutting-edge Variable Frequency Drive (VFD) manufactured by ABB. It delivers precise and efficient motor control, offering unmatched reliability, flexibility, and exceptional performance.

This device is ideal for demanding industrial applications, such as water and wastewater management, heating, ventilation, air conditioning (HVAC), and material handling.

Technical Specifications:

The ACS580-01-078A-4 model includes advanced features and functionality, such as a strong CPU, built-in safety mechanisms, and an easy-to-use user interface. This device boasts a rated 60-horsepower power and an 88-amp current output, making it suitable for managing motors of varying power capacities. Its exceptional performance guarantees efficient control over any electric motor operation.

This VFD operates between 380 and 480 volts AC, has a rated input current of 77 amps, and a maximum output current of 117 amps. It has a derating factor of 0.71 at 8KHz and a fuse input current of 78A at 40 degrees Celsius. The total heat dissipation of this R5 frame-size drive is 941 W, with an airflow of 82 CFM.

The minimum resistance of the 078A-4 drive is 7.8 ohms, while the highest resistance is 10.7 ohms. The North American drive type does not have an IP21 IP rating and does not have a dynamic or flux braking system. The device (ACS580-01-078A-4) has a compact and durable design, measuring 355 x 320 x 540 mm (W x H x D) and weighing only 62.4 lbs.

Operating Conditions:

The ACS580-01-078A-4 device is built to withstand various environmental factors, making it suitable for various industrial applications. This product flawlessly operates in a wide temperature spectrum, from extreme cold to scorching heat. It can thrive in ambient temperatures between -10°C and 50°C, making it highly versatile for various applications.



Simultaneously, a vibration limit of 1.0 g ensures reliable operation even in high-vibration environments. The device can operate at altitudes up to 1000 meters above sea level without derating.

Installation and Transportation:

To ensure reliable and consistent performance, the proper installation and transportation of the ACS580-01-078A-4 Variable Frequency Drive (VFD) are essential. Before installation, ensure you do not damage the VFD during transportation.

Store the VFD in its original packaging or a suitable protective case to prevent vibration, shock, or impact damage during transportation. The VFD (ACS580-01-078A-4) should be installed clean and dry, free from dust and moisture. Choose a location that is easily accessible for maintenance and troubleshooting.

Proper grounding and electrical connections are crucial for safe and reliable VFD operation. A qualified electrician should install and commission the VFD to ensure proper installation and operation.

Safety Precautions:

The VFD ACS580-01-079A-4 contains high-voltage components that can pose a serious hazard if mishandled. Thus, before working on the device, it is crucial to disconnect the power supply and ensure that it has discharged completely.

Always wear suitable Personal Protective Equipment (PPE) such as gloves, safety glasses, and appropriate clothing to prevent accidents and injuries.

Regarding the model CS580-01-078A-4, you can be relieved to know that it features built-in safety mechanisms. You can use the Safe Torque Off (STO) and Safe Stop 1 (SS1) features to prevent any injury or damage to the device while you work on it.
