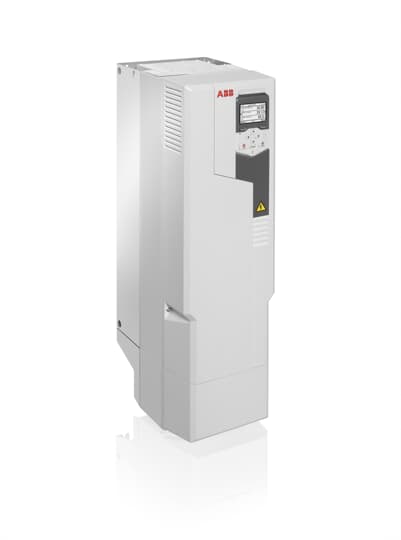

ABB ACS580-01-096A-4

Abb Acs580-01-096A-4 Adjustable Frequency Ac Drive

All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Review our Product Conditions notice here.


Regular price
$7,290.00
Sale price
$7,290.00

Drives, ACS580 Series
Drive, AC, 60HP, 480V, 77.0A, CT, N1

ACS580 Series Information

  • AC Drive
  • Built for Harsh Conditions
  • Intuitive User Interface
  • IP55
  • Can Use for Commercial Applications

We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.


TECHNICAL SPECIFICATIONS

ABB ACS580-01-096A-4



The ACS580-01-096A-4 model is a robust and cutting-edge variable frequency drive (VFD) engineered to meet the strenuous requirements of industrial operations. With its impressive capabilities and features, it provides sophisticated and versatile performance that sets it apart from other VFDs.

Technical Specifications:

The ACS580-01-096A-4 model has a maximum output power of 75 HP, a maximum output current of 139 A, and a supply voltage of 380 - 480 VAC. Additionally, it has a PID controller and various other performance-enhancing features, such as DC injection braking.

The variable frequency drive has a rated input current of 96A and a power output of 60 hp on high-duty use. The Variable Frequency Drive (VFD) comes in a sleek casing of 340 mm x 215 mm x 330 mm (H x W x D) and weighs around 62.4 lbs.

The R5 frame size drive has a derating factor of 0.57 on 12 KHz at 40 degrees Celsius. It has a current of 106 A with a fuse voltage rating of 600 V. The ACS580-01-096A-4 boasts a formidable heat dissipation of 1127 W. Operating at an airflow of 82 CFM, this frequency drive emits a noise level of 63 dB. With a resistance of 1.3 to 8.7 ohms, it provides high efficiency.

Operating Conditions:

To ensure smooth operation, the ACS580-01-096A-4 drive was designed to meet strict temperature, vibration, altitude, and humidity conditions. The drive can withstand ambient temperatures as high as 50 °C, which allows for its usage in both indoor and outdoor environments.



Its robust enclosure is built to endure harsh industrial environments, and its in-built fan guarantees efficient heat dissipation even under heavy loads. Additionally, the model ACS580-01-096A-4 has a maximum vibration limit of 1.5 g, allowing it to operate reliably under varying vibration levels.

Installation and Transportation:

To protect the ACS580-01-096A-4 drive from physical damage, keep it in its original packaging during transportation. Extreme temperatures can also cause damage, so it is essential that the ambient temperature during transportation stays within €“ 40 °C to 70 °C.

During installation, ensure the drive (ACS580-01-096A-4) is placed in an area free from excessive vibration, shock, and moisture. The product's enclosure boasts a durable, space-saving design that can endure even the most rugged industrial environments. You can install this impressive solution in any position without sacrificing its impressive capabilities.

Mount the drive in a well-ventilated location with a minimum clearance of 100 mm on all sides to ensure proper cooling.

Safety Precautions:

Always disconnect the power supply before working on the drive to avoid the risk of electrical shock. It's crucial to ground the ACS580-01-096A-4 properly drive to prevent electrical hazards. Ensure the safety and reliability of the equipment by taking this necessary precaution. Ensure that the grounding connections are secure and correctly connected.

It is essential to prioritize periodic software and firmware updates to sustain the models' maximum performance and productivity without fail. Disregarding this could lead to potential problems.

Always wear safety glasses, gloves, and appropriate clothing to prevent injury. The ACS580-01-096A-4 model generates heat during operation, so ensure proper ventilation to prevent overheating. Only use accessories recommended by the Manufacturer when connecting to the drive.
