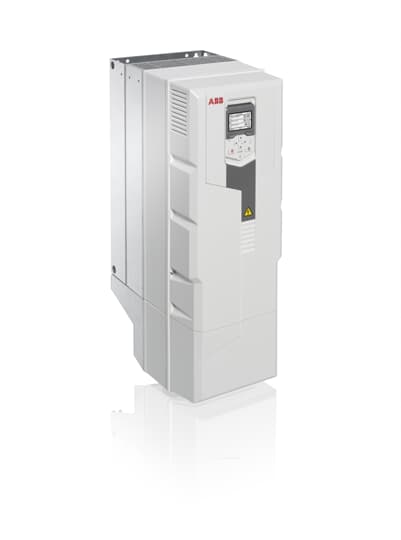

ABB ACS580-01-124A-4

Abb Acs580-01-124A-4 Adjustable Frequency Ac Drive

All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Review our Product Conditions notice here.


$9,009.04
Drives, ACS580 Series
Drive, AC, 75HP, 480V, 96.0A, CT, N1

ACS580 Series Information

  • AC Drive
  • Built for Harsh Conditions
  • Intuitive User Interface
  • IP55
  • Can Use for Commercial Applications

The ABB ACS580-01-124A-4 is a reliable and efficient variable frequency drive, ideal for high-performance applications. With resolutions up to 0.01 Hz, this drive is capable of delivering precise power control and smooth dynamic responses. It is able to handle power ratings from 0.75 to 250 hp, while reaching switching frequencies up to 400 Hz - perfect for high-performance applications.


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.


TECHNICAL SPECIFICATIONS

ABB ACS580-01-124A-4



The model ACS580-01-124A-4 is an advanced (VFD) that offers exceptional performance in various industrial situations. Its advanced features make it one of the most reliable and efficient drives.

Technical Specifications:

This drive is designed to function between 380 and 500 volts AC, with a 48 to 63-hertz frequency range. This product can endure an input current of up to 124 amps and an output current of 173 amps, qualifying it as a powerful option.

The ACS580-01-124A-4 device is small, measuring 28.6 inches in height, 9.92 inches wide, and 14.53 inches deep. The drive is only 94 lbs., making it easy to install in small spaces and enabling optimal use of space in control cabinets.

This VFD offers a heavy-duty power output of 75 hp and a light-duty power output of 100 hp. The variable drive has a voltage rating of 600 V with a fuse input current of 124 A. The model ACS580-01-124A-4 has a total heat dissipation of 1536 W with an airflow of 435 m3/h and a noise generation of 67 decibels.

Operating Conditions:

The variable drive is versatile in its ability to withstand a range of temperatures, from -10 to 50 degrees Celsius indoors and outdoors. Additionally, it has a maximum operating altitude of 1000 (MSL), rendering it suitable for diverse industrial settings.

Furthermore, vibration is not a concern as the ACS580-01-124A-4 drive operates flawlessly under moderate vibration levels of up to 0.7 G. This feature makes it a trustworthy device in environments with vibration risks.

The module ACS580-01-124A-4 functions optimally even in environments with high humidity levels, with the ability to withstand relative humidity levels of up to 95% without affecting performance or reliability.

Installation and Transportation:

It is crucial to ensure the reliable and efficient operation of the device by performing proper installation and transportation. During transportation, observe the temperature requirements for storage and transportation.

When installing the device, follow the guidelines provided in the ACS580-01 manual. Install the device vertically and provide a minimum clearance of 100 millimeters above and below the device to ensure proper airflow for cooling.

Proper electrical wiring is necessary for the safe and reliable operation of the ACS580-01-124A-4 drive. Ensure the wiring is insulated and secured to prevent accidental contact or damage.

Firmware Update Instructions:

The operation of the drive is dependent on its firmware, which requires regular updates to achieve top-notch performance. Safety is key to keeping VFD firmware up-to-date. Known bugs or security vulnerabilities can exploit or cause dangerous malfunctions if the firmware is outdated. Updating the model (ACS580-01-124A-4), firmware can improve system stability and mitigate security risks, ensuring safe and reliable operation.

Safety Precautions:

To ensure the safe and effective installation, operation, and maintenance of your ACS580-01 device, follow all guidelines and instructions as provided in the manual. Disconnect all power sources and ensure the device is properly grounded. Only qualified personnel should attempt to open or modify the device for any modifications or maintenance.

Never touch any electrical components of the model (ACS580-01-124A-4) while it is in operation, as this can result in electrical shock or device damage. Additionally, avoid exposure to moisture, dust, or other environmental factors that can cause safety hazards or damage the device.
