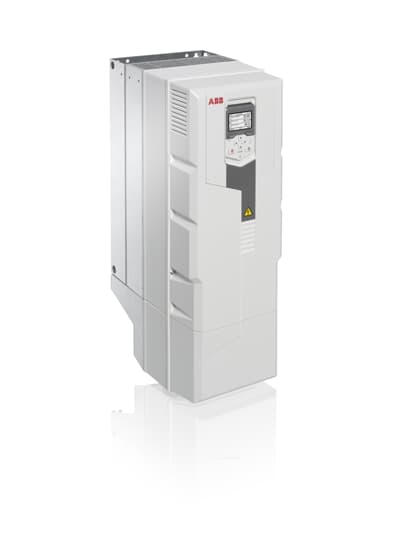

ABB ACS580-01-143A-2
All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Review our Product Conditions notice here.
The ABB ACS580-01-143A-2 is a powerful and efficient drive, designed for industrial applications. With an adjustable speed range and advanced safety features, it is capable of sustained performance and reliable operation in a variety of settings. The drive also has a built-in EtherCAT communications interface for fast and reliable data transmission.
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
TECHNICAL SPECIFICATIONS
ABB ACS580-01-143A-2
The ACS580-01-143A-2 is a variable frequency drive (VFD) produced by ABB, a leading manufacturer of power and automation technologies. This VFD efficiently and reliably controls the speed and torque of AC motors in a wide range of industrial applications.
Technical specifications of ACS580-01-143A-2:
It is an intelligent motor control solution that offers many features to help users optimize their processes. The VFD has a power range of 0.75 kW to 250 kW, and it is compatible with various voltage ranges with an efficiency rating of up to 98%.
The VFD has an input voltage range of 380-480 VAC and can output up to 480 VAC. It offers an output frequency range of 0-599 Hz with a rated power of 143 A. The IP20 rating of the VFD protects it against the ingress of solid objects larger than 12mm, but it does not offer complete protection against dust.
One of the standout features of the ACS580-01-143A-2 VFD is its built-in energy-saving capabilities. The device has an automatic motor control function that adjusts the motor's speed to match the load, helping minimize energy waste.
Additionally, the VFD has an easy-to-use control panel that features intuitive buttons and LED displays, allowing users to adjust settings quickly and easily as needed. The ACS580-01-143A-2 VFD also benefits from advanced control algorithms that enable precise motor control, ensuring that the motor operates at the desired speed and with the required torque.
The device's robust and reliable design makes it suitable for harsh industrial environments and offers flexible configuration options for customized operation. Finally, the VFD is compliant with international standards for safety and quality.
Operating Temperature Range and Mounting Conditions:
The model ACS580-01-143A-2 has an operating temperature range of -10°C to 50°C, making it suitable for use in various environments. The storage temperature range of -40°C to 70°C ensures safe storage when the device is not in use.
The device has a maximum relative humidity of 95% (non-condensing), which means it can operate effectively in humid environments without risk of damage.
The ACS580-01-143A-2 VFD offers advanced features and functions such as automatic energy optimization, pre-programmed motor control functions for specific applications, and fault detection and protection functions to prevent damage to the motor and VFD in case of overloads or short circuits.
Operation and installation instructions:
To install the VFD, you need to take several basic steps. Securely mount the VFD on a sturdy surface using the provided screws and brackets. Connect the power supply to the input terminals of the VFD.
Any optional components or accessories, such as filters or communication modules, can be installed. Verifying that all connections are secure and tightened before proceeding is crucial. Turn on the power supply and VFD, and perform the initial setup process.
Use the control panel to set the desired motor speed and other parameters, such as acceleration and deceleration times. After selecting the parameters, start the motor by pressing the start button on the control panel. The VFD will gradually ramp up the motor speed to the desired level.
Once done with the operation, stop the motor by pressing the stop button on the control panel. The VFD will gradually ramp the motor speed to zero, ensuring a smooth stop.
