ABB ACS580-01-192A-6
All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Review our Product Conditions notice here.
ACS580 Series Information
- AC Drive
- Built for Harsh Conditions
- Intuitive User Interface
- IP55
- Can Use for Commercial Applications

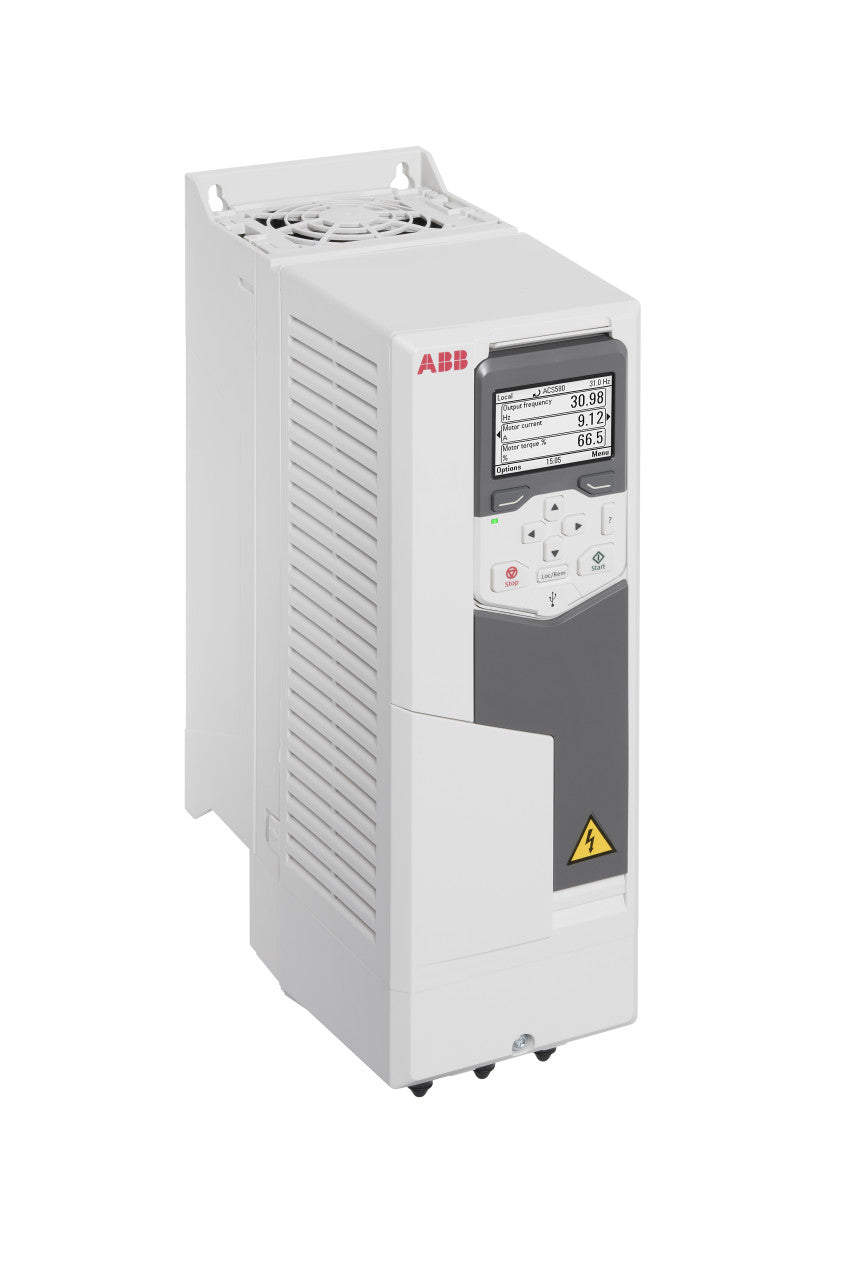

ABB's ACS580-01-192A-6 is a high-performance frequency converter designed to provide reliable, energy-efficient control of motors. The drive delivers 192A, and with advanced vector control technology, it ensures efficient operation and reactive power control of any motor.
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
TECHNICAL SPECIFICATIONS
ABB ACS580-01-192A-6
The model ACS580-01-192A-6 incorporates cutting-edge technology to balance accuracy and power for industrial applications perfectly. As a leader in automation, ABB has created this variable frequency drive to ensure precise motor control while offering an array of unique features.
Technical Specifications:
The model ACS580-01-192A-6 has a remarkable current capacity 192A, making it perfect for regulating high-power motors. This Variable Frequency Drive (VFD) has a wide voltage span of 380 to 480 V AC, providing compatibility with diverse power systems. With a frequency range of 48 to 63 Hz, it is compatible with diverse frequency standards across the globe, allowing for seamless compatibility across locations.
With its excellent output current capacity, the drive ACS580-01-192A-6 provides precise and dependable motor control. It has an output current limit of 259 amps maximum.
The model's physical dimensions are compact and optimized for space utilization. Its dimensions of 14.96 inches in width, 37.6 inches in height, and 16.46 inches in depth make it excellent for installations with limited space. It weighs only 214 pounds and has an R9 frame size.
The variable drive dissipates 4086 W of heat, with a minimum and maximum resistance of 2.2 and 5.8 ohms, respectively. This high-performance solution boasts a remarkable 677 cubic feet per minute airflow capacity and a low noise level of 68 decibels.
Operating Conditions:
The ACS580-01-192A-6 model functions dependably in temperatures ranging from -10 degrees Celsius to 40 degrees Celsius (14F and 104F), making it ideal for use in industrial settings. Even when subjected to the regular vibrations common in manufacturing plants, its 1.0 g vibration limit ensures it will continue to function reliably.
It also has a high altitude tolerance of 3281 feet above sea level, making it an excellent choice for installations at higher elevations. Last but not least, the relative humidity can range anywhere from 5 percent to 95 percent, and non-condensing provides further versatility in a wide range of climatic conditions.
Installation and Transportation:
Pay close attention to the temperature conditions during the shipment and installation of the ACS580-01 drive to ensure it will operate reliably. The instruction manual provides precise guidance on storing the device at extreme temperatures, from -25°C to 70°C. In addition, to achieve the best possible performance outcomes, adequate ventilation, in addition to appropriate grounding, is required.
During transportation, you should also try to minimize any shocks or collisions, as even a tiny amount of either can cause irreversible damage to the object's exterior and interior, where its components would be negatively affected. Proper packaging materials that further limit potential harm are required to guarantee protection against factors such as moisture, dust, etc.
Safety Precautions:
Disconnect the power supply before performing any maintenance or installation activities on the model (ACS580-01-192A-6) to ensure safety and prevent electrical hazards. Protect yourself from potential shocks by wearing insulated gloves and other protective gear when dealing with high-voltage terminals.
It is equally important to adhere to the manufacturer's guidelines and national electric codes for grounding methods to avoid faults while ensuring proper functioning. Moreover, be aware that operating conditions such as temperature, humidity, and altitude could affect performance; Make sure you do not exceed these limits.
