ABB ACS580-01-361A-4
All products (new, refurbished, and repairs) are covered by the Industrial Automation Co.'s 2-year warranty. Manufacturer’s warranty is void and does not apply. Review our Warranty notice here.
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Review our Product Conditions notice here.

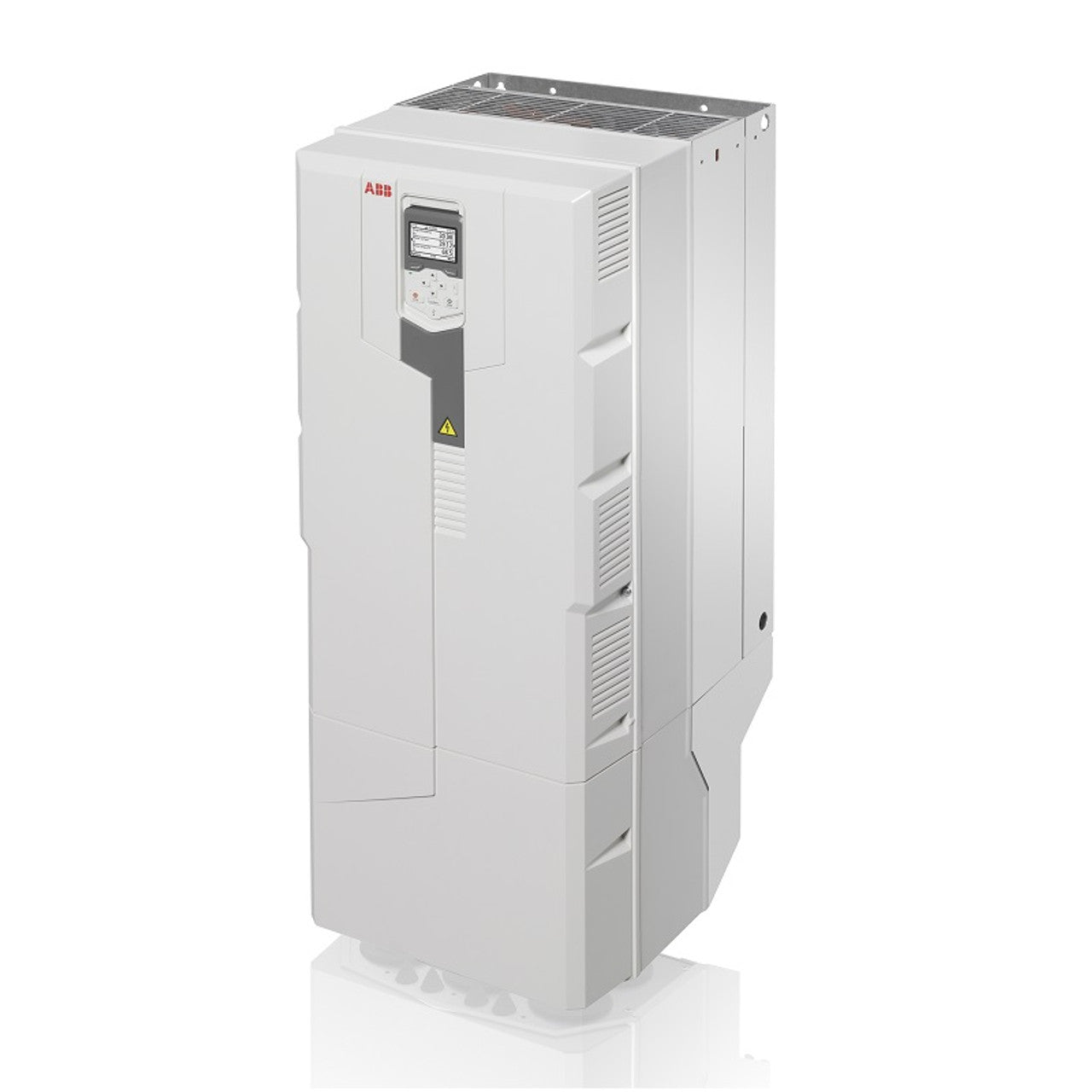

ABB's ACS580-01-361A-4 is a state-of-the-art variable frequency drive that ensures a high level of efficiency, with ratings up to 97%. The drive is engineered to provide precise motor control and optimized machine performance. Built for reliability, it features alarms, warnings and sophisticated diagnostics. The drive makes a great choice for a wide range of industrial applications.
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
TECHNICAL SPECIFICATIONS
ABB ACS580-01-361A-4
The ACS580-01-361A-4 drive allows users to tailor their various applications' performance and energy efficiency. It includes compressors, conveyors, pumps, extruders, centrifuges, mixers, fans, and other variable torque systems.
Technical Features of ACS580-01-361A-4:
The ACS580-01-361A-4 variable frequency drive is a special equipment capable of handling substantial power loads. With a solid, constant torque rating of 250 horsepower and variable torque capacity of up to 300 horsepower, it can reach 302 amps for the former load and 361 amps for the latter.
The ACS580-01-361A-4 features both dynamic braking and flux braking, which are braking types that allow for quick and efficient deceleration of the motor. However, it does not have closed-loop or AC line regenerative capabilities.
Operating the VFD model, ACS580-01-361A-4, is straightforward with its intuitive keypad. The VFD has been designed for performance, featuring an IP21 rating that guards against penetration of solid objects greater than 12.5mm in size and resisting water droplets from coming into contact with sensitive components.
The ACS580-01-361A-4 uses open-loop (sensorless vector) motor control and is designed for panel mounting. It can handle input voltage ranges between 380-500 VAC and has a maximum frequency of 500 Hz.
This model offers a streamlined solution for any system due to its inclusion of all the essential features as standard. It eliminates extra costs and setup time, making it an efficient choice for drive hardware.
With its user-friendly, intuitive settings menu and assistants, the ACS580-01-361A-4 makes setup, commissioning, and maintenance of variable frequency drive a breeze for users without extensive experience.
Standard Operating Conditions:
The variable frequency drive, ACS580-01-361A-4, has specific transport, storage, and operation requirements. Keep the VFD within a temperature range of -40 to +70 °C for transportation and storage.
To ensure optimal performance, the VFD must be operated in a temperature range between -15 and +50 °C. Under no circumstances are we allowed to freeze.
With its exceptional altitude rating, the ACS580-01-361A-4 is designed to perform in even the most demanding conditions. It can be operated as high as 1km with no power reduction and still maintain a standard output of up to 4km - for every additional 100 m of height, only marginal derating needs to occur.
This model is designed to ensure efficient operation in various environmental conditions, with relative humidity ranging from 5% up to 95% and no condensation.
This variable frequency drive has specific contamination levels and functional safety requirements. No conductive dust is allowed near the VFD as it can cause damage to the equipment.
General Safety Precautions:
The ACS580-01-361A-4 has some safety precautions that should be adhered to. Firstly, it is essential to note that only qualified electricians should perform electrical installation work on the drive.
To keep yourself safe and your equipment functioning optimally, waiting at least 5 minutes after disconnecting power before working on the drive or its associated parts like motor cables and motors is recommended.
Avoid working on the control cables while the drive or external control circuits are powered.
When lifting the drive (ACS580-01-361A-4), it is recommended to use the lifting eyes of the drive and avoid tilting it since the drive is heavy and its center of gravity is high. Failure to observe this may lead to physical injuries.
During installation, it is essential to ensure that all debris produced by borings and grindings stays intact. To ensure optimal safety, install drives on non-flammable walls and ensure the floor below the drive is also non-flammable.
