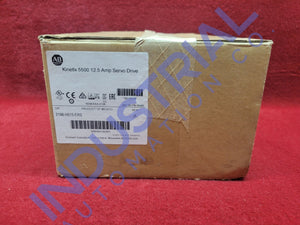

Allen-Bradley 2198-H015-ERS

The Allen-Bradley 2198-H015-ERS is a Kinetix 5500 Servo Drive that stands out as a versatile and robust solution tailored to meet the demanding needs of modern industrial applications. Its innovative design integrates advanced safety features, ensuring operational security while maintaining high performance.

Technical Specifications:

The Allen-Bradley 2198-H015-ERS is designed to seamlessly integrate with various input voltages, providing exceptional flexibility to meet diverse industrial needs. It supports AC input voltages of 195“264V rms for single-phase with a nominal value of 240VAC, and 195“264V rms for three-phase with 240VAC nominal, as well as 324“528V rms for three-phase with a nominal 480VAC supply.

Performance-wise, this servo drive delivers impressive metrics. It features a continuous output current (rms) of 5.0 A, capable of reaching a peak output current of 17.7 A. Operating at an efficiency of 97%, the Allen-Bradley 2198-H015-ERS offers a robust and energy-efficient solution.With compact dimensions of 2.16 x 8.90 x 10.43 inches (55 x 226 x 265 millimeters) and a weight of 5.0 pounds (2.3 kilograms), the Allen-Bradley 2198-H015-ERS is well-suited for deployment in space-constrained industrial settings.

Understanding its operational temperature range of 0 to 40°C is crucial for deploying the Allen-Bradley 2198-H015-ERS across different industrial environments. Built-in diagnostic and monitoring features enhance system reliability, enabling real-time drive health and performance monitoring.

Communication Interface:

The Allen-Bradley 2198-H015-ERS features an advanced communication interface designed for seamless integration into industrial automation systems. These communication capabilities are essential for effective control, monitoring, and coordination within complex system architectures. A notable highlight of this servo drive is its dual Ethernet communication ports. These ports serve as primary channels for data exchange, supporting both linear configurations and Device Level Ring (DLR) topologies.

The dual-port design significantly enhances system reliability by offering redundancy in communication paths. In case of a network disruption, the servo drive can seamlessly switch to an alternative path, minimizing downtime and ensuring continuous operational efficiency. Equipped to support the Ethernet/IP protocol, the Allen-Bradley 2198-H015-ERS facilitates real-time communication and data exchange, aligning with industry standards for industrial automation applications. This protocols widespread adoption ensures standardized and efficient communication, simplifying integration into larger automation frameworks.

Maintenance and Troubleshooting:

Maintaining and troubleshooting the Allen-Bradley 2198-H015-ERS involves several key practices to ensure optimal performance and reliability in industrial settings. Regular maintenance routines are crucial to preemptively address potential issues and extend the lifespan of the equipment. Communication problems can often be resolved by verifying network connections, ensuring Ethernet cables are securely connected, and checking network configurations. Utilizing built-in diagnostic tools and monitoring features can provide real-time insights into the health of the drive, enabling proactive maintenance and timely troubleshooting.

Systematic diagnostics are essential when troubleshooting issues with the Allen-Bradley 2198-H015-ERS: review error codes and status indicators provided by the drives interface or control system.

Frequently Asked Questions:

What is the input frequency range of the Allen-Bradley 2198-H015-ERS?

The Allen-Bradley 2198-H015-ERS has an input frequency range of 47“63 Hz, which enhances its adaptability across diverse operational environments.

What is the range of continuous output power provided by the Allen-Bradley 2198-H015-ERS?

The Allen-Bradley 2198-H015-ERS offers continuous output power ranging from 1.0 kW to 3.2 kW, depending on the input voltage. This versatile power range ensures reliable and efficient operation across various industrial applications.

What frame type is the Allen-Bradley 2198-H015-ERS classified under?

The Allen-Bradley 2198-H015-ERS is classified as Frame Size 2. This classification denotes its physical dimensions and capabilities within the Allen-Bradley Kinetix 5500 series.
