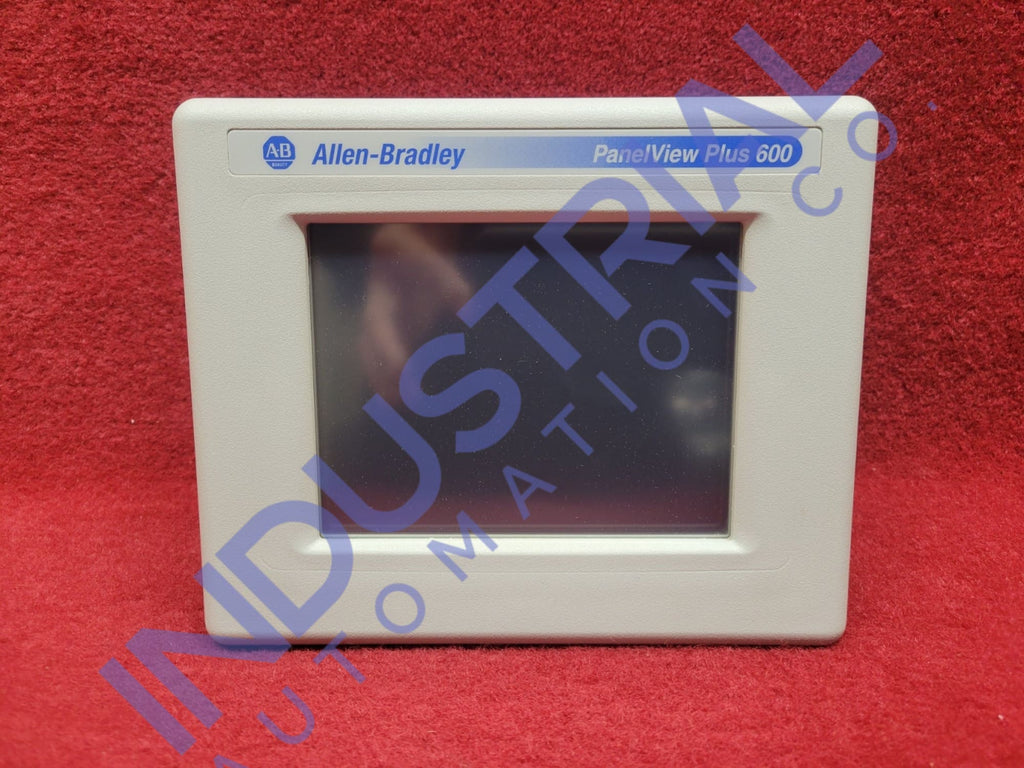

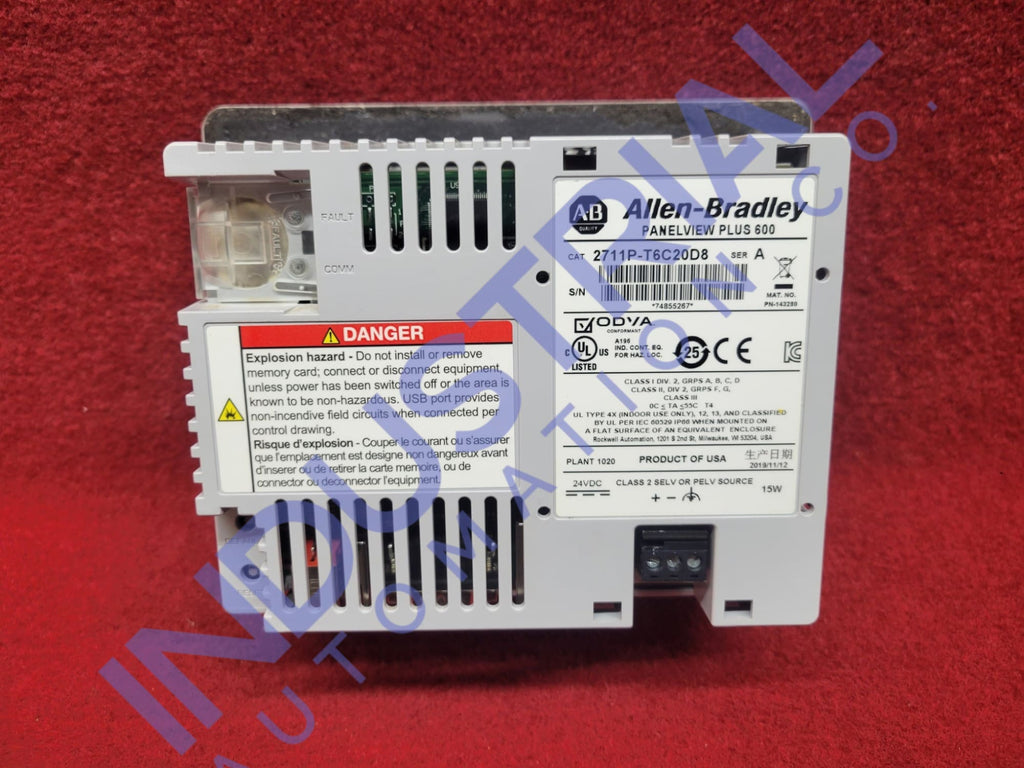

Allen-Bradley 2711P-T6C20D8

The Allen-Bradley PanelView with product code 2711P-T6C20D8 offers efficient and reliable performance. This unit features reset and default switches for easy diagnostic operations. The network interface supports Ethernet, DH+, DH-485, and ControlNet communication.

Technical Specifications:

System memory details include 256 MB RAM and 512 MB nonvolatile memory. External storage options support Secure Digital (SD) cards and USB flash drives. The display measures 5.7 inches with a resolution of 320 x 240 pixels. It uses color active matrix TFT technology and has a brightness of 440 cd/m².

This PanelView model is equipped with a resistive touch screen and 10 function keys. It operates on a Windows CE 6.0 operating system. The power input is DC with a supply voltage that lies between 18 to 30V DC. Power consumption is 15 W max and 9 W typical. The product dimensions are 152 x 185 x 68 mm.

The PanelView 2711P-T6C20D8 has a built-in depth of 68 mm. The front width and height are 185 mm and 152 mm, respectively. It supports wall mounting and direct mounting. The touch cutout dimensions are 123 x 156 mm. This model does not support rail mounting.

Operational and Installation Parameters:

The unit has one USB host port and one USB device port. Communication ports include RS-232 and Ethernet (10/100 Mbps). It supports protocols like TCP/IP and EtherNet/IP. This model does not support Modbus, Data-Highway, or DeviceNet protocols. It includes message indication and a message system.

FactoryTalk View Machine Edition software version 6.10 or later is preloaded. The battery-backed clock provides real-time accuracy. The battery has a four-year minimum life and is field-replaceable. The USB ports support hot-swappable devices. The PanelView 2711P-T6C20D8 is optimal for industrial applications.

Safety Precautions:

This PanelView model operates at an altitude of 2000 m. It has a non-operating temperature of -25 °C. The enclosure rating includes NEMA Type 12, 13, 4X (indoor use only), IP54, and IP65. It has a vibration resistance of 10...57 Hz and a shock resistance of 15 G.

The product is built for durability and consistent performance. It includes a real-time clock for critical data accuracy. The battery-backed clock ensures reliable timestamping of data. The touch screen supports a range of applications with resistive touch technology. The device is suited for various industrial environments.

With a weight of approximately 594 g, the PanelView 2711P-T6C20D8 is lightweight and easy to install. It provides robust functionality with its high memory capacity and efficient power consumption. The display area measures 115 x 86 mm for offering clear visibility. This model is engineered to meet the demands of modern industrial settings.

Frequently Asked Questions:

What are the memory specifications of the model 2711P-T6C20D8?

The PanelView 2711P-T6C20D8 includes 256 MB RAM and 512 MB nonvolatile memory. External storage options support Secure Digital (SD) cards and USB flash drives. The display measures 5.7 inches with a resolution of 320 x 240 pixels.

Which communication ports are supported by PanelView 2711P-T6C20D8?

This model includes one USB host port, one USB device port, RS-232, and Ethernet (10/100 Mbps). It supports protocols like TCP/IP and EtherNet/IP but does not support Modbus or Data-Highway protocols.

What are the dimensions and mounting options for the PanelView 2711P-T6C20D8?

The PanelView 2711P-T6C20D8 has dimensions of 152 x 185 x 68 mm and features a built-in depth of 68 mm. It supports wall mounting and direct mounting but does not support rail mounting.
