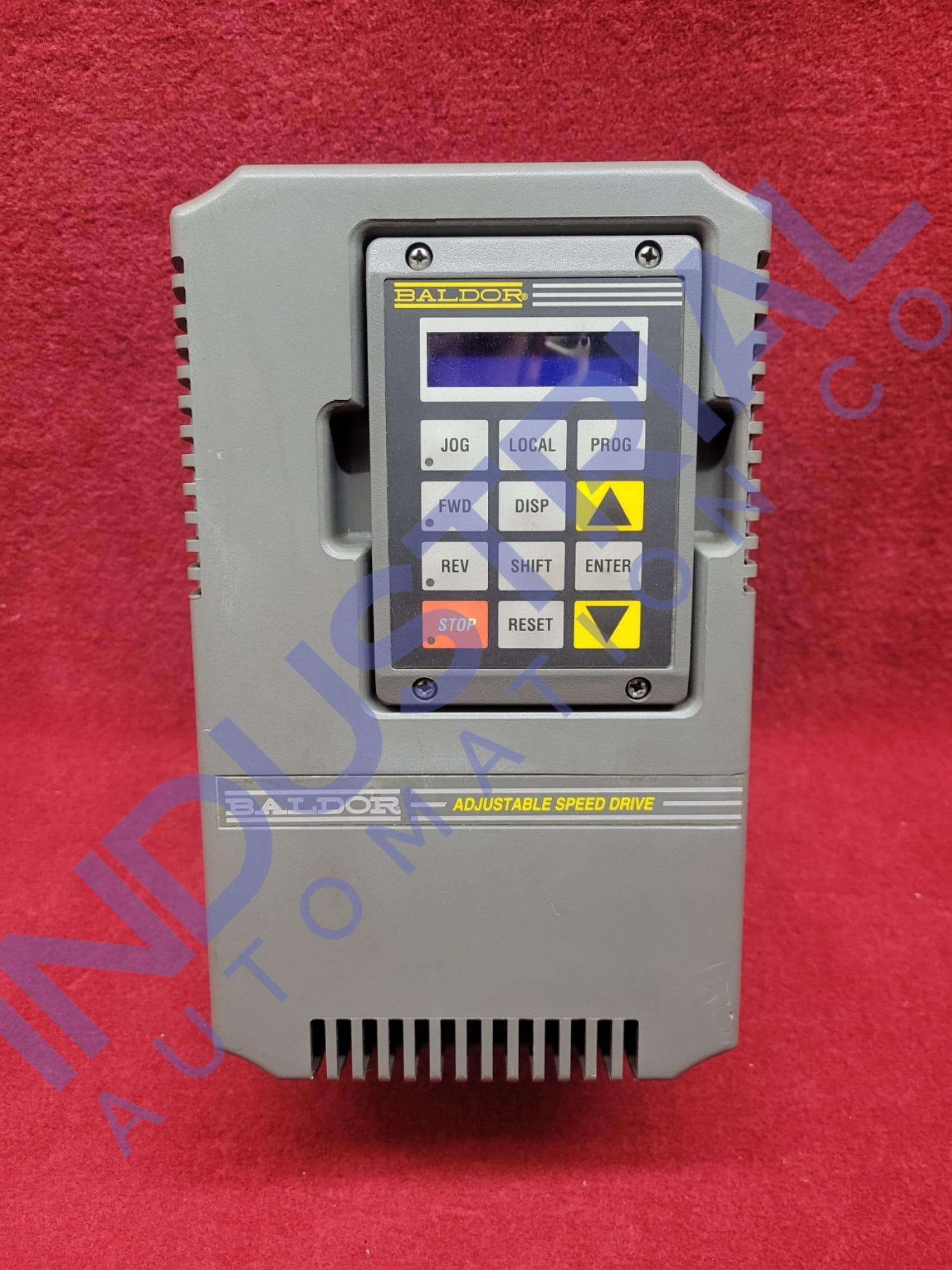

The Baldor ID15H405-E, an adjustable or variable frequency drive (VFD), offers precise motor speed and torque control. As part of Baldor's Inverter-General Purpose series, it is renowned for its reliability and efficiency in diverse industrial applications.

Technical Specifications:

The Baldor ID15H405-E is an adjustable speed drive engineered for precise AC motor control. This 5 HP unit runs at 460 VAC and handles up to 8.2 amps, making it versatile for various industrial uses. Its variable frequency feature efficiently manages motor speed and torque, boosting performance and energy efficiency.

A standout feature of the ID15H405-E is its robust construction and reliable performance, perfect for demanding environments. It includes a dynamic braking system that ensures smooth deceleration, reducing wear on mechanical components.

Its compact NEMA 1 enclosure provides sufficient protection for most general-purpose applications, although it's not intended for harsh or outdoor environments. Equipped with advanced control algorithms, this model, ID15H405-E, supports constant and variable torque applications, accommodating load requirements. It features multiple input and output options for seamless integration with various control systems, enhancing its usability across diverse setups.

The ID15H405-E includes user-friendly features like a digital display for straightforward monitoring and diagnostics, making maintenance and troubleshooting easier.

Operating Conditions:

The Baldor ID15H405-E is designed to operate optimally in temperatures from 0 to 40 degrees Celsius for peak performance and longevity. To ensure peak performance, install the drive in a well-ventilated area for proper heat dissipation. Provide easy access to controls and displays for monitoring and maintenance. Regular maintenance, such as cleaning ventilation paths and checking electrical connections, is essential for longevity and reliability.

Troubleshooting Guide for Baldor ID15H405-E:

If the Baldor ID15H405-E drive does not power on, check the power supply to ensure the three-phase input voltage is within the specified 460 VAC range. Inspect power connections and fuses for continuity and proper installation.

Overcurrent faults may arise from sudden load changes, short circuits, or incorrect motor settings. Check motor parameters in the drive's settings and inspect connections for damage. If overcurrent trips persist, gradually increase acceleration and deceleration times. Overvoltage faults usually occur due to excessive input voltage or regenerative braking.

Ensure the input voltage is within range and check if the braking resistor functions correctly. Adjust the deceleration rate to prevent the DC bus voltage from rising too quickly. Overheating issues can stem from insufficient ventilation, high ambient temperatures, or an overworked drive. Ensure cooling vents are unobstructed and the area is well-ventilated.

Unexpected resets or trips may be caused by electrical noise or transient issues. Inspect the grounding and shielding of the ID15H405-E and associated equipment. Use line filters or surge protectors to mitigate electrical noise.

Frequently Asked Questions:

How does the Baldor ID15H405-E handle power loss events?

The ID15H405-E effectively manages power loss, with a minimum ride-through capability of 15 milliseconds at full load. When idle, it can sustain up to 200 milliseconds of power loss.

What is the efficiency of the ID15H405-E under full load conditions?

The Baldor ID15H405-E has a high-efficiency rating of at least 95% at full load and speed, minimizing energy losses. This makes it cost-effective environmentally friendly, and ensures optimal performance and reliability in industrial settings.

How much does the Baldor ID15H405-E weigh?

Weighing in at just 18 lbs, the ID15H405-E is designed for effortless installation and seamless integration into existing systems. Its lightweight construction offers flexible placement options and minimizes physical exertion.
