Indramat MKD041B-144-KP1-KN
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Description

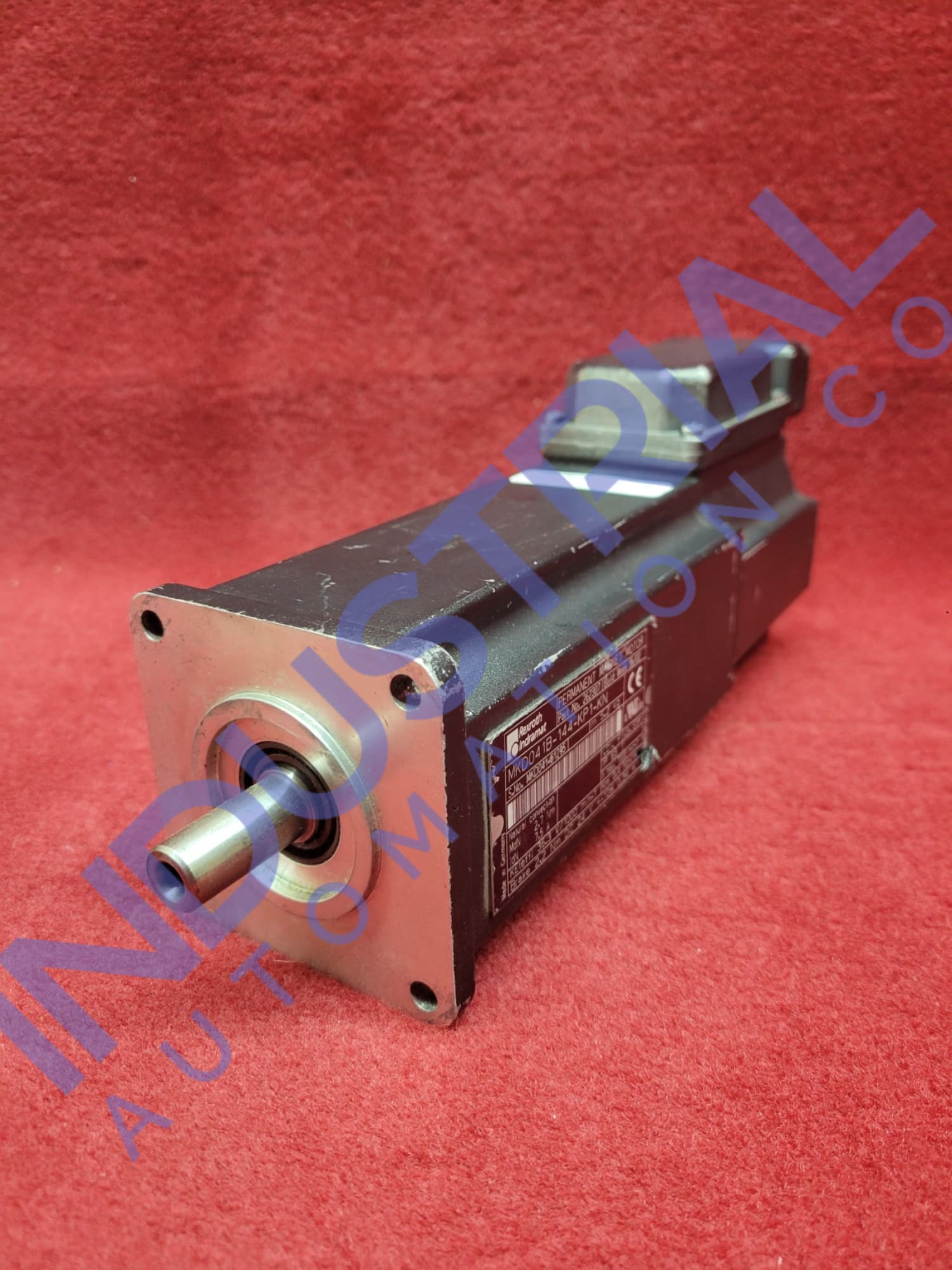

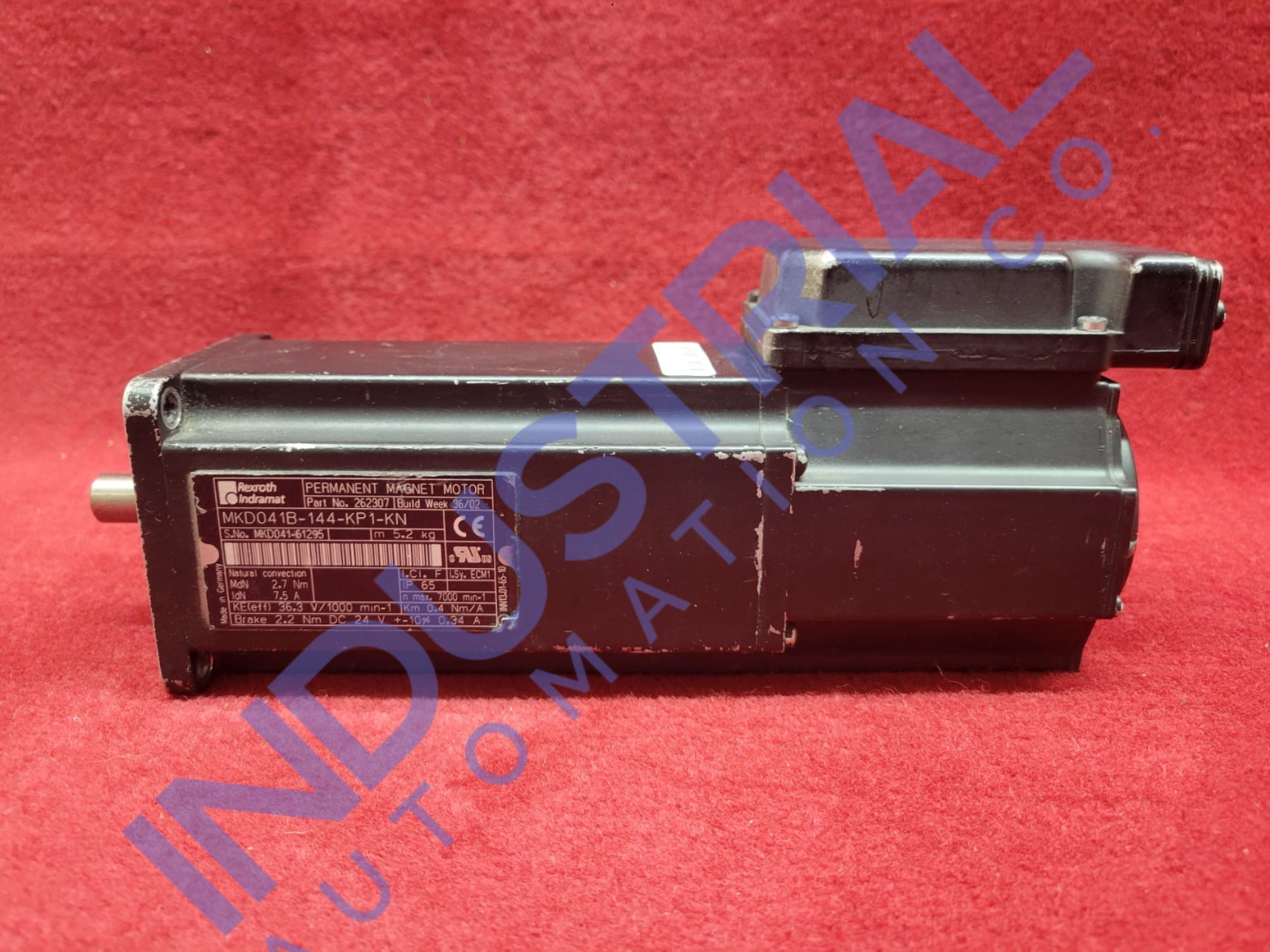

Indramat MKD041B-144-KP1-KN
The Indramat MKD041B-144-KP1-KN is a high-performance synchronous servo motor designed for precision and efficiency in industrial automation applications. The MKD synchronous motors are a budget-friendly solution for applications in intense and hazardous industries.
Electrical Specifications:
The motor is designed to deliver uniform power and high efficiency. The rated power of Indramat MKD041B-144-KP1-KN is 0.52kW. the servo motor operates at a rated voltage of 115V and 150Hz.te rated current value is 2.8A.
The synchronous servo motor is ideal for automation industries. The rated speed is 3000min-1, and the torque is 1.4Nm. The maximum current drawn is 34.0A. At the nominal temperature of 20°C, the roque constant and voltage constant are 0.4Nm/A and 36.3 V/1000min-1.The winding resistance of the motor is 1,8 ohm, and the inductance is 5 mH. The Indramat MKD041B-144-KP1-KN is a three-pole motor.
Operating Conditions:
The synchronous servo motor is a heavy-duty motor that meets all industrial requirements. It weighs 4.4kg. The motor can reach a maximum speed of 7500 min?¹. It can withstand extreme temperatures, making it suitable for a wide range of applications. The motor should be stored at - 20 to +80°C range.
The motor can perform with degrading at a maximum height of 1000m above NN. If the power and encoder cables are mounted correctly, the motor will have IP65 class protection. The housing has a prime black coat. These features ensure the durability of the motor.
Accessories:
The motor comes with a range of accessories to assist in application. The sealing air connectors can be attached by replacing the flange cover. It ensures that the liquid doesn't flow in the motor. Gearings like GTS and GTP help adapt motor output to desired specifications. Plug-in connectors and connection cables are also provided with the motor. These features ensure safe and reliable motor connections.
A blower unit can be integrated for high-demanding applications for better thermal management. It ensures the smooth running of the motor without causing damage to the motor or attached equipment at extreme temperatures. These accessories collectively enable the MKD041B-144-KP1-KN motor to meet the diverse demands of modern industrial applications, offering enhanced versatility and operational efficiency.
Applications:
The Indramat MKD041B-144-KP1-KN is highly recommended for use in industries requiring high precision and accuracy. This motor has vast applications in robotics, where many complex tasks need to be performed with high accuracy.
It provides more control over operations by providing precise control over motion. In CNC machines, the motor ensures accurate tool positioning and smooth operations. It enhances the efficiency and accuracy of automated systems. The design of the Indramat MKD041B-144-KP1-KN motor for consistent power delivery and its versatile and robust design make it the top choice for various industrial applications.
Frequently Asked Questions:
What feedback systems are available with the Indramat MKD041B-144-KP1-KN motor?
The MKD041B-144-KP1-KN motor can be equipped with resolver feedback for precise position and speed control. There is also an option to include an integral multiturn absolute encoder, which enhances the motors ability to deliver accurate feedback over multiple revolutions.
What protection features are included in the MKD041B-144-KP1-KN motor?
Protection from water and dust is provided by the IP65 protection rating design of the servo motor. Additionally, it has an insulation class of F, which enhances its durability and operational reliability under various conditions.
How does the thermal time constant of the MKD041B-144-KP1-KN motor affect its performance?
The thermal time constant of the MKD041B-144-KP1-KN motor is 30 minutes. A longer thermal time constant means the motor can sustain high performance for extended periods before overheating.
Specs Table
| Attribute | Specifications |
|---|---|
| Rated Speed | 3000 min?¹ |
| Rated Torque | 1.4 Nm |
| Rated Current | 2.8 A |
| Rated Power | 0.52 kW |
| Rated Voltage | 115 V |
| Rated Frequency | 150 Hz |
| Peak Current (Imax) | 34.0 A |
| Voltage Constant | 36.3 V/1000 min?¹ |
| Winding Resistance | 1.8 ? |
| Winding Inductance | 5 mH |
