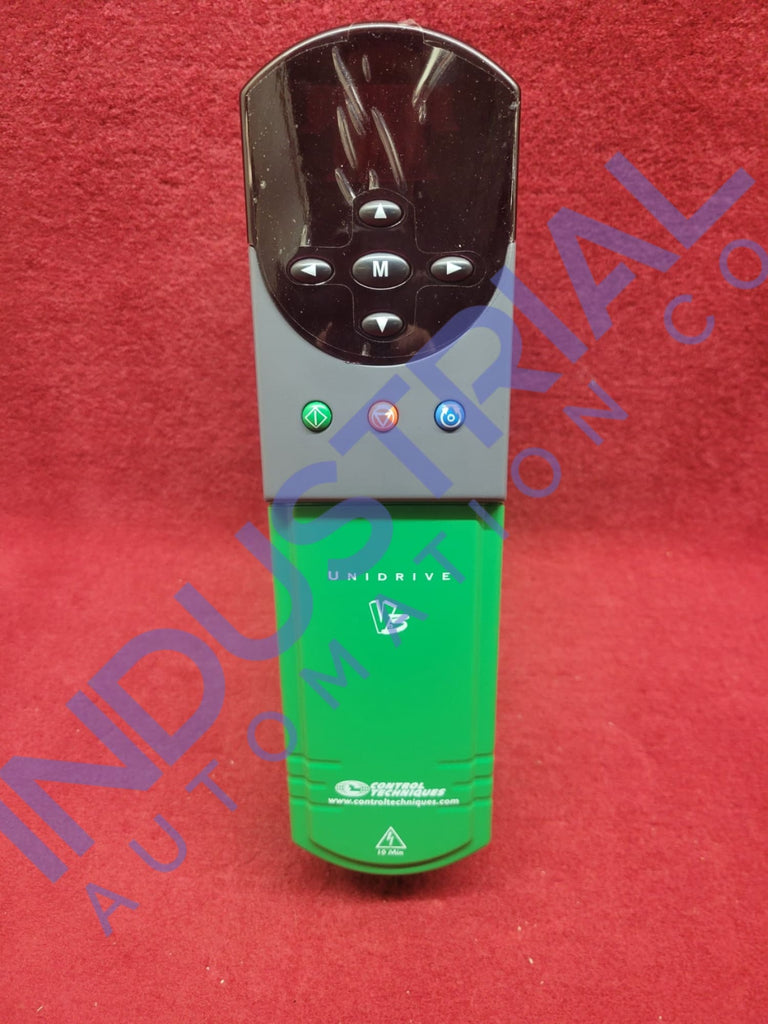

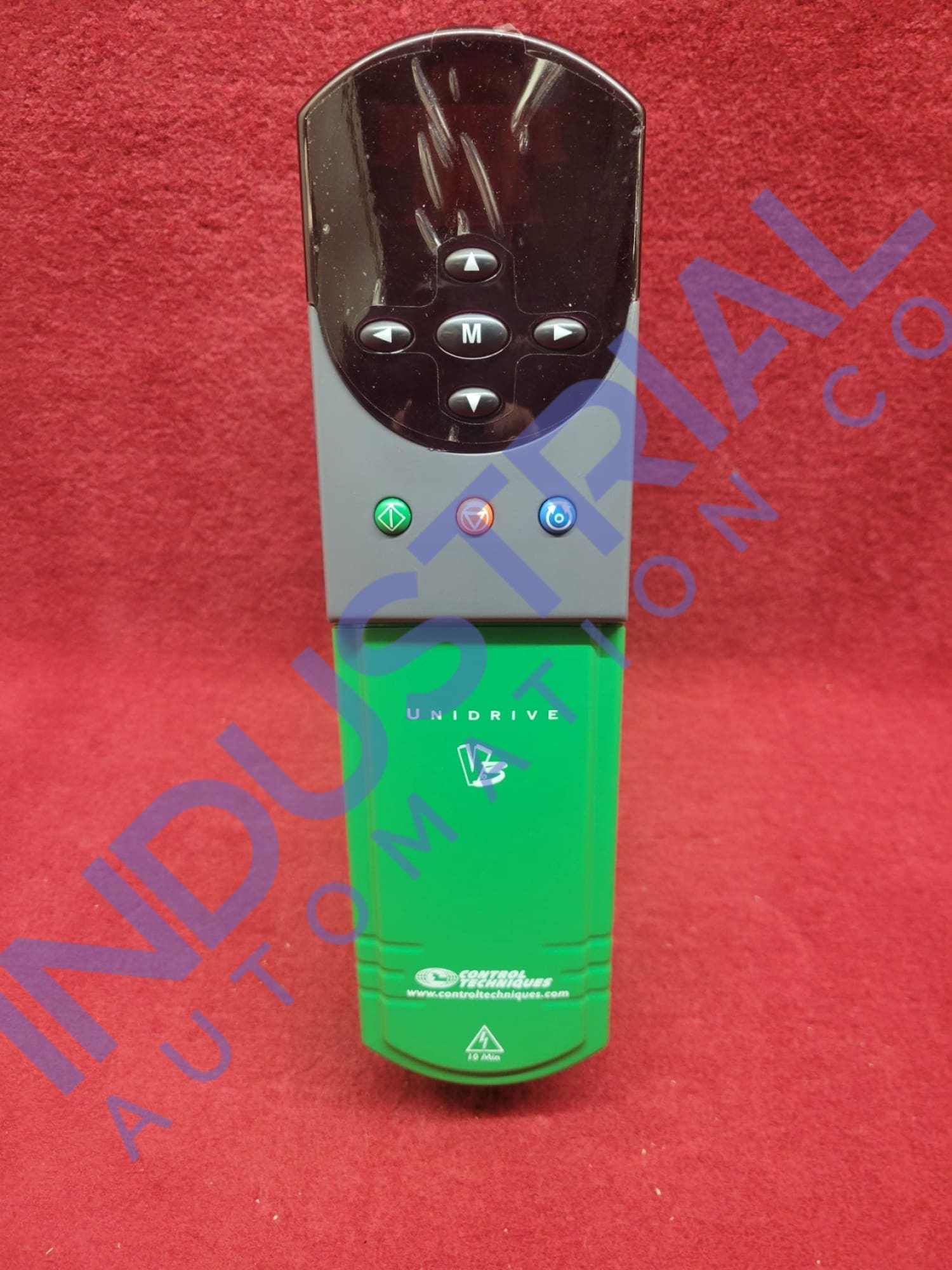

Control Techniques UNI1405

Control Techniques Uni1405 Refurbished
Control Techniques Uni1405
Control Techniques Uni1405 New Surplus

Control Techniques UNI1405

The Control Techniques Unidrive UNI1405 is an AC inverter designed for utilization in various industries. This inverter has five modes, including open-loop V/F control and closed-loop flux vector control. Advanced autotuning, intelligent thermal modeling, and eight preset settings provide peak performance. With pre-configured MACROs for easy setup and a wide range of alternative modules, the model offers remarkable flexibility and control, making it an excellent choice for HVAC fans, pumps, and high-performance applications.

Technical Specifications:

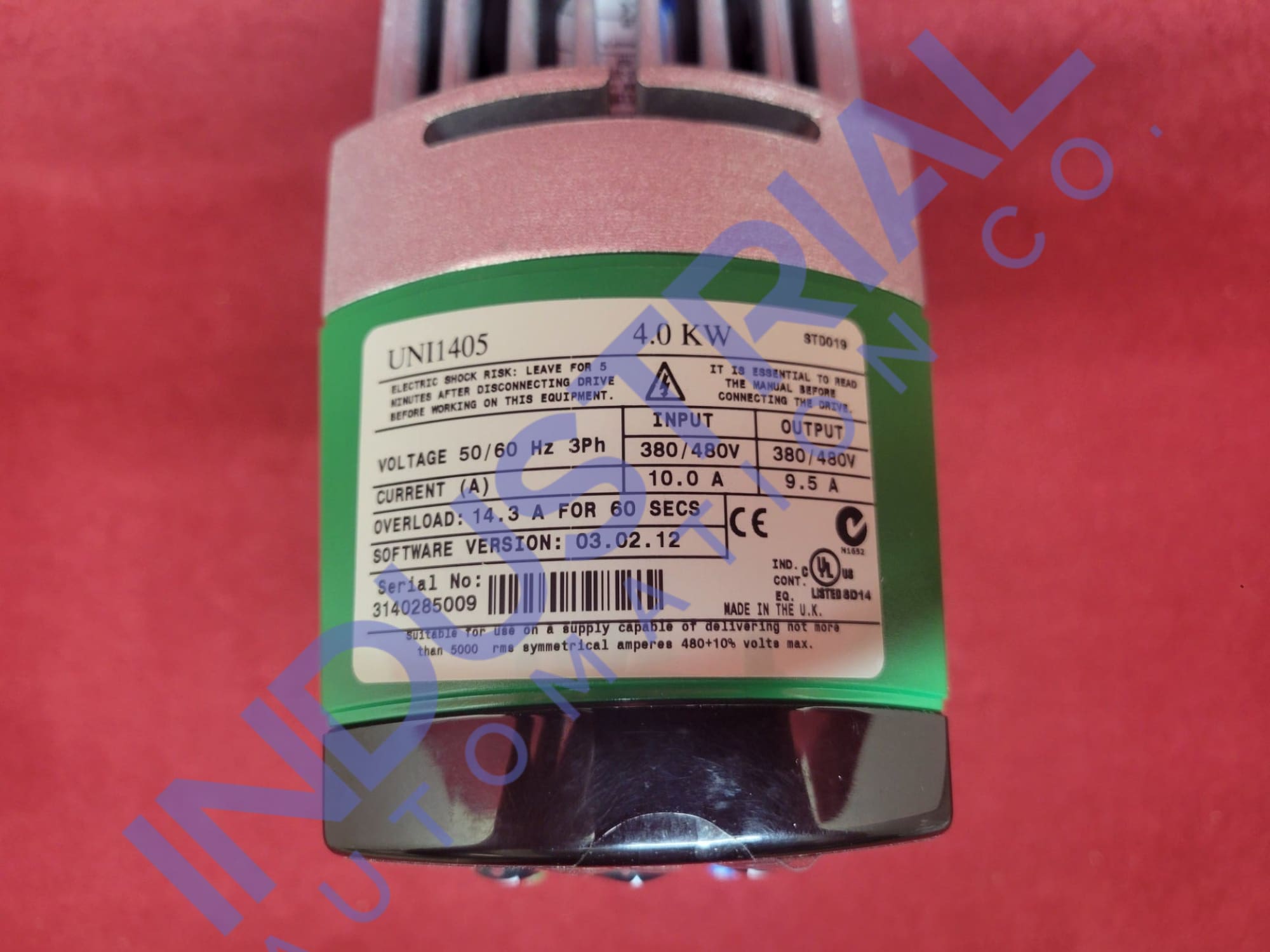

The Unidrive UNI1405 inverter uses a three-phase AC supply voltage ranging from 380 to 480V. The inverter accepts typical input currents of 10 A. The recommended fuse rating is 16A, which provides safety and protection. For constant torque, the amp rating is 9.5 A, which refers to the current the inverter supplies to the motor while keeping a constant torque. The power for constant torque is 4 KW, with AWG-14 size cable.

The UNI1405 AC inverter has the best power-to-size ratio, which reduces panel costs. The Unidrive provides the same options across its power range to maximize versatility. Its innovative autotuning feature improves motor shaft performance while reducing noise. Intelligent thermal modeling improves flux vector drive performance with improved control algorithms.

Operational Parameters:

The UNI1405 has small dimensions, measuring 200 mm in depth, 95 mm in width, and 335 mm in height. The inverter weighs 4 kg (8.8 lbs.) and can handle both positive (PNP) and negative (NPN) logic types. The inverter comes with a keypad for easy use and accessibility. The inverter can operate in both open and closed-loop configurations.

The Control Techniques UNI1405 has two analog and three digital outputs. It also has three analog and three digital inputs, providing flexible control choices for various applications. It has five operating modes: open-loop v/f control, closed-loop flux vector control, open-loop space vector control, servo, and regeneration.

Key Features:

The UNI1405 inverter has position control and a digital lock. These features provide precise control over the position of a motor shaft. The inverter features programmable logic functions and two programmable thresholds. The inverter supports mains dip ride-through and frequency slaving. It also has a catch-a-spinning motor functionality, eight preset speeds, and acceleration and deceleration functions.

It also has three skip frequencies with customizable bandwidths and a speed reference sequencer. Configuring the 4kW Unidrive is simple thanks to pre-configured parameter sets known as MACROs. The inverter can be customized in minutes for various industry-standard applications utilizing MACROs. The Unisoft commissioning program allows you to inspect and adjust parameter values.

Frequently Asked Questions:

What are the protective features of the Control Techniques UNI1405 AC inverter?

The UNI1405 incorporates overcurrent, overvoltage, undervoltage, and thermal protection to assure safe operation. These integrated protections contribute to the integrity and durability of the inverter and the associated motor, promising smooth and safe operation in harsh industrial environments.

Is the Control Techniques UNI1405 AC inverter suitable for applications with high inertia loads?

The UNI1405's advanced control algorithms and power capacity allow it to manage heavy inertia loads successfully. Its high power capacity indicates it can provide enough torque to start and stop big loads efficiently.

Can the Control Techniques UNI1405 be used in regenerative braking applications?

This inverter features regenerative braking, which allows energy to be returned to the power supply. It efficiently converts vehicle kinetic energy to electrical energy while braking.

Product Specifications Table

Specification Attribute
Typical Input Current 10 A
Maximum Continuous Input Current 12 A
Fuse Rating 16 A
Amp Rating for Constant Torque 9.5 A
Power for Constant Torque 4 kW
Weight 4 kg (8.8 lbs)
Keypad Yes
Digital Inputs 3
Regenerative Braking Yes
Feedback Types Encoder, Resolver

Control Techniques UNI1405

Regular price
$1,990.00
Sale price
$1,990.00
Checkmark

In stock - Ships Today

Checkmark

Eligible for Next Day Delivery

Checkmark

Ships From Our North Carolina Warehouse

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

Control Techniques UNI1405

The Control Techniques Unidrive UNI1405 is an AC inverter designed for utilization in various industries. This inverter has five modes, including open-loop V/F control and closed-loop flux vector control. Advanced autotuning, intelligent thermal modeling, and eight preset settings provide peak performance. With pre-configured MACROs for easy setup and a wide range of alternative modules, the model offers remarkable flexibility and control, making it an excellent choice for HVAC fans, pumps, and high-performance applications.

Technical Specifications:

The Unidrive UNI1405 inverter uses a three-phase AC supply voltage ranging from 380 to 480V. The inverter accepts typical input currents of 10 A. The recommended fuse rating is 16A, which provides safety and protection. For constant torque, the amp rating is 9.5 A, which refers to the current the inverter supplies to the motor while keeping a constant torque. The power for constant torque is 4 KW, with AWG-14 size cable.

The UNI1405 AC inverter has the best power-to-size ratio, which reduces panel costs. The Unidrive provides the same options across its power range to maximize versatility. Its innovative autotuning feature improves motor shaft performance while reducing noise. Intelligent thermal modeling improves flux vector drive performance with improved control algorithms.

Operational Parameters:

The UNI1405 has small dimensions, measuring 200 mm in depth, 95 mm in width, and 335 mm in height. The inverter weighs 4 kg (8.8 lbs.) and can handle both positive (PNP) and negative (NPN) logic types. The inverter comes with a keypad for easy use and accessibility. The inverter can operate in both open and closed-loop configurations.

The Control Techniques UNI1405 has two analog and three digital outputs. It also has three analog and three digital inputs, providing flexible control choices for various applications. It has five operating modes: open-loop v/f control, closed-loop flux vector control, open-loop space vector control, servo, and regeneration.

Key Features:

The UNI1405 inverter has position control and a digital lock. These features provide precise control over the position of a motor shaft. The inverter features programmable logic functions and two programmable thresholds. The inverter supports mains dip ride-through and frequency slaving. It also has a catch-a-spinning motor functionality, eight preset speeds, and acceleration and deceleration functions.

It also has three skip frequencies with customizable bandwidths and a speed reference sequencer. Configuring the 4kW Unidrive is simple thanks to pre-configured parameter sets known as MACROs. The inverter can be customized in minutes for various industry-standard applications utilizing MACROs. The Unisoft commissioning program allows you to inspect and adjust parameter values.

Frequently Asked Questions:

What are the protective features of the Control Techniques UNI1405 AC inverter?

The UNI1405 incorporates overcurrent, overvoltage, undervoltage, and thermal protection to assure safe operation. These integrated protections contribute to the integrity and durability of the inverter and the associated motor, promising smooth and safe operation in harsh industrial environments.

Is the Control Techniques UNI1405 AC inverter suitable for applications with high inertia loads?

The UNI1405's advanced control algorithms and power capacity allow it to manage heavy inertia loads successfully. Its high power capacity indicates it can provide enough torque to start and stop big loads efficiently.

Can the Control Techniques UNI1405 be used in regenerative braking applications?

This inverter features regenerative braking, which allows energy to be returned to the power supply. It efficiently converts vehicle kinetic energy to electrical energy while braking.

Product Specifications Table

Specification Attribute
Typical Input Current 10 A
Maximum Continuous Input Current 12 A
Fuse Rating 16 A
Amp Rating for Constant Torque 9.5 A
Power for Constant Torque 4 kW
Weight 4 kg (8.8 lbs)
Keypad Yes
Digital Inputs 3
Regenerative Braking Yes
Feedback Types Encoder, Resolver
