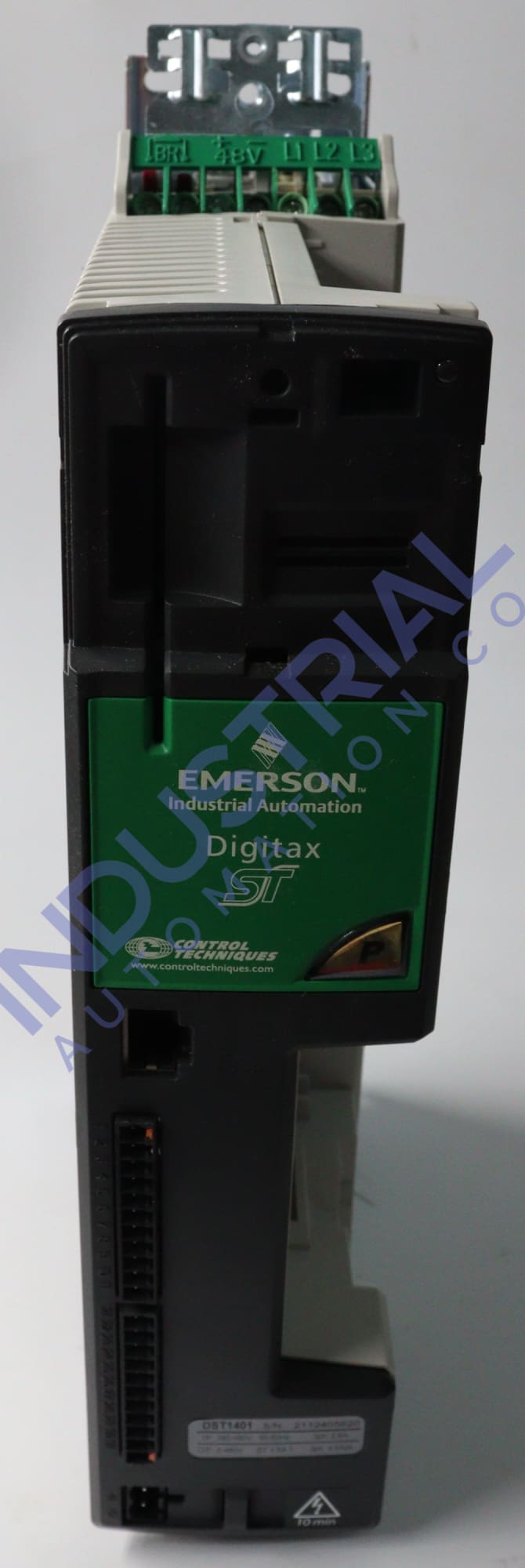

Control Techniques DST1401P
Control Techniques DST1401P
The Control Techniques DST1401P is a highly efficient AC servo drive system tailored for various industrial applications. Known for its durability and reliability, it ensures precise motor control, boosting both productivity and operational efficiency.
Technical Specifications:
The Control Techniques DST1401P runs on a 380/480 V AC drive supply voltage, fitting well with diverse industrial power systems. This voltage range ensures compatibility, enabling smooth integration into existing setups. The inclusion of a dynamic braking transistor enhances the drive's capability to handle sudden stops and deceleration, providing improved safety and control in high-performance applications.
The drive system accommodates multiple feedback types, such as incremental and absolute encoders, ensuring precise motor control and positioning for diverse industrial automation needs. With a 1 hp rating for heavy-duty applications, the DST1401P is built to tackle demanding tasks while maintaining efficiency and reliability.
Safety is a key feature of the DST1401P, equipped with one safety input for Safe Torque Off (STO). This feature ensures that the drive can quickly and safely shut down in emergencies, protecting both equipment and personnel. The drive includes various I/O option cards like SM-I/O-32, SM-I/O-120V, SM-I/O-24V, SM-I/O-LITE, SM-I/O-PLUS, and SM-I/O-TIMER. These options offer extensive configuration flexibility to meet specific application needs.
The DST1401P includes three configurable digital I/Os for versatile control and integration. Its 50/60 Hz input frequency ensures global power supply compatibility. The optional DST keypad simplifies monitoring and parameter adjustments, enhancing user experience.
The Control Techniques DST1401P operates with a nominal current of 1.5A RMS and can handle peak currents up to 4.5A RMS. This robust performance ensures consistent operation during normal conditions and effective management of higher loads during peak periods.
Ambient Conditions:
The Control Techniques DST1401P is built to function dependably in a range of industrial environments. It operates efficiently between 32°F and 104°F without any loss of performance, guaranteeing steady operation under diverse conditions.
Humidity is also a key factor in the drive's performance. The DST1401P is engineered to operate effectively in environments with relative humidity between 5% and 95%, non-condensing. This capability ensures it can handle humid conditions without compromising performance, making it suitable for both dry and damp climates.
Applications of DST1401P:
The Control Techniques DST1401P is ideally suited for a variety of industrial applications where precise motor control and reliability are paramount.
In the printing industry, the DST1401P ensures precise control of printing processes, keeping different machinery parts synchronized for high-quality prints and reduced waste, thereby boosting efficiency.
For packaging, the DST1401P offers the exact control needed for tasks like sealing, cutting, and filling. Its consistent performance under varying loads ensures smooth and efficient operations, increasing throughput.
In conveyor synchronization, the DST1401P's precise motor control maintains correct speed and positioning, essential for timing-critical operations such as assembly lines and material handling systems.
For applications involving flying shears and rotary knives, the DST1401P excels at maintaining precise timing for on-the-fly cutting. Its dynamic braking, and adaptive control algorithms facilitate quick adjustments, ensuring clean cuts and minimal material waste.
Frequently Asked Questions:
What is the weight of the Control Techniques DST1401P, and how does it affect installation?
Weighing just 4.6 lbs, the DST1401P is easy to operate and lodge, even in tight spaces or specific orientations. Its lightweight design simplifies maintenance and replacement.
What are the available mounting types for the DST1401P, and which applications are they best suited for?
The Control Techniques DST1401P supports two mounting options: standard and bookcase. The standard mounting is versatile for various setups, while the bookcase mounting is perfect for compact installations, such as control cabinets or space-constrained environments.
What are Configurable Digital Inputs/Outputs (DIOs) on the DST1401P?
On the DST1401P, configurable DIOs are pins that can be programmed to function as either digital inputs or digital outputs, depending on the requirements of your application. This flexibility allows efficient use of the microcontroller's pin resources.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Series | Digitax ST Plus |
| Voltage | 380/480 V AC |
| Horse Power | 1 HP (Heavy Duty) |
| Mounting Type | Standard, Bookcase |
| Feedback | Incremental Encoder, Absolute Encoder |
| Ambient Temperature Range | 32°F to 104°F (0°C to 40°C) |
| Weight | 4.6 lbs (2.1 kg) |
| Communication Interface | Modbus RTU, CTNet, CANOpen, DeviceNet, EtherNet/IP, Modbus TCP/IP, EtherCAT, PROFIBUS DP, PROFINET RT |
| Input/Output Current | 1.5 A (Continuous), 4.5 A (Peak) |
| Input/Output Frequency Range | 50/60 Hz |
