Description

  • A06B0113B075
  • SERVO MOTOR
  • AC MOTOR
  • AC SERVO MOTOR B0.5/3000 A32B
  • AC MOTOR TYPE B0.5/3000
  • STRAIGHT SHAFT
  • A32B ENCODER
  • CNC

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.

Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
New Surplus A06B-0113-B075-NS 2 Year Extended Warranty Call for Availability Call for Availability (877)-727-8757
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

Quick Search

TECHNICAL SPECIFICATIONS

FANUC A06B-0113-B075

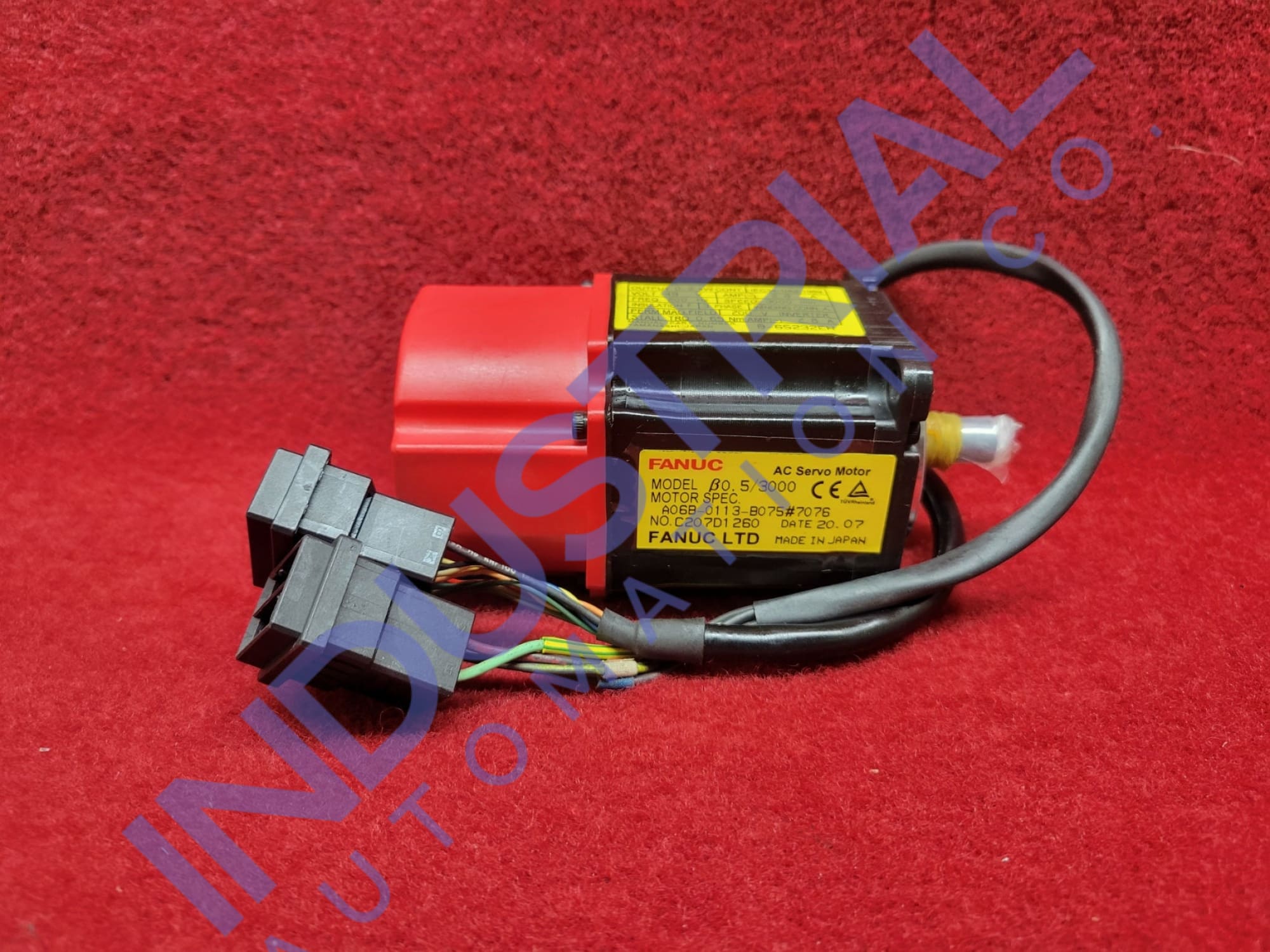

This FANUC AC servo motor A06B-0113-B075 is economical for controlling industrial machines and machine tools' peripheral devices, offering dependable performance with many features.

This A06B-0113-B075 servo motor is an essential tool for precise applications where accuracy and high-quality performance are paramount. Careful installation and assembly are necessary to ensure the detector operates at optimum capacity.

Technical Description of A06B-0113-B075:

The motor A06B-0113-B075 offers an impressive rotational speed of up to 3000 revolutions per minute and a frequency of 200 Hz, enabling accurate precision positioning thanks to the addition of an optical encoder with resolutions as fine as 32,768 divisions per revolution.

The model A06B-0113-B075 generates a torque of 0.65 Nm consuming 2.8 A of current, and a thermal function acts as an alarm to safeguard against sudden overheating in the motor caused by any irregular currents it may encounter.

The A06B-0113-B075 model is equipped with F-class insulation and an oil seal at the shaft to prevent foreign matter from infiltrating the motor.

The motor packs a powerful 0.2 kW punch into its small physique due to the utilization of high-performance magnets and increased frame size. This combination can generate impressive power while consuming only 2.8 A, producing highly efficient results.

With a moment of inertia of 0.000017 kgm2 and constant torque measuring in at 0.23 Nm/A, this model A06B-0113-B075 is powerfully precise, boasting both an exemplary mechanical time constant of just .0007 seconds while maintaining the thermal stability with its 10-minute temperature control capability - embodiment efficiency.

Boasting a lightweight design and powerful performance, this A06B-0113-B075 model weighs just 1 kg yet can generate up to 3.4 Nm of torque thanks to its impressive 0.04 Nm static friction rating - not forgetting that it has an incredible maximum current capacity of 19 A.

Ambient Conditions:

The motor A06B-0113-B075 can be securely installed up to a remarkable 1,000-meter peak without extra precautions. If operating beyond this height, the ambient temperature must drop by one degree Celsius for every 100 meters higher than 1000 m - ensuring reliable operation at any altitude.

With the motor temperature, it is essential to maintain a balanced range between -10°C and 40°C while operating. If it exceeds this threshold, be sure to reduce the output power to preserve the intended constant value of your model.

General Safety Precautions:

Make sure to properly connect the motor A06B-0113-B075 with a power line and keep flammable objects away from it. To prevent electric shocks, ground the machine by connecting its terminal box's grounding terminal. Failure to do so could lead to combustion or explosions.

Protecting the motor surface from cutting fluid or lubricants is essential for preventing damage. The use of a cover will guard against any unwanted moistening. However, complete prevention requires more than just your standard telescopic sliding part covers.

To ensure a machine's safe and efficient operation using the A06B-0113-B075 motor, it is essential to exercise caution when maneuvering or moving that component. Using excessive force can break both components. Furthermore, they must take special care to avoid exerting stress on themselves, as such exertion risks damaging insulation or destroying other key elements integral to optimal performance.
