FANUC A06B-0265-B100
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Description
FANUC A06B-0265-B100

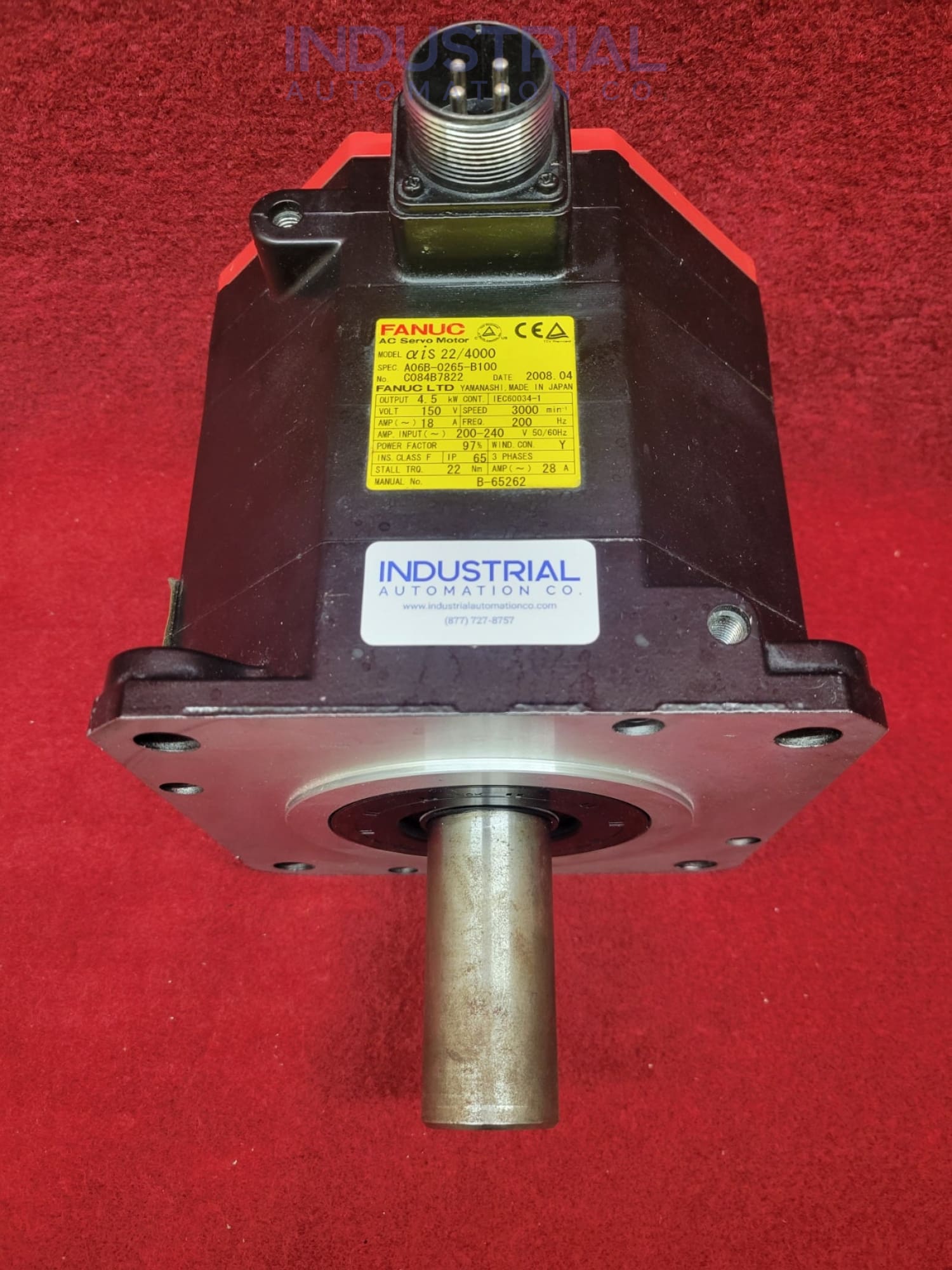

The FANUC A06B-0265-B100 is a tapered shaft servo motor used in industry due to its efficient performance and precision controlling ability. It belongs to the FANUC Alpha Series, which is essential in automated control and accurate positioning in machining and robotics.
Technical Details:
The A06B-0265-B100 is widely used in the industry because it works on an impressive power rating of 4.5 kW. The motor can achieve a maximum of 4000 rpm while maintaining a continuous torque of 22 Nm. The motor works at 200V and a current of 27.9 A ensures that it meets the demand of most industrial applications.
The A06B-0265-B100 is designed under a frame size of 100mm. This motor has a high-precision encoder called an absolute encoder with multi-return capabilities. This encoder ensures accurate feedback for precise control of position rpm and torque. The shaft diameter of the motor is 22mm, with a keyway for coupling.
Thermal management is a critical aspect of the FANUC A06B-0265-B100 servo motor. Its finned housing design enhances heat dissipation. The motor can withstand the temperature of 155°C. The motor is resistant to water and dust with a rating of IP65, which is required for harsh industrial environments.
The motor is controlled by three signals: pulse train, analogue, and enable signals. The pulse signal is used to modulate the pulse width to control the speed and direction of the motor. Analogue signals also control motor speed and torque. The third signal is used to activate the motor.
Compatibility and Integration:
The FANUC A06B-0265-B100 is designed to seamlessly integrate with FANUC's range of servo amplifiers and CNC controllers. It is commonly paired with amplifiers such as the FANUC A06B-6087-H126, which provides the necessary power and control signals.
This compatibility ensures that the motor can be easily integrated into existing systems, reducing setup time and complexity. The motor's electrical connectors and mounting interfaces are standardised, further simplifying the installation process.
FANUC's extensive support network ensures that users can access technical assistance and spare parts, further enhancing the motor's reliability and longevity.
Applications:
The versatility of the FANUC A06B-0265-B100 makes it suitable for a wide range of applications. It is used in CNC, milling, and grinders for machining and other operations to achieve precise and efficient tool movement.
The servo motor is used in robotics and automated production lines to perform tasks such as assembly, welding, material handling, packaging, inspection, and sorting operations. Its fast speed and precise control ensure smooth and accurate operation.
In textile machinery, the FANUC A06B-0265-B100 servo motor precisely controls weaving and knitting machines. The armature resistance of 0.075 ohms, ensures accurate fabric tension and speed control, enhancing product quality.
Frequently Asked Questions:
What are the power specifications of the FANUC A06B-0265-B100 servo motor?
The FANUC A06B-0265-B100 operates at a rated voltage of 200V and a current of 27.9A, delivering a power output of 4.5 kW, suitable for high-speed and high-torque applications.
The A06B-0265-B100 features an absolute encoder providing high-resolution feedback for accurate position, speed, and torque control, essential for CNC and robotic applications.
Is the FANUC A06B-0265-B100 suitable for harsh environments?
Yes, the A06B-0265-B100 has an IP65 protection rating and insulation class F, ensuring reliability in dusty and moist industrial settings.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Manufacturer | FANUC |
| Series | Alpha Series |
| Armature Resistance | 0.075 ohms |
| Power Output | 4.3KW |
| Rated current | 27.9A |
| Voltage Range | 200-230V |
| Frequency Range | 50-60Hz |
| Shaft Diameter | 22 mm |
| Net Weight | 17kg |
| Stated Friction rate | 0.8Nm |
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
FANUC A06B-0265-B100
This FANUC AC servo motor A06B-0265-B100 offers a unique combination of high-speed and precision accuracy, perfect for powering the feed axis of any machine tool - from large to small.
The model A06B-0265-B100 has been upgraded with a new magnetic pole shape, which creates an incredibly smooth rotation by significantly reducing torque ripple.
Technical Description of A06B-0265-B100:
With a back EMF constant of 28 V/1000 min-1 and torque constant of 0.79 Nm/A, this model A06B-0265-B100 guarantees unbeatable waterproofing with its use of FANUC's unique stator seal coupled with waterproof connectors - effectively blocking any liquid such as coolant from entering the motor interior.
The model A06B-0265-B100 has an impressive thermal time constant of 30 minutes, making it rapid and efficient. With a mechanical time constant of just 0.002 seconds, these results are more than extraordinary. Weighing in at 17 kgs with static friction rated up to 0.8 Nm., this dynamic engineering marvel will manage any application.
The motor A06B-0265-B100 produces a robust 4.5 kW power output while using minimal energy resources. A thermal monitoring system ensures the motor's temperature remains stable to protect against sudden current increases within its operational circuits.
The FANUC motor A06B-0265-B100 is equipped with a powerful 76 Nm maximum torque and 0.0052 kgm2 moments of inertia to ensure reliable performance at up to 4000 revolutions per minute, mitigated by the armature resistance of 0.075 ohms for increased efficiency in operation.
The model A06B-0265-B100 provides an impressive 22 Nm of stall torque while using only a mere 27.9 A current draw, ensuring powerful performance with minimal resource consumption. And don't worry about dust or liquid damage - its IP65 rating grants it superior protection against both.
The AC servo motor has an insulation class of F, and a tapered shaft with an oil seal which helps to protect the motor from foreign matter, including lubricants.
The A06B-0265-B100 motor's performance is remarkable, boasting a rated speed of 3000 revolutions per minute and a frequency of 200 Hz. Moreover, it has high-resolution pulse coding capabilities to ensure precise positioning accuracy.
The 3-phase voltage supply of the motor has been optimized to run effectively between 200 and 230 V while maintaining a frequency of 50/60 Hz. Maximum output torque remains uncompromised despite an impressive reduction in rotor inertia, granting superior acceleration performance.
Ambient Conditions- Installation and Operating:
You can successfully initialize the motor without extra attention at elevations up to 1000 meters. Should it rise higher than that, however, operators must consider a decrease in ambient temperature by one °C for every 100-meter increase above sea level, as this could affect its effectiveness.
The ideal operating temperature for the motor is -10 to 40°C. To ensure optimal performance, reduce output power if temperatures exceed the set constant value.
Standard Storage and Usage Cautions:
Protect the motor A06B-0265-B100 by storing it in a dry, temperature-controlled environment. To ensure optimal workability of the components over time, keep the shaft horizontal and point the terminal box upwards.
Before using the A06B-0265-B100 motor, it is essential to assess its winding and insulation resistances for quality assurance. It becomes even more pertinent if the device has been kept in storage for longer, as deterioration may have occurred due to environmental factors or time elapsed.
