TECHNICAL SPECIFICATIONS

FANUC A06B-0377-B675#7075

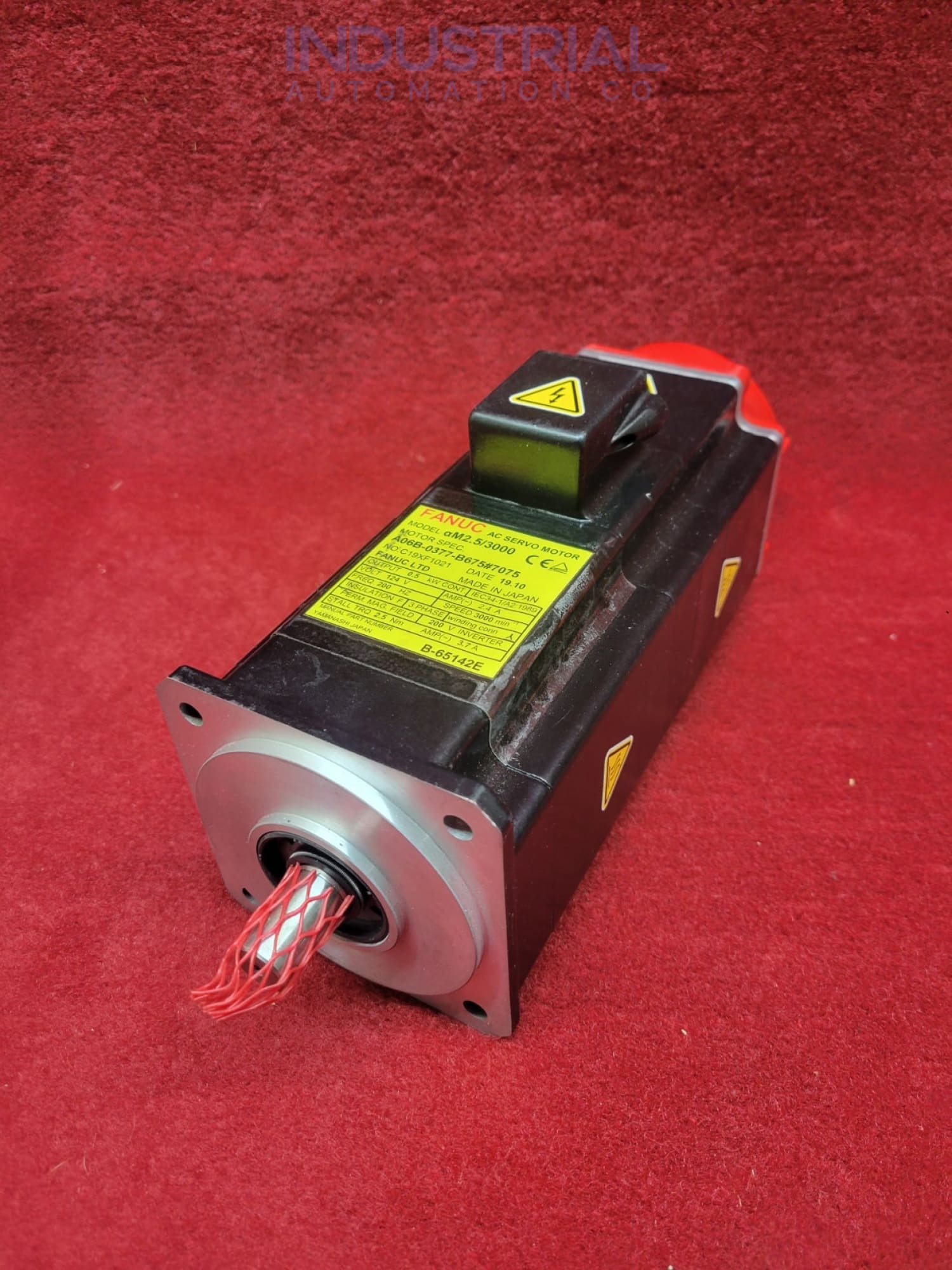

This AC servo motor A06B-0377-B675#7075 is the perfect economical choice for controlling peripheral devices of industrial machines and machine tools. With numerous features as its backbone, it guarantees exceptional performance in various applications.

This motor A06B-0377-B675#7075 is designed with top-tier magnets with an enlarged frame, enabling it to deliver high power while remaining lightweight in design.

Technical Description of A06B-0377-B675#7075:

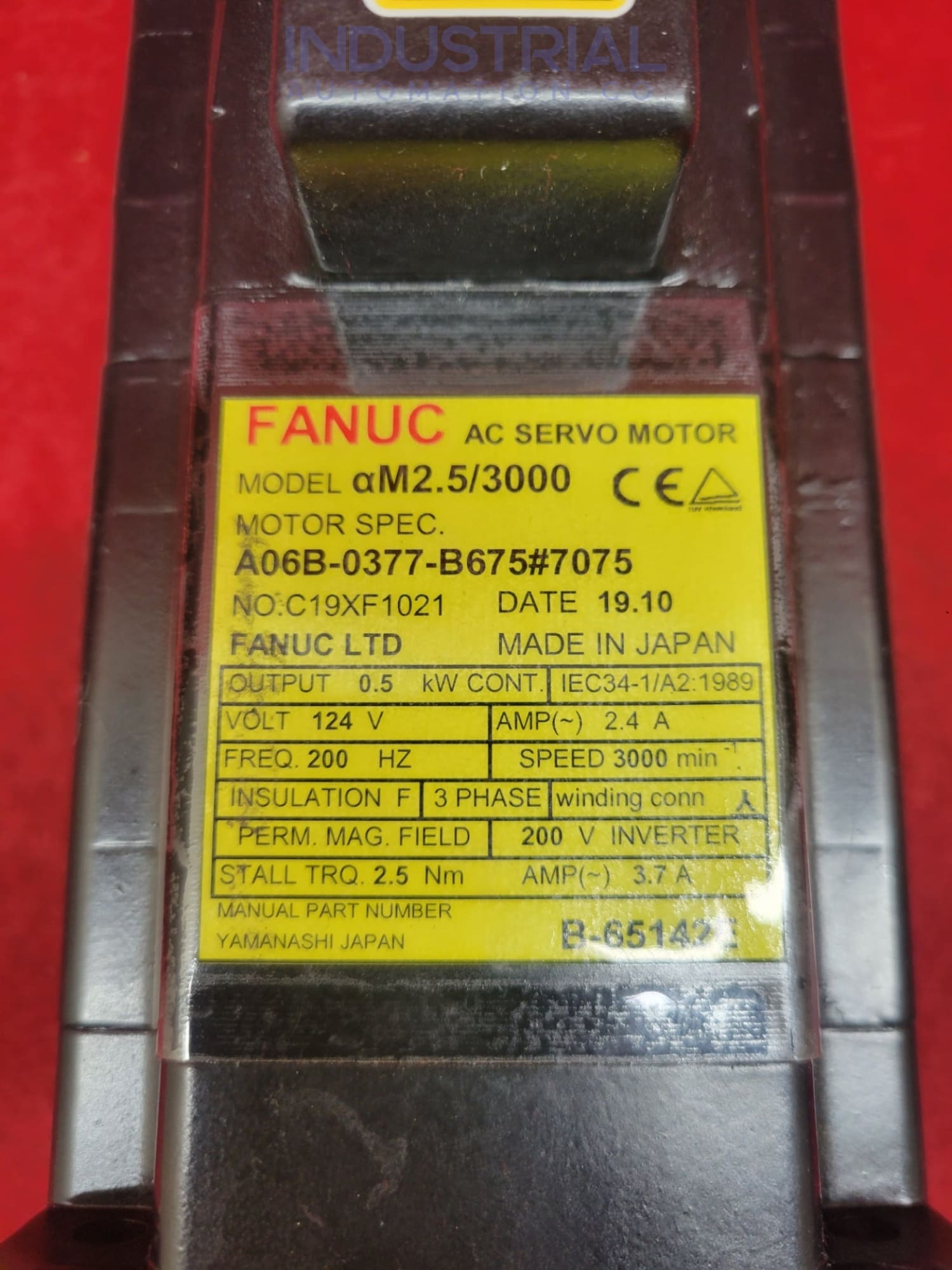

This motor A06B-0377-B675#7075 provides a 0.5 kW output, drawing only 2.4 A of current for an efficient energy level, and offers remarkable precision with its included high-resolution pulse coder as standard.

The motor A06B-0377-B675#7075 efficiently reaches 3000 revolutions per minute and is engineered to an impressive 200 Hz frequency. Its precision-crafted shaft features superior oil sealing, ensuring debris-free operation for a prolonged lifespan.

The model A06B-0377-B675#7075 must be supplied with an exact voltage of 200V from a 3-phase source for optimal function. With an F insulation class and powerful detector, constructing the servo motor necessitates extra caution to ensure utmost precision.

To ensure optimal motor performance, a thermal function is critical. It monitors for abnormal current heat production to protect against sudden temperature spikes; this system empowers the model to produce 2.5 Nm of torque while only drawing 3.7 Amps of electricity - making it efficient and reliable.

Ambient Conditions:

The motor A06B-0377-B675#7075 should be comfortable between -10 to 40°C while in use, with extra care needed when the temperature rises. Reduce the output power as necessary to ensure safe operation.

Installing the A06B-0377-B675#7075 motor up to a maximum height of 1,000 meters is possible without any further provisions for attitude; however, temperature adjustments are necessary when operating it at higher altitudes. Subsequently, reducing ambient temperatures by one degree Celsius must be completed every 100 meters above 1,000 m to guarantee optimal performance.

To ensure optimal performance, store the motor indoors within a temperature range of -20 °C to +60 °C. It ++will shield against any foreign particles like dust and small debris that may cause malfunctions.

General Wiring and Handling Precautions:

To safely connect the A06B-0377-B675#7075 motor to its electric wires, ensure it is first isolated from any power source and the machine frame grounded. Properly connect all grounding terminals in the terminal box and the motor to prevent potential shocks during usage.

Securely fasten the power wires and short bars to the terminal block using the designated torque for a safe connection. Insufficient tightening may cause an abnormally hot terminal, risking potential fire or, even worse- severe electric shock due to ground fault or short circuit issues.

For the highest potential voltage efficiency, connecting your motor to its power source requires a precisely calculated wire diameter. You can also consult the FANUC A06B user manual for a better understanding of wiring and motor installation.

Adhering to safety protocol is paramount when handling a motor. Ensure you are properly dressed, with the appropriate footwear and gloves, as any edge or protrusion on it could result in serious injury. Do not let moist hands contact the motor to ensure safety, which can cause electric shocks. Please observe this precautionary step at all times.
