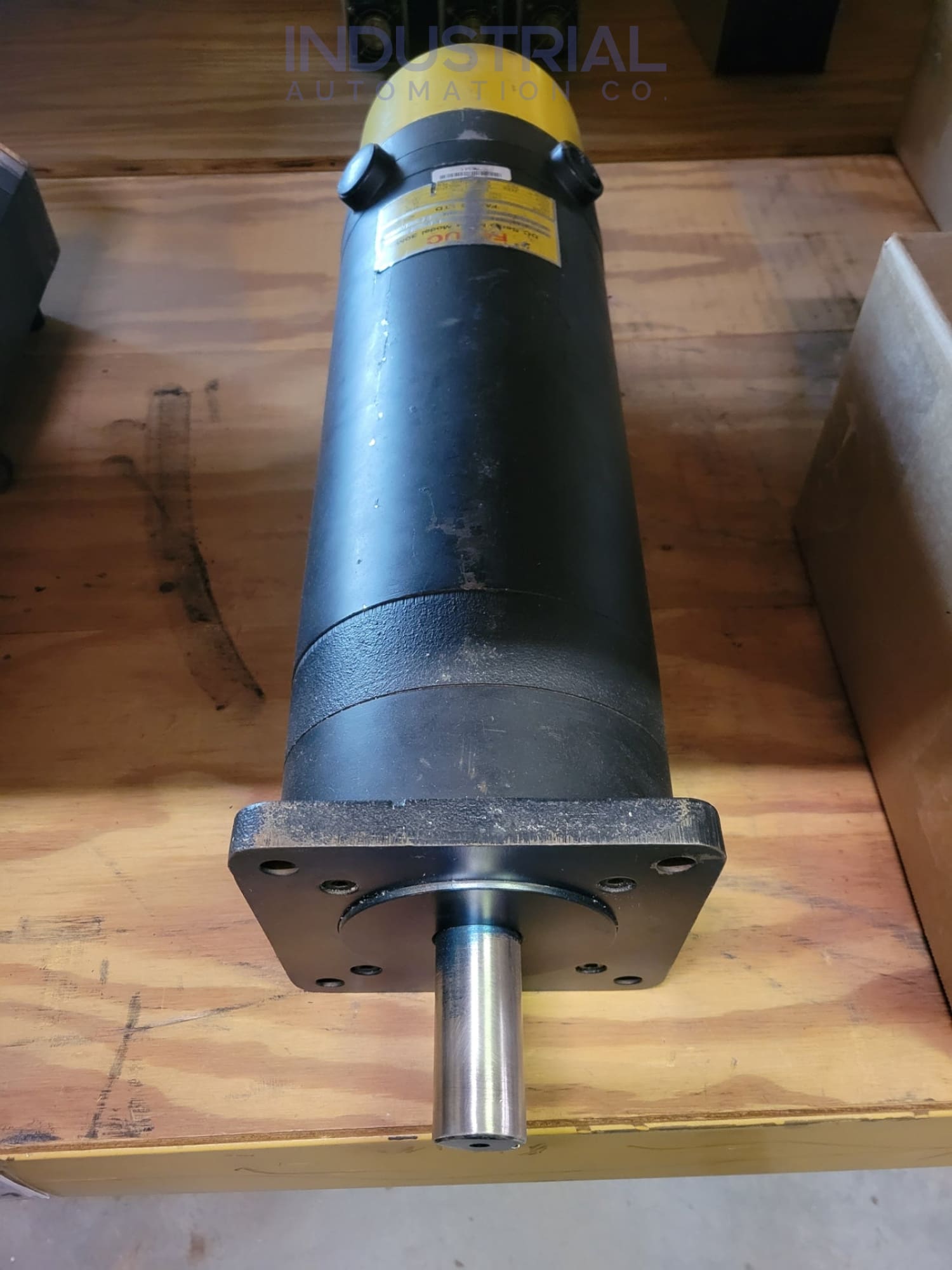

FANUC A06B-0572-B077

Fanuc A06B-0572-B077
Fanuc A06B-0572-B077

FANUC A06B-0572-B077

Regular price
$5,301.00
Sale price
$5,301.00
We currently have 1 in stock.
Checkmark

In stock - Ships Today

Checkmark

Eligible for Next Day Delivery

Checkmark

Ships From Our North Carolina Warehouse

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

  • A06B0572B077
  • DISCONTINUED BY MANUFACTURER
  • SERVO MOTOR
  • AC MOTOR
  • AC SERVO MOTOR AL50/2000 I64
  • AC MOTOR MODEL AL50/2000 STRAIGHT SHAFT
  • I64 ENCODER
  • 6.0 KW
  • 143 VAC
  • 30 AMP
  • 133 HZ
  • 2000 RPM
  • 3 PH
  • 50 NM STALL TORQUE
  • CNC

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.

Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
IAC Certified Refurbished A06B-0572-B077-R $5,301.00 USD 2 Year Extended Warranty 1 In Stock in US!
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

Quick Search

TECHNICAL SPECIFICATIONS

FANUC A06B-0572-B077



This FANUC AC servo motor A06B-0572-B077 is built to provide superior performance at high speeds. The motor utilizes the latest neodymium ferrite magnet to minimize rotor inertia, resulting in superior acceleration capabilities.

Technical Description of A06B-0572-B077:

The A06B-0572-B077 motor's impressive 50 Nm stall torque and 0.0098 kgm2 moments of inertia ensure powerful motion at a rated speed of 2000 revolutions per minute, all with an armature resistance as low as 0.038 ohms.

The A06B-0572-B077 model holds impressive thermal and mechanical efficiency with a time constant of 70 minutes and 0.001 seconds for the latter, weighing in at 42 kgs while providing 1.8 Nm during static friction operations. Additionally, its back EMF is rated to be 33 V/1000min-1 alongside an excellent torque constant of 0.96 Nm/A.

The A06B-0572-B077 motor produces an impressive power output while consuming only 2.4 A, thanks to its integration of a high-resolution pulse coder for precise positioning of the shaft, which an oil seal protects from any unwanted foreign matter.

The model A06B-0572-B077 requires a 200 V, 3-phase power supply for operation. Waterproof connectors and FANUC's specially designed stator seal ensure that no coolant or any other liquid gets into the motor to guarantee robust waterproofing.

The A06B-0572-B077 AC servo motor features an impressive insulation class F and a power factor of 97%, creating optimal functionality. We have also redesigned the magnetic pole shape to minimize torque ripple, delivering incredibly smooth rotation performance.

Ambient Conditions:

Motor operations must remain within the recommended ambient temperature range of -10°C to 40°C. If operators anticipate a higher operating temperature, they should reduce power output accordingly to maintain consistent temperatures and preserve optimal performance.

The A06B-0572-B077 motor is designed to reach remarkable heights of up to 1,000 meters above sea level without any complex provisions for attitude. As long as the temperature drops by one °C each 100-meter increment past this height limit, special care while operating it at higher levels is unnecessary.

To ensure the optimal performance of the A06B-0572-B077 motor, store it in a temperature-controlled indoor environment ranging from -20 °C to +60 °C. It will protect against any damage due to particles and dust that could potentially corrode its components.

General Wiring and Handling Precautions:

securely attaches power wires and short bars to the terminal block using specified tightening torque. Not doing so can cause serious risks, such as an abnormal amount of heat buildup in the connection area or a disconnection that results in electric shock, ground fault, or even fire hazards.

Before making any electrical connections to the A06B-0572-B077 motor, taking the necessary precautions for your safety is essential. All power sources must be completely disconnected and grounded before connecting wires. Remember to underestimate this step - with a proper grounding of the machine's terminal box and frame, you risk serious electric shock.

To protect yourself when handling a motor, ensure that your clothing and footwear suit the task. Wearing safety shoes or gloves is recommended to guard against potential injury from any sharp edges or protrusions on the device and protect you from electric shocks - which can be dangerous if not taken seriously. Ensure that hands remain dry while interacting with the motor to reduce the risk of an electrical accident.
