TECHNICAL SPECIFICATIONS

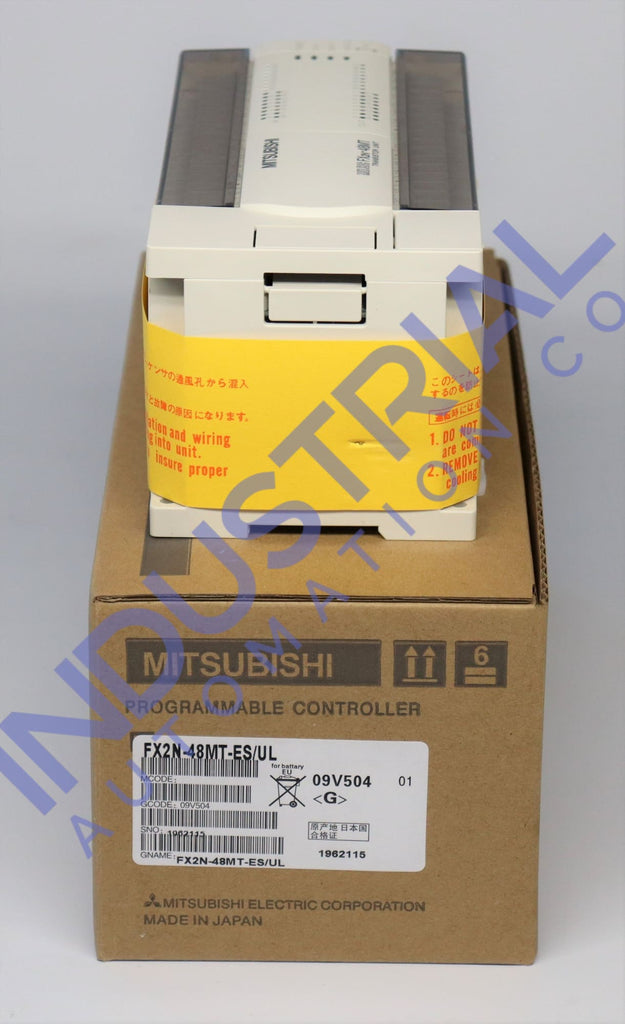

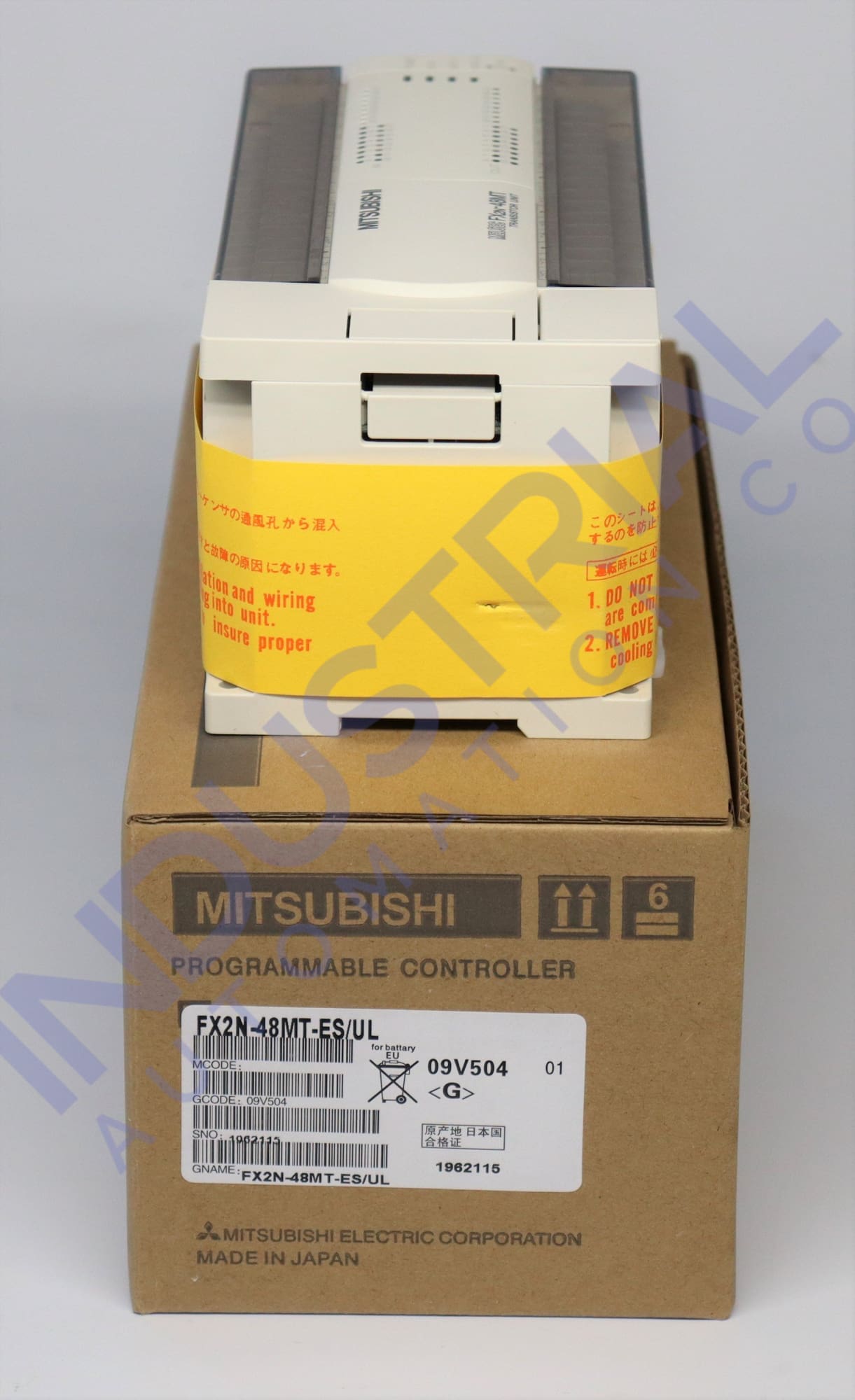

The FX2N-48MT-ES/UL model is a programmable controller from the FX family. It can be programmed to carry out a predetermined course of action. A control system's parts are known together as a programmable controller. Engineers may use different words to refer to the same control system, although PLC and programmable controllers are popular. The FX2N-48MT-ES/UL model operates by repeatedly looping through a user-defined internal program, during which it waits for inputs and produces outputs at predetermined intervals.

Technical Information

The FX2N-48MT-ES/UL model has a power consumption of 0.75 kW and works on a three-phase voltage of 400 V. The model features a substrate coating and is outfitted with the most recent high-speed processor, improving control performance and reaction speed to provide reliable and precise operation across various applications. The operation processing time of the model for the basic instructions is 0.08 microseconds and for the applied instructions is 1.52 to 100 microseconds. The model, FX2N-48MT-ES/UL programming language, is a symbolic relay language and step ladder. Producing a program in the SFC style may be accomplished by using a step ladder.

The model FX2N-48MT-ES/UL has an 8000 steps built-in program capability and can be expandable up to 16000 steps using an additional memory cassette. The model can swiftly adjust to changes in the speed of the manufacturing line, which allows it to avoid the phenomena of uneven winding. This contributes to the production of a consistent supply of items of high quality. The model FX2N-48MT-ES/UL contains 3072 points general, 2572 points latched, and 256 points special for the auxiliary relay (M coils). The model also has 500 points latched, 10 initial points, and 100 annunciator points for the state relay (S coils).

Software Version

The FX2N-48MT-ES/UL model's CPU unlocks a plethora of additional peripherals and programming options. Users must upgrade their existing software and hardware programming tools to use all the features. If you're looking to get the same performance out of your FX2N-48MT-ES/UL model as you would from a CPU unit running version 3.30, you won't need to upgrade your programming tools.

General and Safety Instructions

On the contrary, there are no limits on the number of serial or parallel connections connected to the PLC. But if the software is too big for the hardware, some programming panels and printers won't be able to show or print anything. Each line in the ladder program should contain at most 10 connections and one coil. This is because there is a limit on the total number of contacts in a ladder application. Try your best to keep the chain of subsequent outputs to at most 24.

To avoid any uncertainties, always verify whether there have been any cases of dual coiling. Due to the incompatibility of the two coils, the intended operation of the program cannot be guaranteed, and severe harm is possible. Engineers responsible for designing and building automated equipment employing the FX2N-48MT-ES/UL model should be competent, educated, and certified to do so by all applicable local, state, and federal regulations. These engineers need an in-depth familiarity with the risks associated with all aspects of the security of automated equipment.
