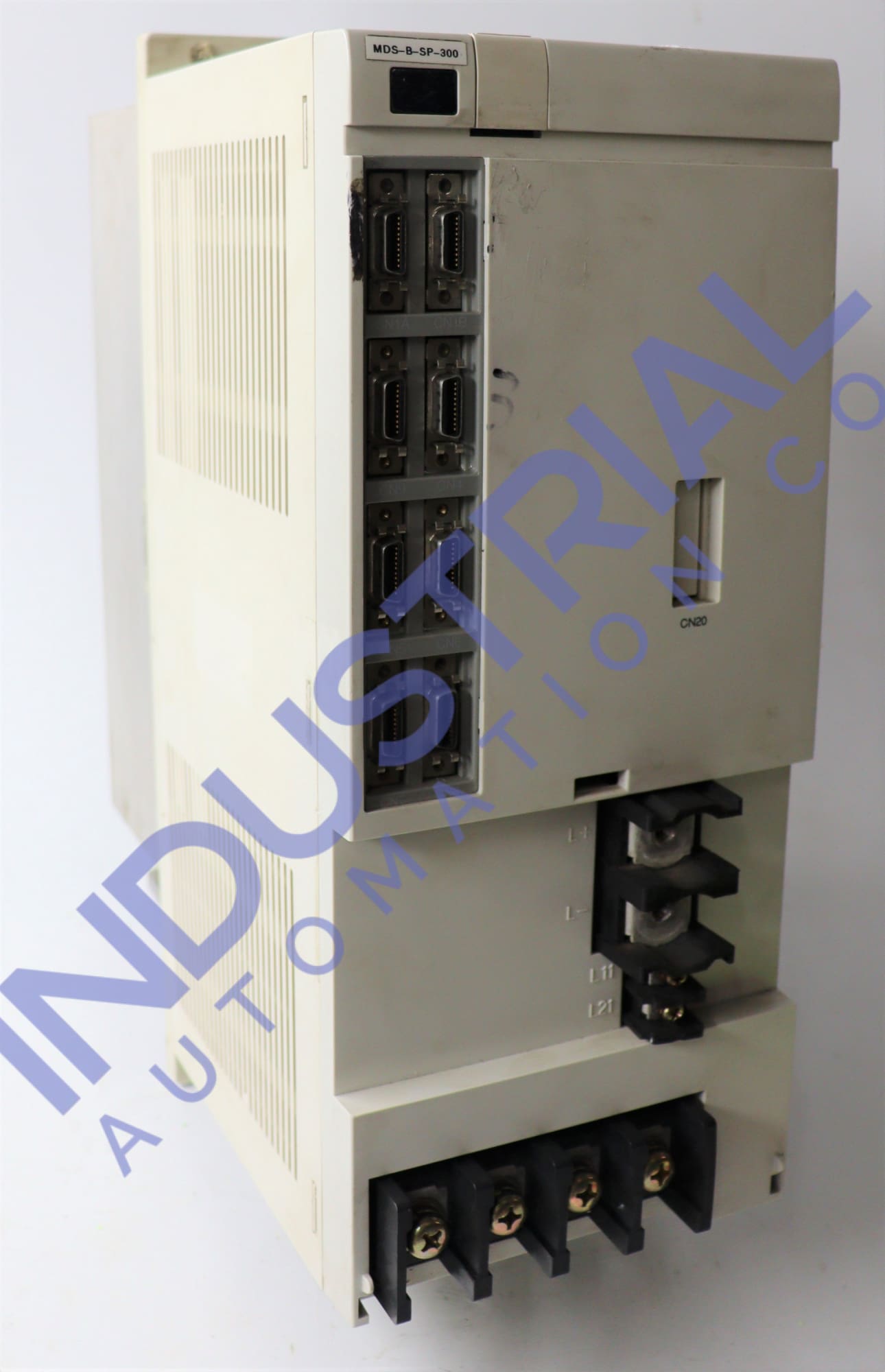

Mitsubishi MDS-B-SP-300

The Mitsubishi MDS-B-SP-300 is a high-performance spindle drive designed for precision and efficiency. It operates on a 3-phase AC 200-230V power supply, ensuring consistent and reliable power delivery. This spindle drive is part of the MDS-B Series, known for its sturdy construction and reliable performance.

Technical Details:

The MDS-B-SP-300 has a maximum current rating of 144 AMP and supports 50-60 Hz frequencies. It can operate efficiently in a humidity range of up to 90%, making it suitable for various industrial environments. The drive's design includes a dynamic braking system, which ensures safe and controlled stopping during emergencies.

The spindle drive is used in various industrial applications, particularly in machining centers and automated production lines. It precisely controls spindle motors, ensuring high-speed and accurate machining operations. The drive's robust design allows it to handle heavy-duty tasks, making it ideal for high-power and precision applications.

In terms of installation, the MDS-B-SP-300 is designed for easy setup and integration. It includes clear markings for terminal connections and supports horizontal and vertical mounting.

Reliability and Applications:

The MITSUBISHI MDS-B-SP-300 spindle drive is a reliable and efficient solution for industrial spindle control. It integrates seamlessly with other components in the MDS-B Series, such as spindle amplifiers and power supply units. Its sturdy construction, compatibility with various CNC systems, and precise control capabilities make it an excellent choice for demanding machining applications. The drive's advanced features and safety mechanisms ensure long-term durability and optimal performance in diverse industrial environments.

The MITSUBISHI MDS-B-SP-300 utilizes PWM control for precise and efficient operation. It supports incremental and absolute encoder feedback, enhancing its versatility and accuracy in various applications.

Safety and Precautions:

To avoid electric shocks, switch off the power and wait at least ten minutes before completing any wiring or inspections. Ground the spindle drive and associated components to Class 3 or above. Use nonmagnetic tools when working near the spindle drive to avoid magnetic interference. Avoid putting heavy things on the device.

To prevent overheating and fires, install the spindle drive on non-combustible material and provide adequate ventilation.

Do not touch the spindle drive with damp hands to prevent electric shocks, or use the machine with the front cover off. Avoid contacting the exposed high-voltage terminals or charged areas.

To avoid electric shocks and malfunctions, do not damage, stress, or place heavy items on the cables. Additionally, ensure proper heat dissipation to avoid overheating and not touch hot components immediately after power-off to prevent burns.

The MITSUBISHI MDS-B-SP-300 spindle drive incorporates several critical protection features to ensure safe and reliable operation. It includes overcurrent protection to prevent damage from excessive current flow and overheat protection to safeguard the drive from thermal damage.

Frequently Asked Questions:

What are the environmental conditions for operating the MDS-B-SP-300?

The MDS-B-SP-300 can operate efficiently in humidity levels up to 90% and within a temperature range of 0 °C to 55 °C.

What is the operating frequency range for the MDS-B-SP-300?

The MDS-B-SP-300 operates within a frequency range of 50-60 Hz, making it suitable for a variety of global power standards.

What feedback types are supported by the MDS-B-SP-300?

The MDS-B-SP-300 supports both incremental and absolute encoder feedback, enhancing its versatility and accuracy in different setups.

Product Specifications Table

Attribute	Specifications
Manufacturer	MITSUBISHI
Product Type	Spindle Drive
Series	MDS-B-SP
Supply Voltage	3-AC 200-230V
Frequency Range	50-60 Hz
Current Range	144 AMP
Humidity Range	90%(non-condensing)
Power	30 kW
Operating Temperature	0-55 degrees Celsius
Storage Temperature	-20 to 65 degrees Celsius
