TECHNICAL SPECIFICATIONS

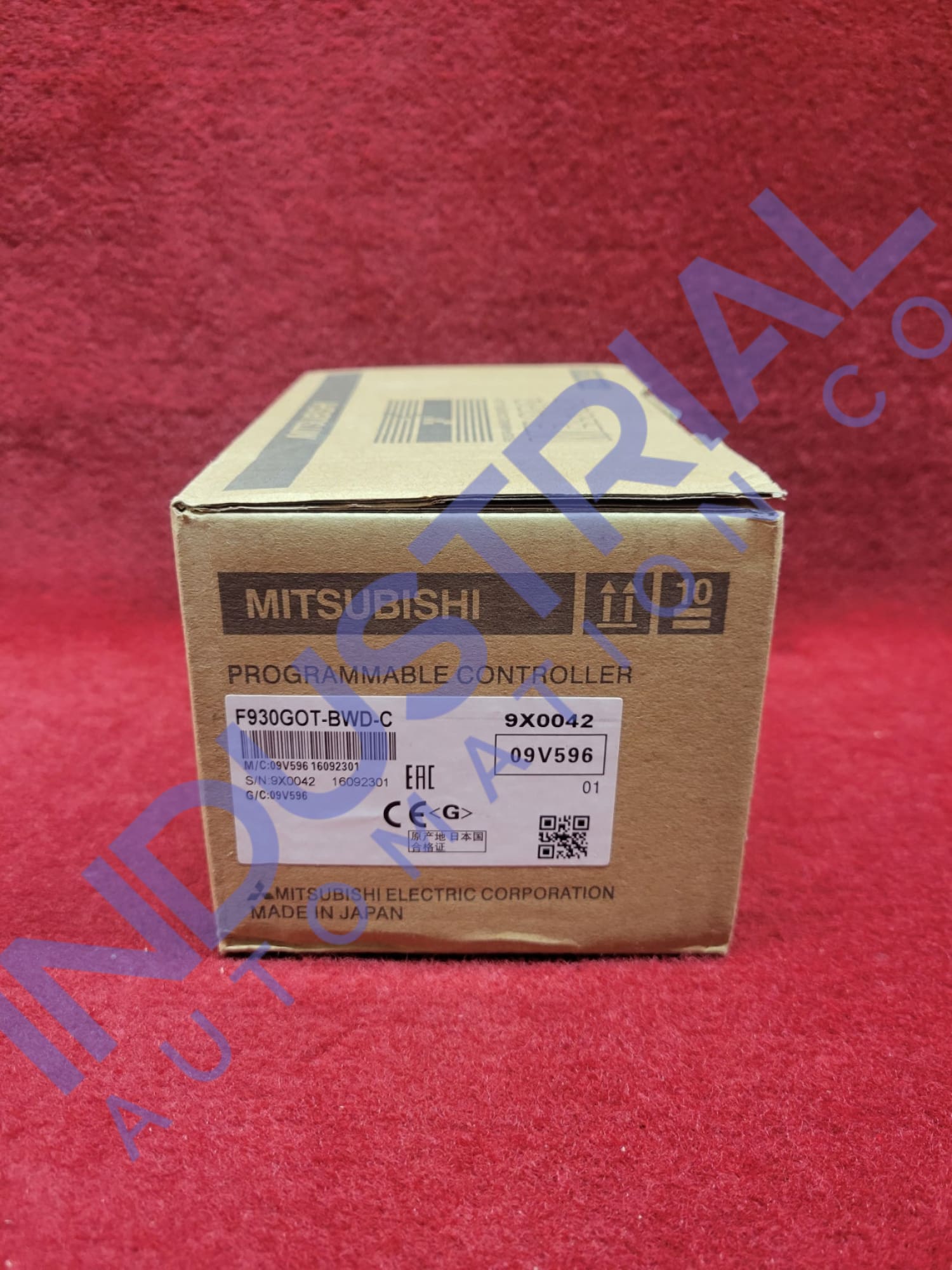

F930GOT-BWD-C

The F930GOT-BWD-C is a cutting-edge GOT (graphic operation terminal) by Mitsubishi to mount onto the face of any control or operating panel. Its purpose is to link up with your programmable controller's programming port so you can monitor and gather data from multiple PLC devices - all viewable through its powerful display!

Specification of F930GOT-BWD-C:

The F930GOT-BWD-C model requires 24 VDC for its power supply, with a 10 to 15 percent tolerance. Operating on this voltage system, the unit calls for 200 A of current and features an irreplaceable fuse and a 5 ms short failure threshold time. It has a built-in lithium battery that offers up to five years of life before needing replacement. The F930GOT-BWD-C model is ideal for use in demanding industrial environments, with a robust impact resistance of 147 m/s2 and 1000 VPp noise voltage protection.

It has been rigorously tested to ensure it can withstand 500 V AC for one minute between all power terminals and the ground terminal. It offers 5 Mohms insulation or greater through megger testing at 500V DC. The model (F930GOT-BWD-C) IP65f equivalent ingress protection class ensures that dirt particles are kept out, while an integrated buzzer adds further versatility to this top-quality device.

The F930GOT-BWD-C model offers a versatile interface with the option of both an RS232C male port and an RS422 female port, each operating off 9 pins. The accompanying STN full dot matrix LCD has excellent viewing angles ranging from 30 degrees left to right, bottom, and 20 for top viewings. The model F930GOT-BWD-C features a 2 color monochrome display (black/white) measuring 240 x 80 mm with effective display measurements at 117 x 42mm that promises up to 50k hours of operation life while under 25° centigrade temperature conditions.

General Ambient Conditions:

The model F930GOT-BWD-C operates within a temperature range of 0° and 50° centigrade, at 35% - 85% relative humidity (without condensation). The working environment must be free from lamp black, corrosive gas, flammable gases, or excessive dust particles to ensure ideal performance conditions. Exposures to sunlight should also be avoided.

Wiring Instructions:

When professionally installing the model F930GOT-BWD-C, take the utmost precaution to prevent cutting and electric wire chips from dropping into ventilation windows. All power phases must switch off before installation procedures, such as drilling screws or wiring.

The unit is exclusively for direct current (DC) power connections; inserting an AC cord will likely lead to failure while connecting 2. A fuse-rated 24 V DC source is always recommended to ensure optimal functioning results. While wiring a DC power supply, ensuring that the + and - terminals properly function is important.

For further protection against malfunction, be sure not to connect any control wires or communication cables with both the main circuit and powering lines; these should always remain at least 100 millimeters away from each other. The model F930GOT-BWD-C must be linked directly to the PLC's ground terminal for power delivery via an external source. However, common grounding of electrical systems while they're still active is strictly prohibited as this can compromise safety measures put into place during installation operations.
