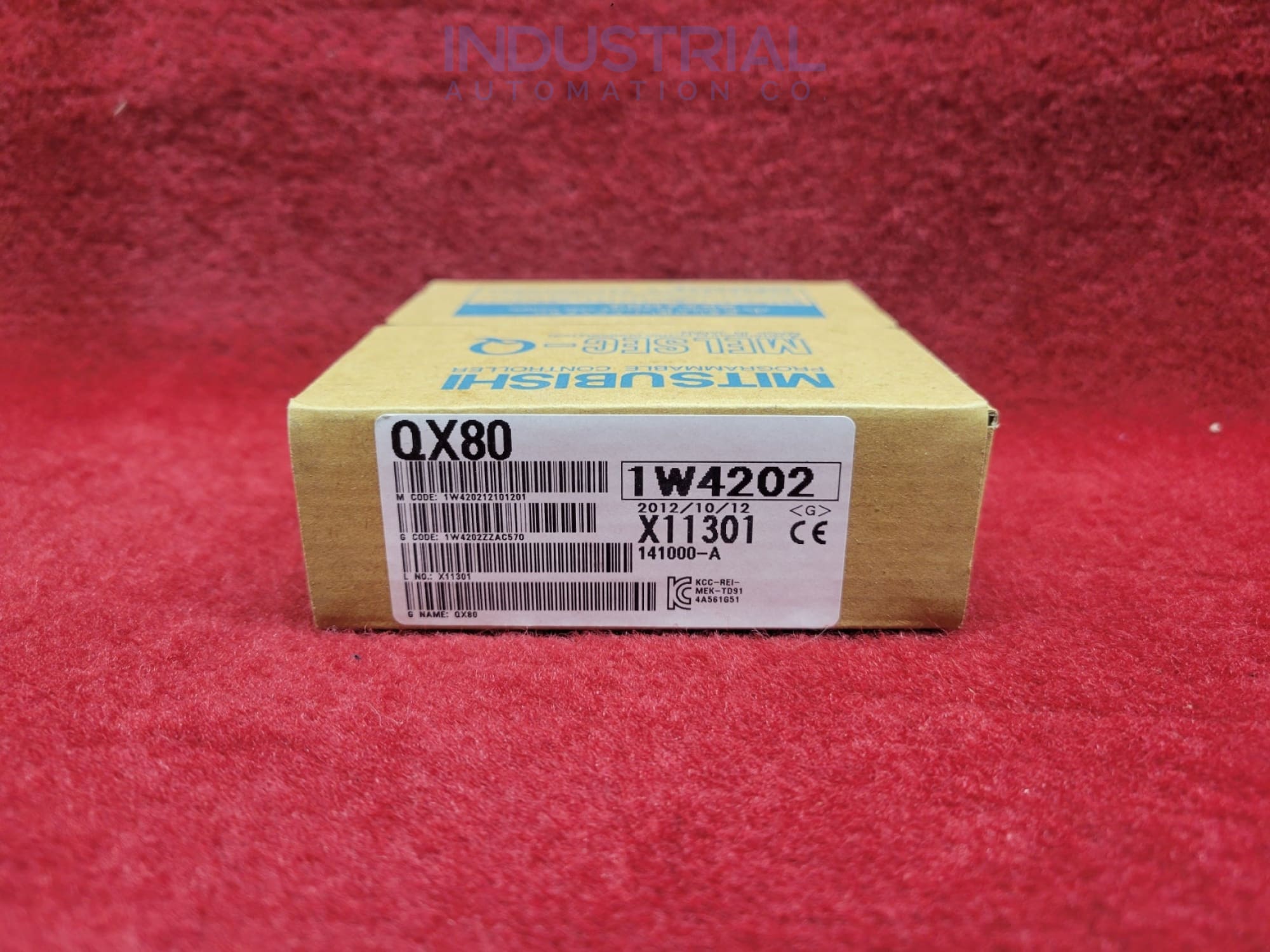

Mitsubishi QX80

Mitsubishi Qx80

Mitsubishi QX80

Regular price
$171.00
Sale price
$171.00
We currently have 5 in stock.
Checkmark

In stock - Ships Today

Checkmark

Eligible for Next Day Delivery

Checkmark

Ships From Our North Carolina Warehouse

Eligible for Next Day Delivery All Parts Come with 24 Month Warranty New, Refurbished and Repairs Available


We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.


All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


Payment options

We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.

Credit Terms

We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.

Description

  • QX80
  • INPUT MODULE
  • MELSEC Q-SERIES DIGITAL
  • 16 POINT
  • 24 VDC INPUT

Buying Options
Buying Options

All products are covered by Industrial Automation Co.'s 2-Year Warranty.

Condition SKU Price Warranty Availability Quantity Purchase
New QX80-FS $171.00 USD 2 Year Extended Warranty 5 In Stock in US!
Quick Repairs and Great Service

Send in your item for a free evaluation and repair quote. Use our RMA form or email a repair request to service@iac.us.com , and we will contact you to assess your situation and offer shipping information.

All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.


TECHNICAL SPECIFICATIONS

QX80

The QX80 model is a DC input module with a common negative type by Mitsubishi for general industries. The module has an 18-point terminal block for external connections. Depending on the width of a signal's pulse, the input module can take in noise as input. The response time, set by a parameter, affects the pulse width. A nameplate containing the model number, input points, input current, weight, and serial number is attached to the DC input module QX80.

Technical Specifications of QX80:

The model QX80 contains 16 input points and has a rated input voltage of 24 VDC and a rated input current of approximately 4 mA. The isolation method for the model is photocoupler, and it lacks an input derating. The model weighs 0.16 kilograms and is equipped with an operation indicator. A LED (operation indicator) indicates whether the module is ON or OFF. The QX80 input module has noise immunity having a noise voltage of 500 V and a noise width of 1 microsecond. The protection class of the model is IP2X, and to connect this module to any other device, a cable with a core diameter of between 0.3 and 0.75 mm2 must be used.

The QX80 model has a response time of 10 milliseconds for going from OFF to ON (which can be configured using a PLC parameter) and the same amount of time for going from ON to OFF. The model has an insulation resistance of 10 Mohms and a dielectric withstand voltage of 560 VAC at altitudes up to 2000 meters. The model has an ON voltage of 19 V and an ON current of 3 mA. The model's OFF and OFF currents are 11 V and 1.7 mA, respectively. The DC input module QX80 has an internal current consumption of 50 mA typically when all 18 points are ON. The common terminal for the model from the 18 points is a TB18 terminal, and the terminal TB17 is vacant.

Software and Settings of QX80 DC Input Module:

GX Developer can be used to configure the QX80 module's settings. On the PLC parameter's I/O assignment tab, under the "Type" combo box, choose "Input" or "I/O." Then, select the input response time from the "I/O response time" combo box by clicking the "Detailed setting" button.

Installation and Wiring Precautions:

The QX80 module can be attached by depressing the mounting lever on the bottom of the module. When ready, fully insert the module's fastening projection into the base unit's hole. When everything is in position, you may push the module into place. Please ensure that the external power source to the system is entirely disconnected before attempting module installation or removal. There's a chance the product might suffer damage if this step is skipped. Do not touch the module's conductive parts or electrical components with any bare skin.

When you're done with the wiring, you'll need to install the module QX80's terminal cover. If you don't do this, you might get a shock. Ensure the rated voltage and terminal arrangement are correct, and the wires are correctly connected before you begin wiring the module. A failure may occur if a power supply with a different voltage rating is used or the wiring is improper.
