TECHNICAL SPECIFICATIONS

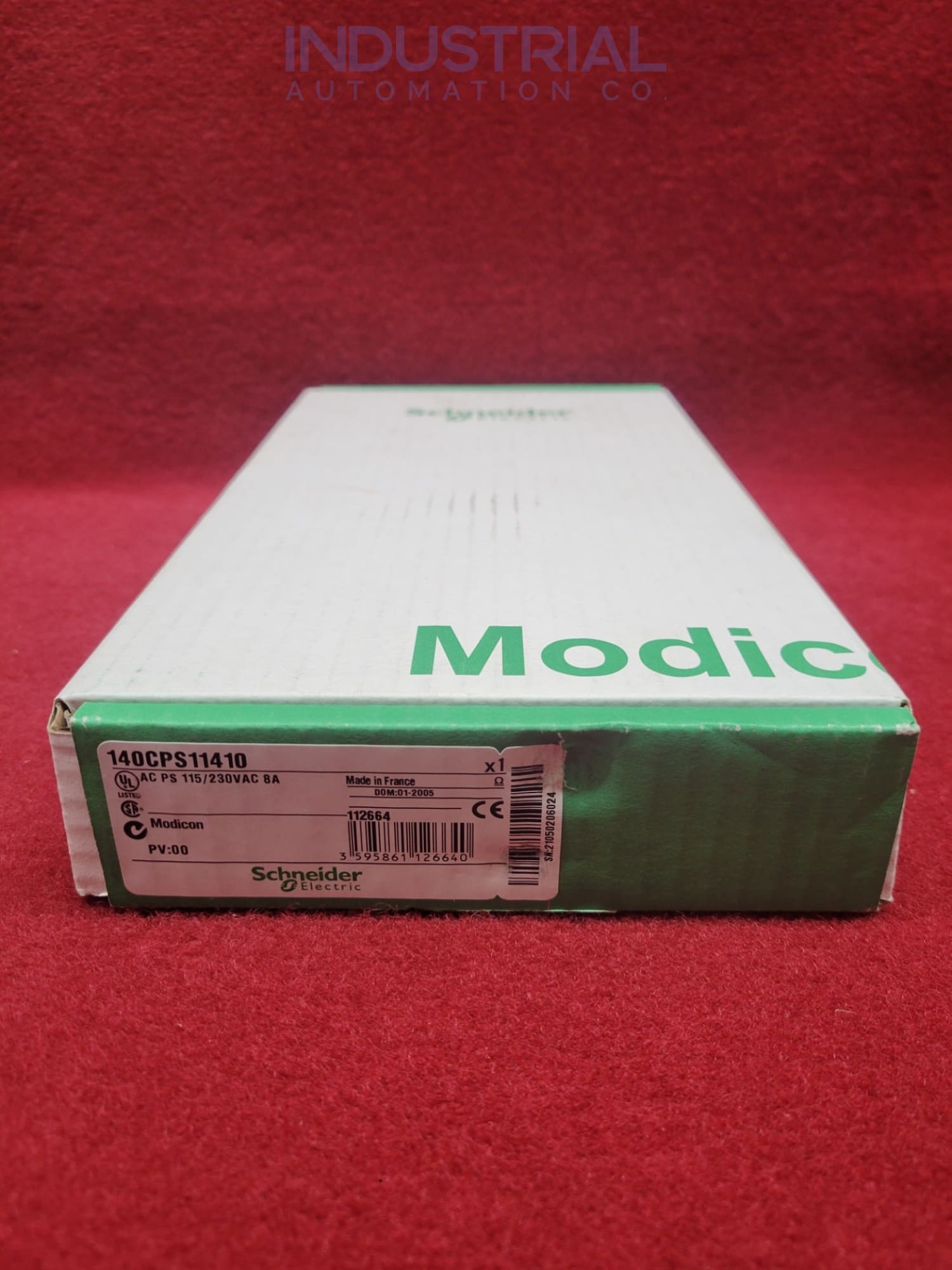

Schneider Electric 140CPS11410

This standalone power supply module 140CPS11410 offers unparalleled automation capabilities, unlocking the full potential of any project. This model features advanced safety protocols and has internal overvoltage and overcurrent protection. A single green LED indicates its reliable status to the user.

Technical Description of 140CPS11410:

The model 140CPS11410 is part of Quantum, an advanced, real-time computing system designed to optimize industrial and manufacturing applications with powerful digital processing capabilities. This model offers a modular architecture for easy customization and scalability.

This model 140CPS11410 delivers an impressive 130 VA of power and is protected with a 2 A fuse. Its inrush currents at 230 V and 115 V are 19 A and 38 A, respectively €“ demonstrating its robust capabilities.

This standalone power supply module is engineered to support a broad range of input voltages and frequencies, ranging from 93 to 138 V AC at 47-63 Hz. With an impressive 0.6 A current consumption rate when supplied with 230V and 1.1A for 115V, this device proves its reliability in power efficiency.

The model boasts an impressive harmonic distortion of less than 10% and a powerful 5.1 V DC output voltage with 8 A current - ensuring reliable operation.

Ambient Conditions:

To ensure a successful operation, the model 140CPS11410 must be kept in temperature-controlled conditions between -40 and 85 degrees centigrade. The humidity levels should remain below 95% within its operating and storage locations.

It is important to dispose of this product properly by following waste collection guidelines to prevent environmental pollution. Additionally, thanks to its mercury-free design and RoHS Directive compliance, it minimizes potential ecological harm.

The model 140CPS11410 is designed to guarantee optimal performance even under varying environmental conditions. This product is designed to withstand extreme conditions, with an ambient air temperature range of 0 to 60°C. It can operate at a maximum height of 5,000 meters above sea level. No matter what challenges you may encounter, this product can handle them.

Start-Up and Testing Instructions:

Ensure all setup and assembly processes are complete before launching into operational tests. Clear away any blockades used during shipping from the model's components and remove meters, tools, or other debris from its vicinity.

Before the regular operation, qualified personnel should perform a start-up test on the module to ensure proper functioning. Planning and allocating ample time is essential for successful testing execution.

Operation and Adjustment Instructions:

Skilled personnel must ensure they are up-to-date with the manufacturer's specifications and familiarize themselves with the machinery linked to their electrical equipment before making any changes.

As a fundamental truth of operating any technical equipment, you must remain aware that improper use may present hazards - no matter how well-designed or carefully rated the components are.

To ensure operational success, it is essential to use the manufacturer's instructions when making any adjustments. Doing so avoids costly and unsafe errors that could come with misadjusting equipment.

Standard Safety Information:

Operating without proper point-of-operation guarding can lead to significant harm for anyone operating the machinery. For safety reasons, this power supply module must be separate and independent. (140CPS11410) only be used when applicable safeguarding measures are in place.

Engineered to provide industrial solutions, this automation equipment model fits each application's requirements. Factors such as control function needed, safety considerations, production methods, and external regulations should all be taken into account when selecting the most suitable system for a particular situation.
