TECHNICAL SPECIFICATIONS

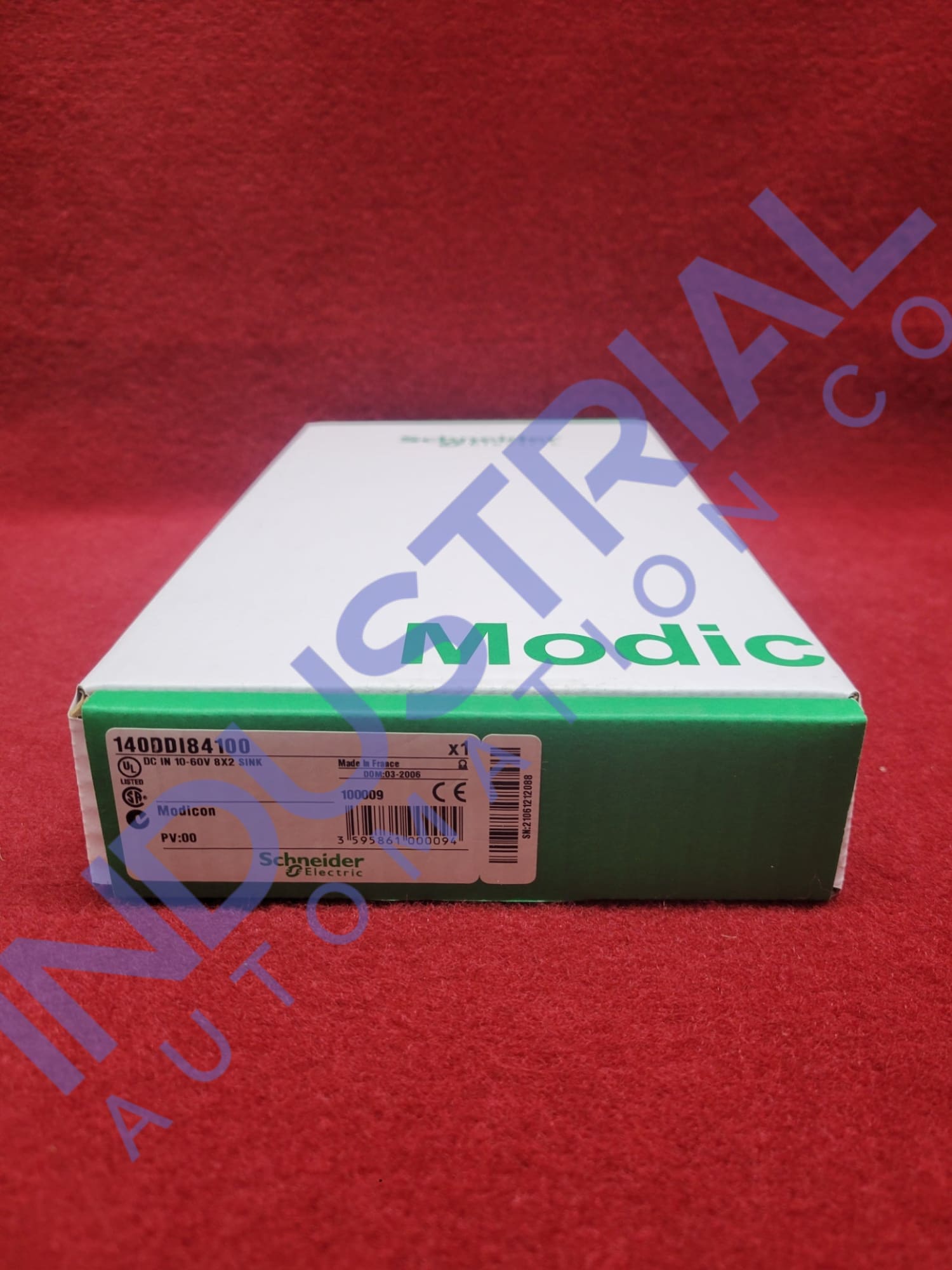

Schneider Electric 140DDI84100

Schneider Electric's Modicon Quantum automation platform provides superior this innovative VDC discrete input module 140DDI84100. This module offers reliable performance to ensure quality operation.

This streamlined model 140DDI84100 features a 200 A bus current and 18 LEDs overall. An active green LED signals communication on the buses to monitor operations, while a red LED indicates any external faults. And sixteen additional emerald-hued lights provide input status updates for optimal performance monitoring.

Technical Specification of 140DDI84100:

This model 140DDI84100 features 16 distinct inputs grouped into eight channels. It requires one input word for addressing and can handle a maximum voltage of 75 V.

The VDC discrete input module requires careful field wiring and should never be connected with a polarity-sensitive setup. Wires of 1-14 AWG or 2-16 AWG are recommended for optimal performance, while wires as small as 20 AWG can still suffice, depending on the application.

The DC Input 10-60 VDC 8x2 Sink Module allows users to select from an array of reference voltages and customize the ON-OFF levels for unique groups. This module is very flexible and can handle input voltages of up to 60 volts. The shared input sources must be wired with positive potentials for effective functioning.

The response time of the model 140DDI84100 is incredibly quick, at 4 ms for both off-to-on and on-to-off transitions. It also offers a wide voltage range between 10 - 60 V - making it an ideal choice for many applications.

This model 140DDI84100 offers unbeatable protection from intrusion with an isolation of 700 Vrms for 1 minute between groups and 2500 Vrms for 1 minute between groups and buses. Additionally, this hard-working unit has a powerful power dissipation capacity of (1 + no of points on) W in just 0.3 kilograms €“ all within one compact device.

The model's voltage state 1 provides a reliable basis for uninterrupted operation, with guaranteed voltages between 11 and 24 V at 47 to 53 Hz. Reduce the voltage to State 0 if you need lower power, which assures wattage up to 1.6 V within the same frequency range and offers further stability.

General Operating and Storage Conditions:

The 140DDI84100 VDC input module is designed to function optimally at altitudes of up to 5000 meters as long its environment remains free from dust and moisture.

Operate the model 140DDI84100 within a temperature range of 0 to 60„ƒ and store it in conditions of -40 to 85„ƒ to ensure optimal functioning. Additionally, relative humidity within both operating or storage areas must not exceed 95%.

Directions for Standard Start-Up and Testing:

To ensure the proper operation of this system, qualified personnel should conduct a start-up test before regular use. Planning for ample time and resources is essential to ensure everything functions thoroughly.

Complete your model's installation and setup processes before using it. Before testing operations, remove all blocks or other temporary installations from each component device. Clear away tools, meters, and any debris which may impede performance when done.

Important Safety Guidelines of VDC discrete input module:

Authorized personnel should restrict modifications to adjust current operations and safeguard the operating parameters for smooth operation.

Employ experienced technicians to install and program this product as its correct application requires knowledge in developing control systems. We do not recommend modifying or applying it without expertise.
