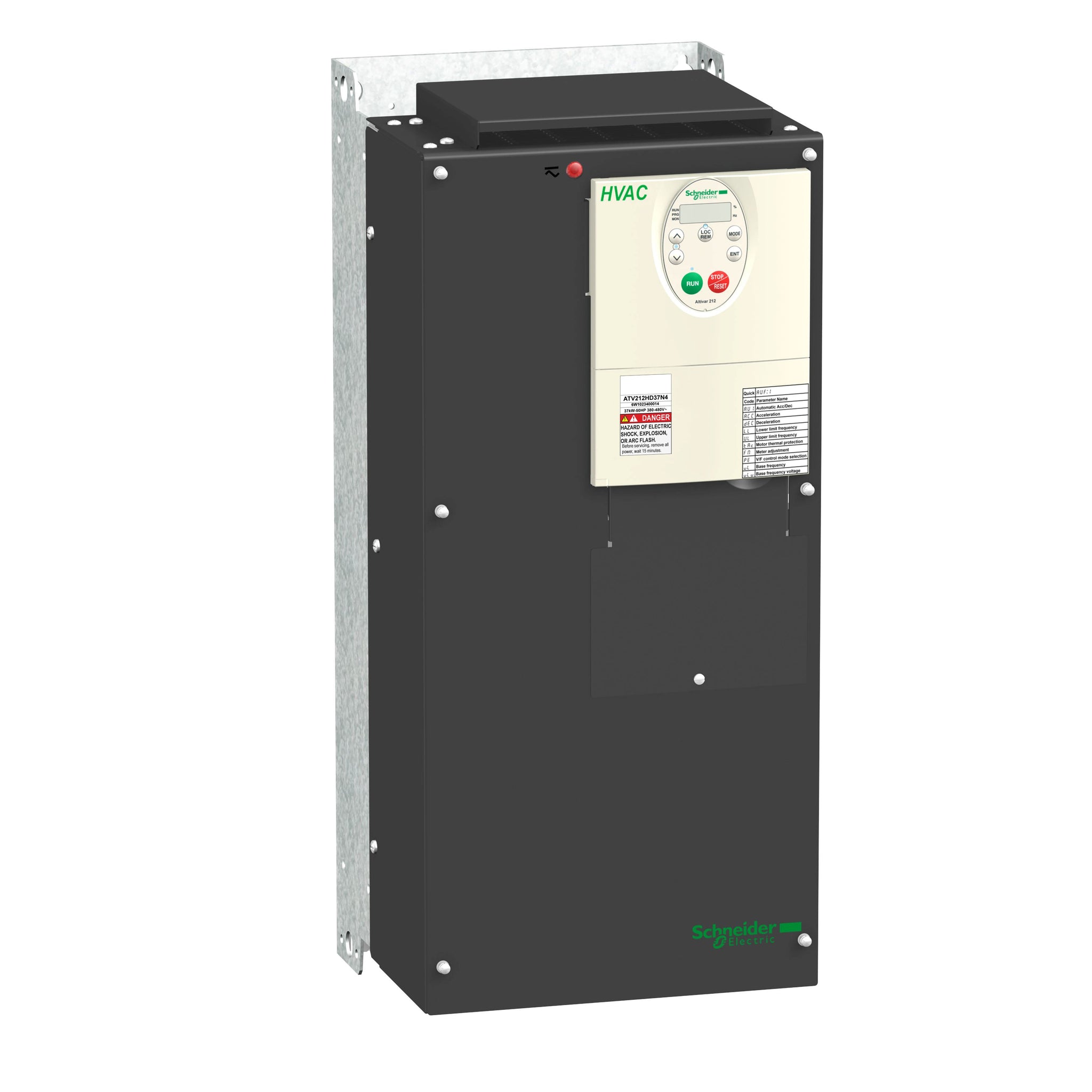

Schneider Electric Altivar 212 Variable Speed Drive ATV212HD37N4

The ATV212HD37N4 is a 37 kW (50 HP) variable speed drive designed for precise control of three-phase asynchronous motors in HVAC applications. Operating with supply voltages between 380V and 480V AC, it enhances system performance and energy efficiency. This model features an integrated EMC filter and an IP21 protection rating, ensuring dependable operation in various settings.

• Rated Output Power: 37 kW (50 HP)
• Supply Voltage: 380V to 480V AC
• Network Phases: 3-phase
• Integrated EMC Filter: Yes
• Protection Rating: IP21
• Applications: HVAC systems, including heating, ventilation, air conditioning, and pumping
• Dimensions (W x H x D): 245 mm x 330 mm x 190 mm
• Weight: 11.65 kg

Engineered to reduce energy consumption by up to 70% compared to conventional control systems, the ATV212HD37N4 is ideal for fluid management applications in commercial buildings.
