TECHNICAL SPECIFICATIONS

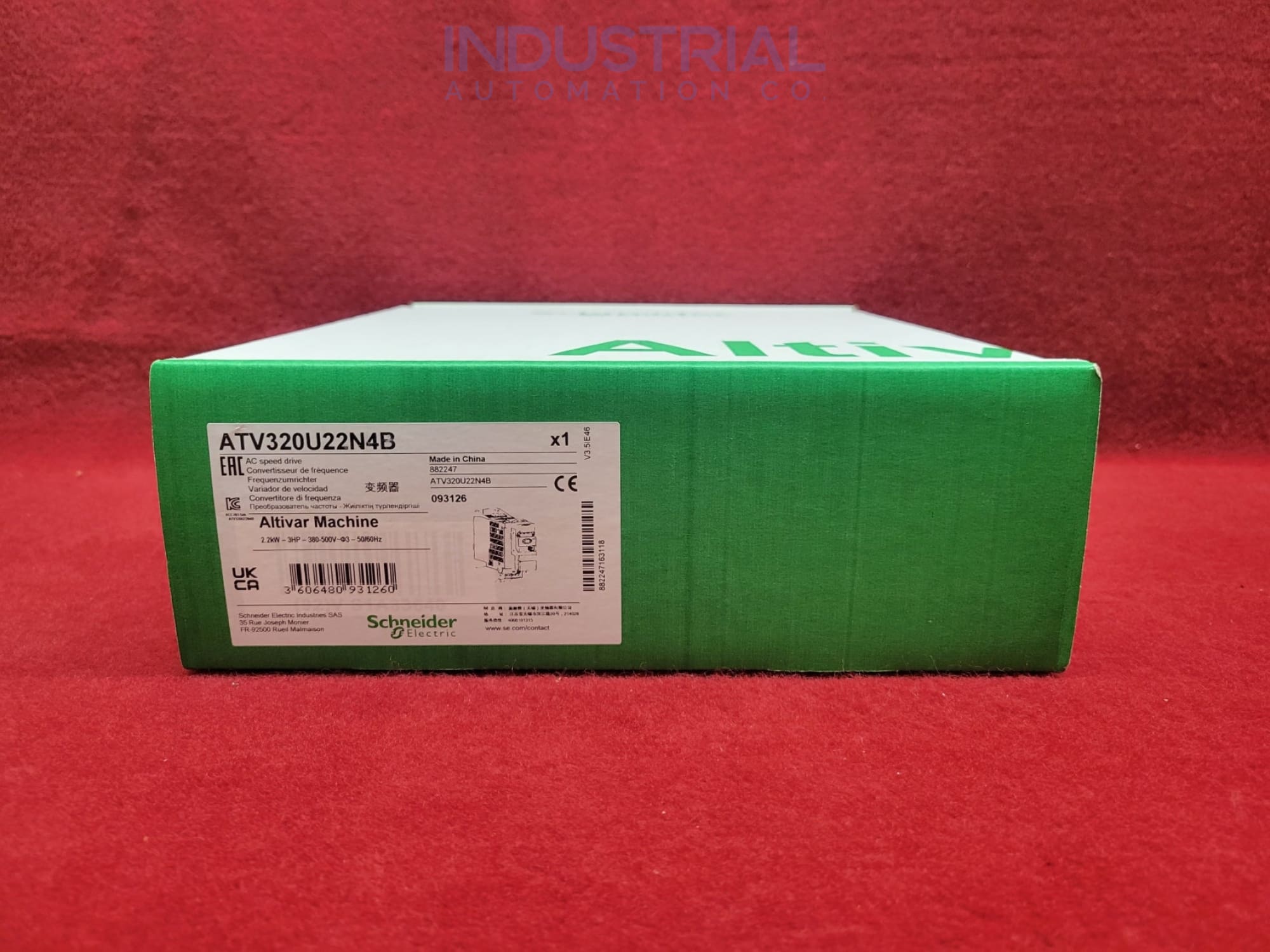

Schneider Electric ATV320U22N4B

Introducing the Schneider Electric ATV320U22N4B, a state-of-the-art variable speed drive (VSD) engineered to provide precise control over three-phase asynchronous motors in industrial settings. With its exceptional motor control capabilities and a suite of advanced features, this VSD is designed to optimize performance and maximize energy efficiency.

Technical Specs of the Drive:

With a power rating of 2.2 kW (3.0 HP), the ATV320U22N4B is an excellent choice for applications requiring moderate motor power. It operates between 380 and 500 volts AC and has a nominal current of 5.5 amps, making it useful with a number of motor configurations.

Modbus, CANopen, and embedded Ethernet are among the communication interfaces available on the VSD. These interfaces allow for easy connectivity, monitoring, and control by enabling seamless interaction with automation systems.

Its rugged design, which includes IEC 60721-3-3 class 3C3 coated printed circuit boards, enables it to operate in difficult weather conditions, such as ambient temperatures of up to 60°C, without the need for extra cooling.

Preventa Safety Module:

Schneider Electric's Preventa safety module is an innovative safety solution designed to ensure the most significant degree of safety in industrial situations.

It is explicitly designed to monitor and control safety-related functions and equipment, ensuring the safety of employees and equipment.

One of the Preventa Safety Module's primary characteristics is its capacity to continuously monitor safety devices. Emergency stop buttons, safety switches, light curtains, and safety mats are all examples of this.

By checking the state of these devices, the module ensures that they are working properly and takes necessary action if any safety violations occur. This regular monitoring aids in the prevention of accidents and the maintenance of a safe working environment.

The module includes programmable safety logic, allowing complicated safety functions and interlocks to be configured. This feature allows for the construction of customized safety sequences and responses based on the needs of the application.

It allows for greater flexibility in devising safety methods to match the specific needs of various industrial processes, hence improving safety and efficiency.

The Preventa Safety Module allows the integration of safety devices and control equipment by providing a variety of safety inputs and outputs.

These inputs and outputs are specifically intended to handle safety-related signals and allow safe communication between the safety module and other safety system components. This seamless integration guarantees that safety functions operate smoothly and effectively.

It supports a number of communication protocols, making it simple to integrate into bigger control systems. It can communicate with PLCs and other safety devices to provide a comprehensive safety solution.

This integration enables fast data interchange and coordination between safety and control systems, ultimately improving overall safety and system performance.

Additionally, the module includes diagnostic and monitoring capabilities to aid with system troubleshooting and maintenance. It delivers real-time status information, fault detection, and diagnostic messages, allowing for rapid identification and resolution of any problems.

These diagnostic capabilities ensure that the safety system operates continuously and reliably, reducing downtime and optimizing safety performance.

Compliance with International Standards:

Compliance with international safety standards is a crucial aspect of the Preventa Safety Module. It is intended to comply with industrial laws by meeting recognized safety standards such as IEC 61508 and ISO 13849.

This compliance ensures that the module fulfills the highest safety standards, making it a trusted solution for applications where safety is critical.
