TECHNICAL SPECIFICATIONS

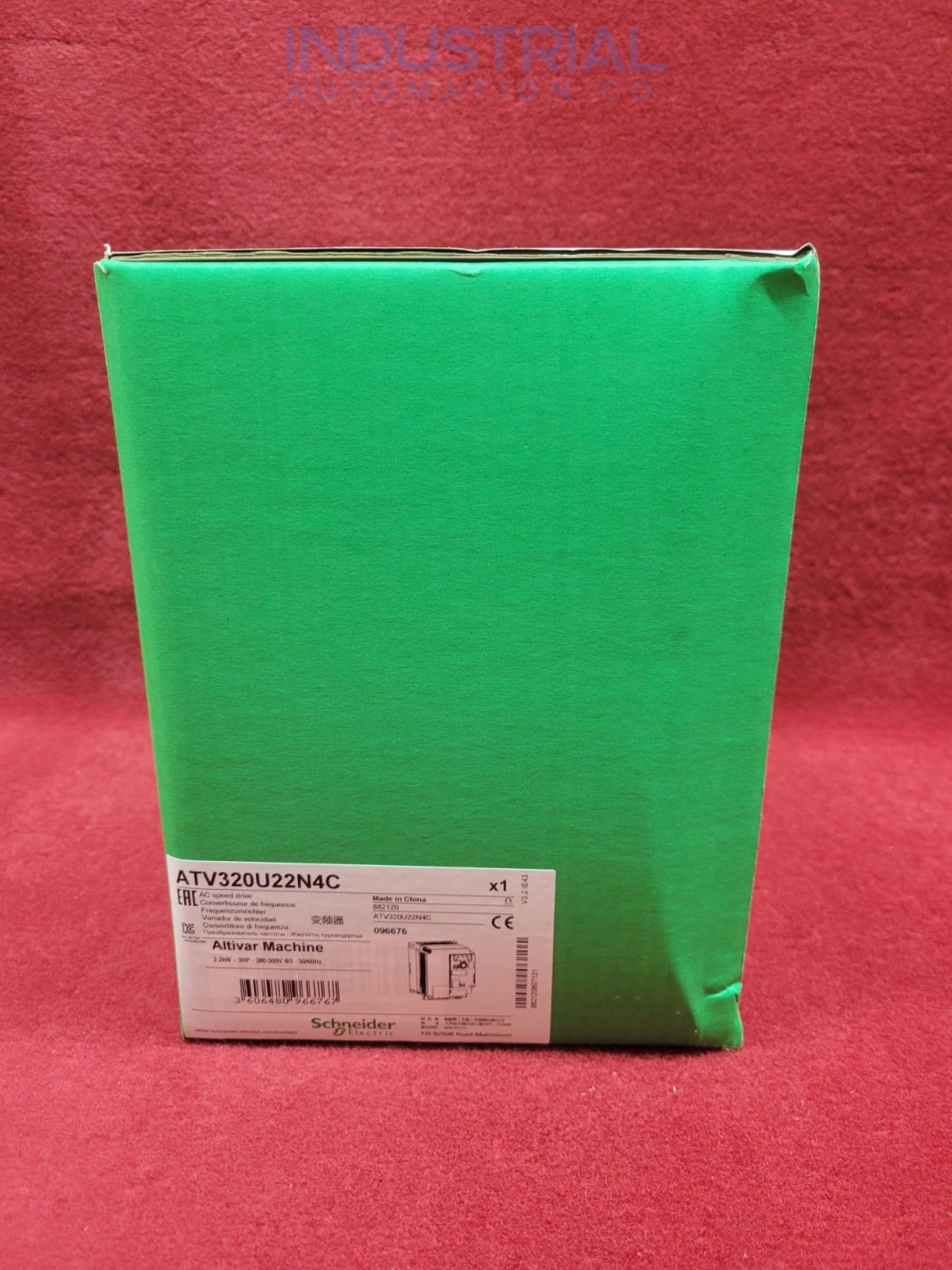

Schneider Electric ATV320U22N4C

The Schneider Electric ATV320U22N4C is a powerful variable speed drive (VSD). It is designed to control the speed and torque of three-phase asynchronous motors by varying the frequency and voltage supplied to the motor.

Technical Features of ATV320U22N4C:

With a power rating of 2.2 kW (3.0 HP), the ATV320U22N4C is appropriate for applications requiring moderate motor power. It has a voltage range of 380 to 500 volts AC, making it compatible with a wide range of motor installations.

The VSD can be controlled in a variety of ways, including scalar control (V/Hz), sensorless flux vector control, and torque control. These modes provide fine control over motor speed, torque, and performance while adjusting to the application's individual requirements.

The ATV320U22N4C model includes critical integrated features that improve motor control and protection. These include motor thermal protection, detection of motor phase loss, and overvoltage/under voltage protection.

These characteristics help to ensure safe and dependable operation while protecting the motor and VSD from potential problems. Schneider Electric's SoMove software or its built-in HMI keypad can be used to program and configure the VSD. This gives flexibility and convenience in configuring the VSD's parameters, settings, and control logic to meet the needs of unique applications.

Energy Efficiency Features:

The ATV320U22N4C variable speed drive incorporates several energy efficiency features to optimize motor performance and reduce energy consumption. These features aim to enhance overall system efficiency and contribute to energy savings.

Automatic energy optimization algorithms in the VSD continuously monitors the motor load and change output frequency and voltage to fit the needed load requirement. Energy waste is reduced by giving the motor only the necessary power, resulting in better energy efficiency.

It employs dynamic motor flux control, which adjusts the motor flux in response to operating conditions. This feature improves the efficiency of the motor by lowering losses and increasing power factor under varied load circumstances. It contributes to maximum energy savings while preserving motor performance.

The VSD includes a sleep mode that allows the drive to enter a low-power condition when the motor is not in use or is operating at low loads. This conserves energy during inactivity and decreases power consumption, especially during idle or standby periods.

The VSD ATV320U22N4C supports energy monitoring and reporting, allowing users to measure energy consumption and find areas for improvement. It gives useful statistics about energy consumption, enabling educated decisions and energy-saving methods.

It also eliminates the need for mechanical control methods such as throttling valves or dampers by precisely adjusting the speed of the motor based on the load requirements.

Schneider Electric's SoMove Software:

SoMove software from Schneider Electric is a sophisticated solution for simplifying the setup, configuration, and maintenance of motor control devices. It has an easy-to-use interface that allows users to configure and customize Schneider Electric motor control devices such as VFDs, soft starters, and motor management systems.

SoMove supports real-time monitoring, allowing users to track the state and performance of motor control devices. Users can view motor characteristics, operating conditions, and alerts in real-time using visualizations and diagnostic tools. This helps with troubleshooting, performance optimization, and preventive maintenance.

The software has data logging and analysis features that allow for the recording and analysis of motor performance data. Motor operating characteristics, trends, and occurrences can all be recorded and saved for further analysis.

This data aids in identifying patterns, optimizing energy efficiency, and improving the overall health and function of the motor control system.
