Siemens 6AV6545-0CC10-0AX0

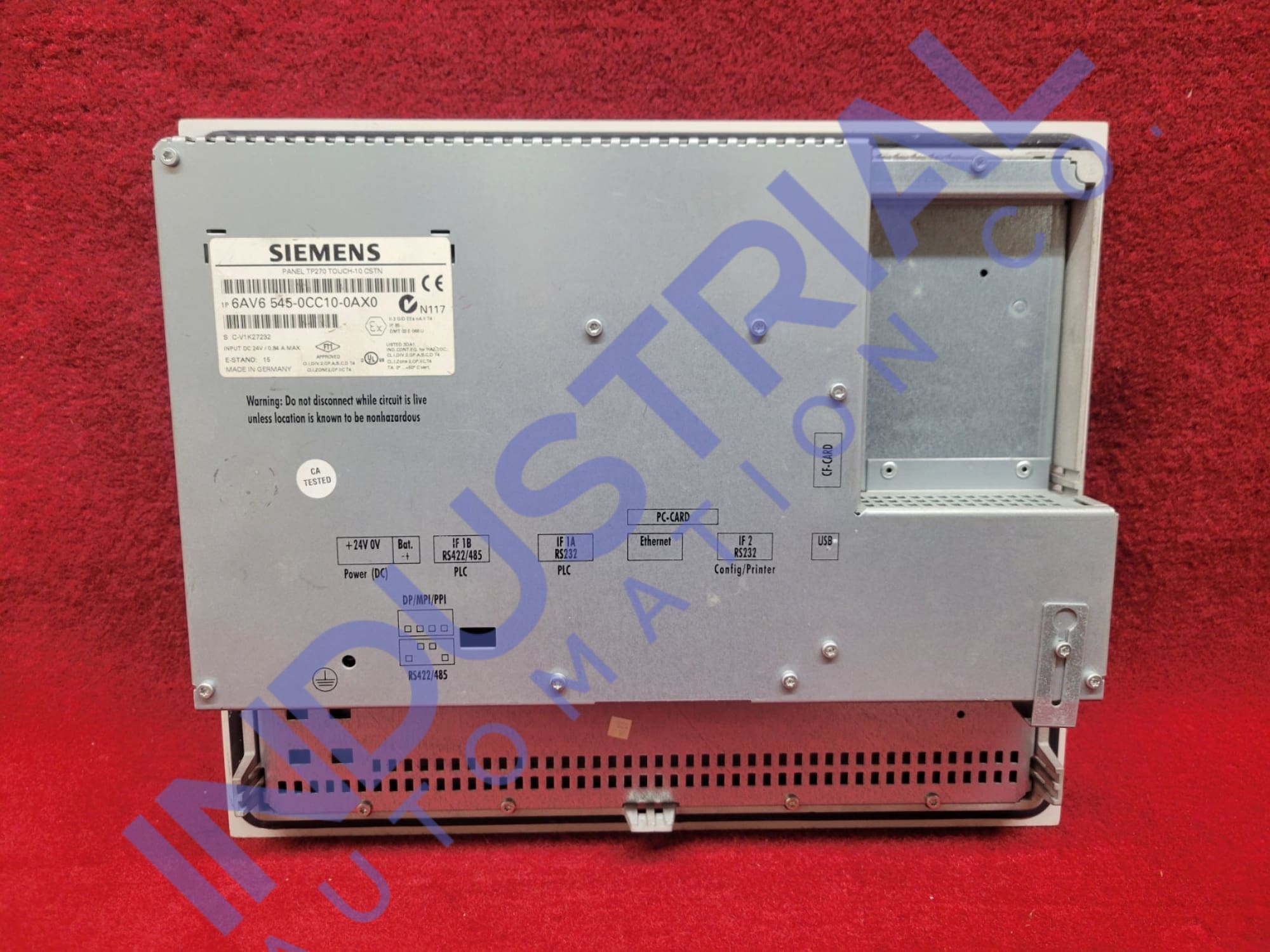

The Siemens 6AV6545-0CC10-0AX0 is an advanced human-machine interface (HMI) device exclusively built for industrial purposes. This sturdy and dependable HMI boasts various features and functionalities, making it the perfect fit for rigorous automation and control systems. Designed with an intuitive user interface, superior display quality, and high-performance capabilities, the model delivers a streamlined and effective experience to operators interacting with their machinery.

Siemens 6AV6545-0CC10-0AX0

The 6AV6545-0CC10-0AX0 HMI leverages advanced technology for the best performance. Equipped with a 10.4-inch STN color display boasting a 640x480 (W x H) pixels resolution, it delivers vivid and clear visuals. The device is touch-responsive, enabling intuitive interaction with the interface via either a stylus or fingertips.

Operated by a 24 V DC supply voltage with a permissible range of 24.4 to 28.8 Volt DC, the interface has a rated current of 0.9 amperes and a power of 15 watts. It runs on the Pro-tool version 6 configuration tool and employs an STN display type with 256 Farben.

With a powerful processor, the 6AV6545-0CC10-0AX0 executes commands with optimal speed and flexibility. Its internal storage includes a flash memory of 256 MB and 256 MB of RAM, enabling users to run complex applications smoothly. The device boasts multiple networking interfaces, such as Ethernet and USB ports, ensuring seamless connection to other devices and systems.

Ambient Operating Parameters:

The 6AV6545-0CC10-0AX0 is engineered to deliver peak performance and long-lasting service life, but it needs specific environmental conditions to operate optimally. To ensure this, maintain an operating temperature from 0°C to 50°C. Operating beyond this range could lead to reduced functionality or device damage.

Ensure the maximum permitted angle does not exceed plus-minus 35 degrees, and remember that no external ventilation is required. Keep the humidity level below 85% to avoid affecting the device's functioning and triggering a malfunction.

Finally, the HMI is exclusively designed to operate within an altitude range of 0 to 2,000 meters (0 to 6,561 feet) above sea level. Additional precautions and adjustments may be necessary if you need to use it beyond this range.

Grounding and Transportation:

Proper grounding of the model 6AV6545-0CC10-0AX0 is integral to both user safety and device reliability. To ensure optimal performance and safe operation, it is crucial to adhere to Siemens' recommended grounding instructions for installation and use. The HMI must be connected to a properly grounded power source to prevent electrical hazards and maintain system integrity.

Handling the 6AV6545-0CC10-0AX0 with caution during transportation or relocation is imperative to avoid physical damage. The device should be meticulously packaged and protected against shocks, vibrations, and extreme temperatures. Before moving the HMI, be sure to disconnect it from all power sources and external devices to prevent electrical accidents or data corruption.

Safety Recommendations:

To prevent damage to the device and ensure safety, keep the 6AV6545-0CC10-0AX0 away from moisture, extreme temperatures, direct sunlight, and corrosive substances. Check the device and cables regularly for wear or damage and contact a qualified technician for necessary repairs.

Only authorized personnel with proper training and knowledge should access the device's internals to avoid electric shock or other hazards. Do not attempt to open the device if untrained.

Use the 6AV6545-0CC10-0AX0 HMI within the temperature and humidity ranges specified in the user manual for optimal performance. If installed in a hazardous environment, comply with safety standards and use protective measures.

Protect the interface from unauthorized access with security measures such as user authentication, password protection, and network security protocols. Keep the device up to date with firmware and software updates from Siemens to take advantage of the latest security improvements and bug fixes.
