Description

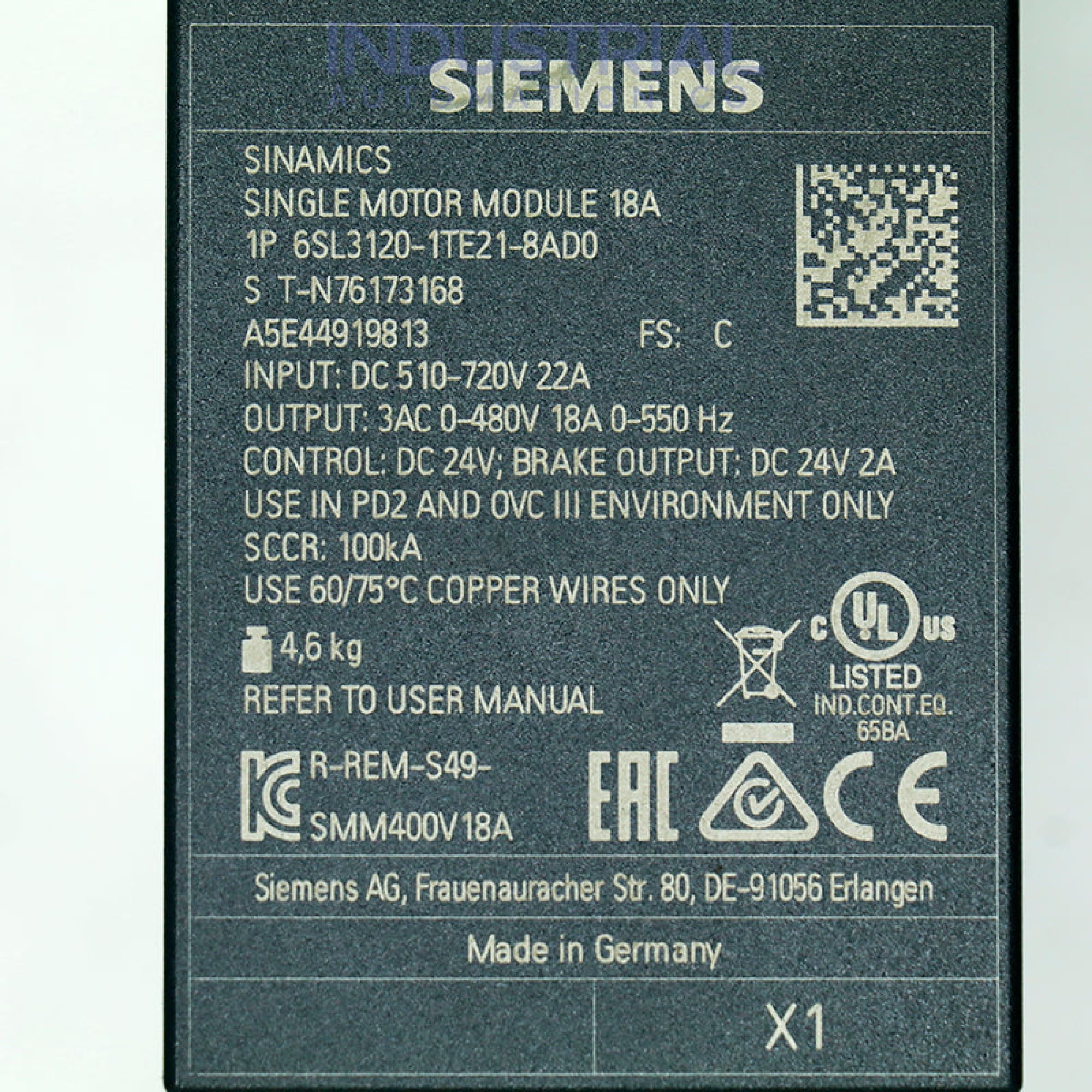

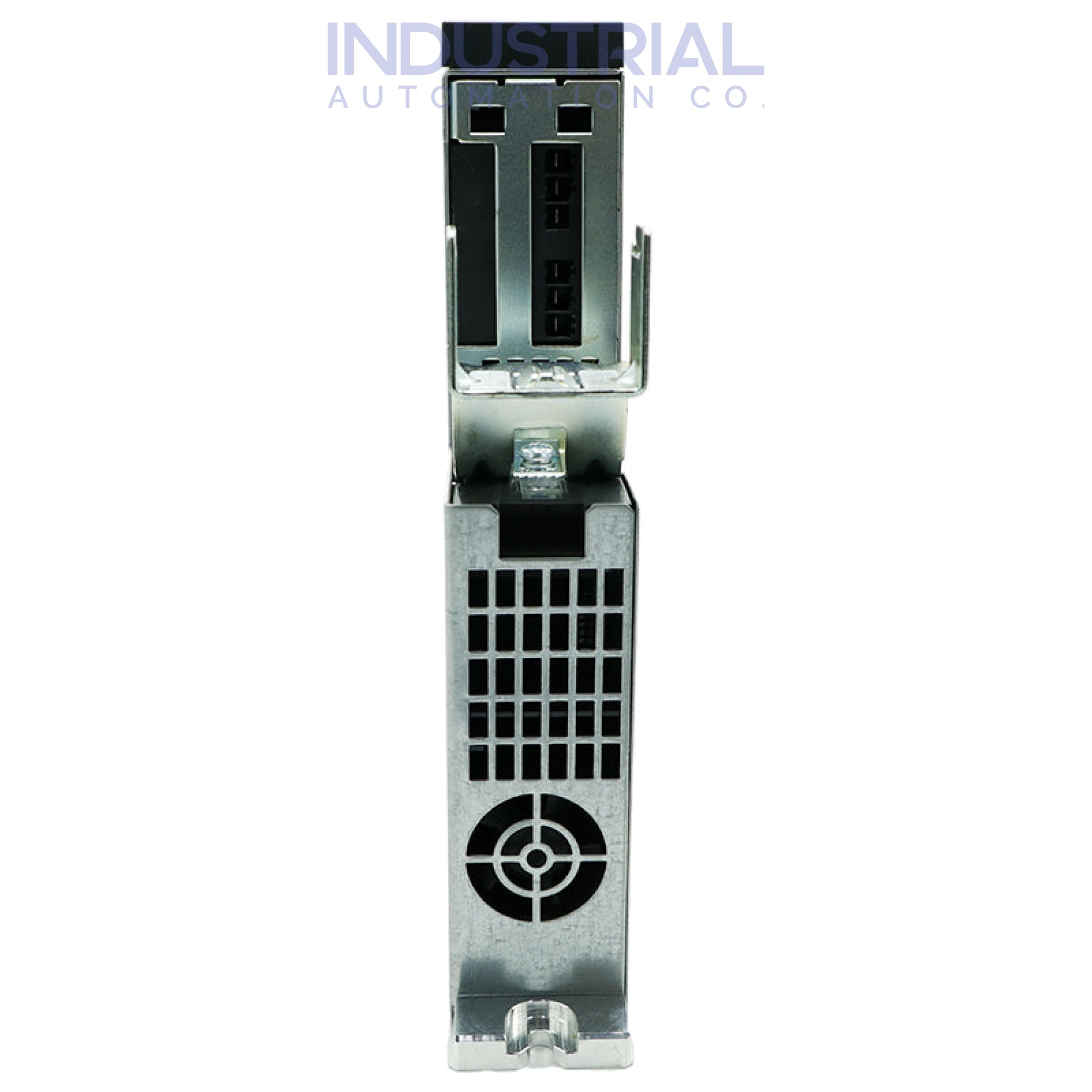

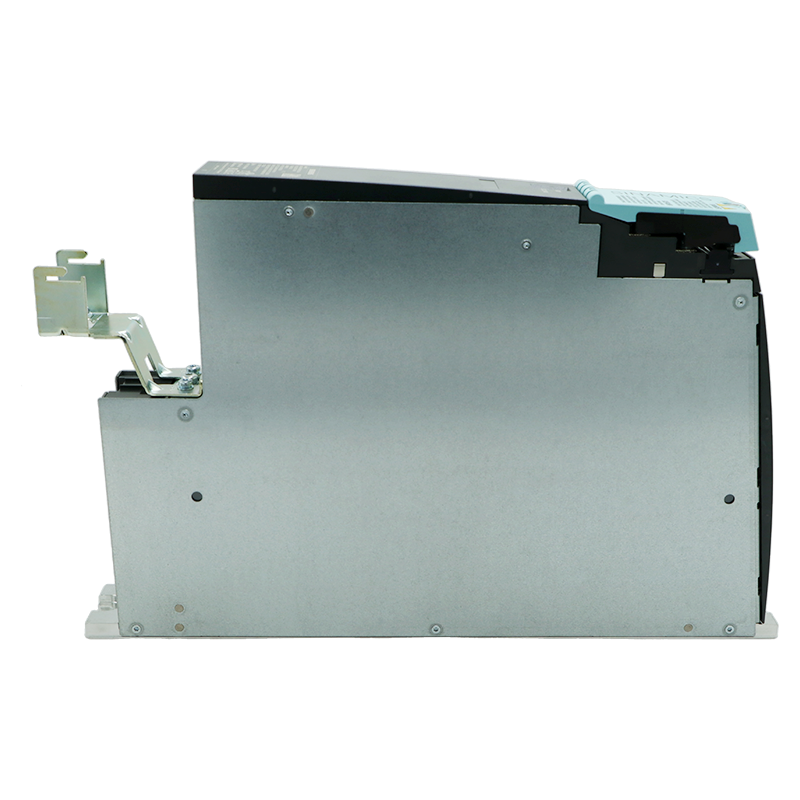

Siemens 6SL3120-1TE21-8AD0

The Siemens 6SL3120-1TE21-8AD0, part of the SINAMICS S120 series, is a high-performance motor module designed for advanced industrial applications. Its precise motor control and energy efficiency make it perfect for complex machinery.

Technical Features:

The Siemens 6SL3120-1TE21-8AD0 provides an output frequency of up to 600 Hz for V/f control, enabling efficient motor speed and torque management across various industrial applications. The module operates with a typical power loss of 0.14 kW and a maximum of 0.19 kW, contributing to its energy efficiency. This low power loss reduces operational costs and minimizes heat generation, which is crucial for maintaining the equipment's longevity and reliability.

The Siemens 6SL3120-1TE21-8AD0 has a sound pressure level of 60.0 dB at one meter, ensuring a quieter working environment. This moderate noise level is beneficial for worker comfort and compliance with industrial noise regulations, making it ideal for settings where noise reduction is important.

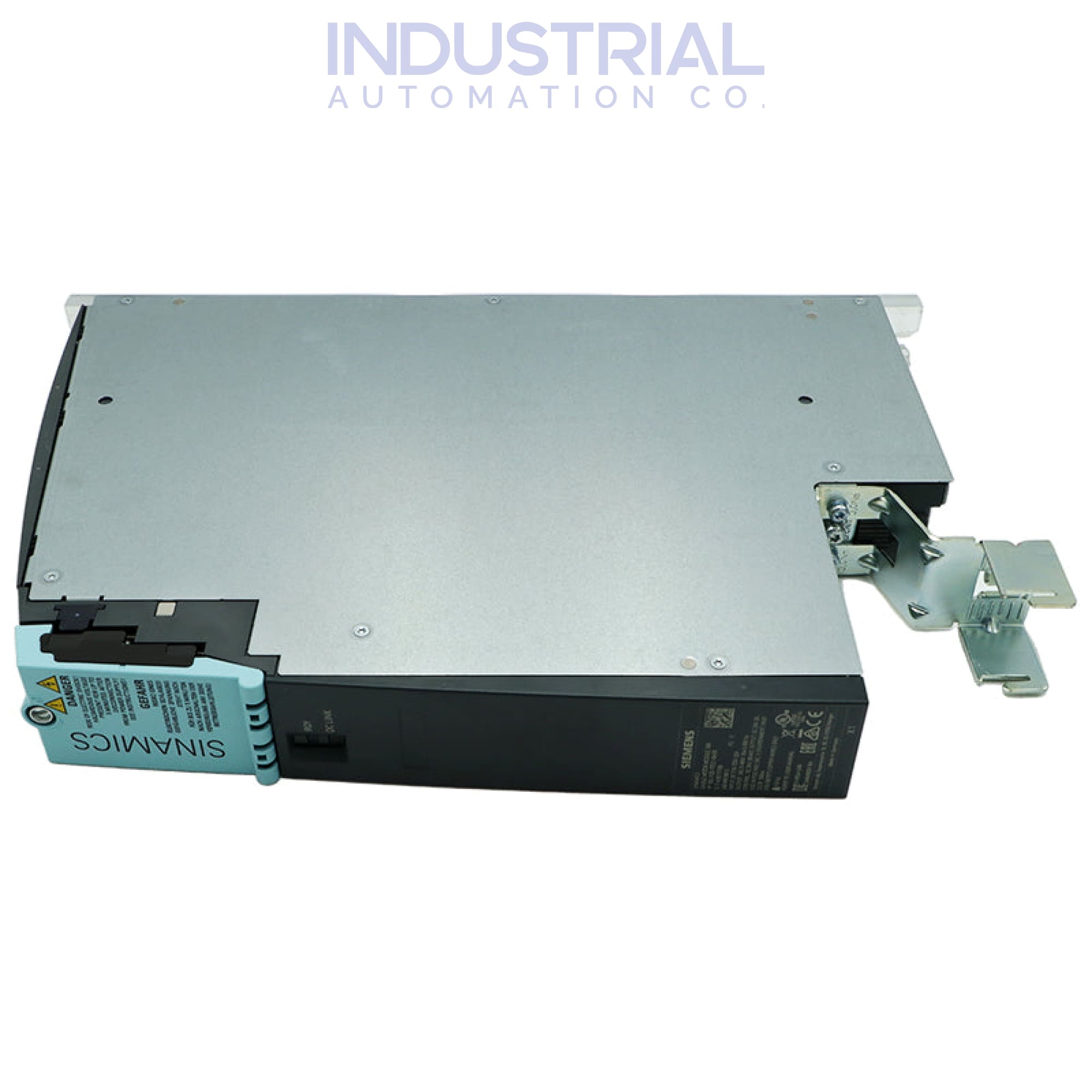

The module's booksize construction offers a compact, space-saving form factor. This design allows for easy installation and integration into existing control cabinets and systems, optimizing space utilization in industrial setups.

The 6SL3120-1TE21-8AD0 operates with a DC link voltage range of 510 to 720 V DC, ensuring effective power delivery to various motor types. This broad voltage range supports consistent performance, even under varying load conditions. The module's maximum current demand of 0.75 A highlights its efficiency and low power consumption, making it ideal for applications where energy efficiency and cost savings are crucial.

Operating Conditions:

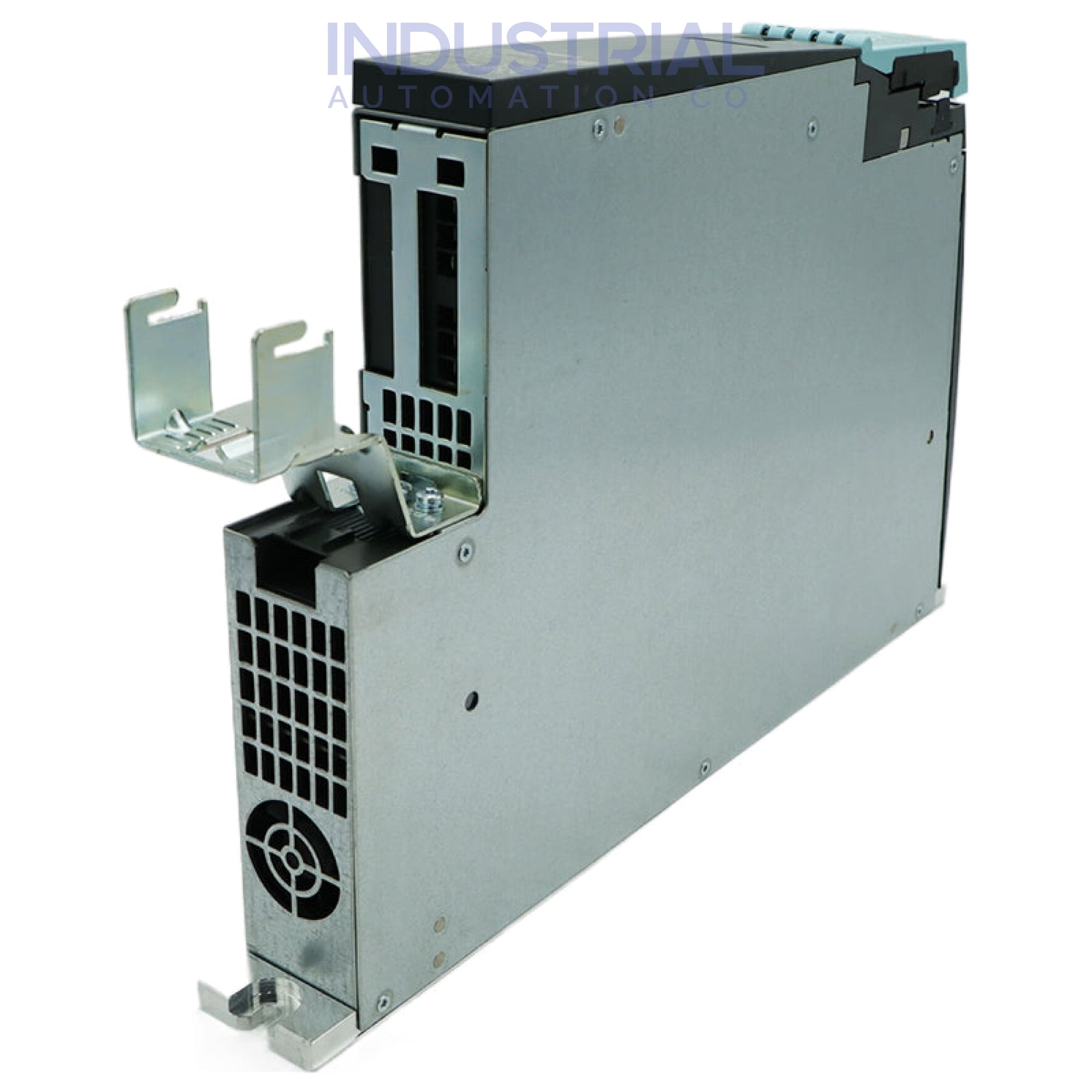

The Siemens 6SL3120-1TE21-8AD0 is designed to operate efficiently within ambient conditions. It features internal air cooling, ensuring reliable performance even under continuous operation. The cooling system is effective at ambient temperatures between 0 and 40 °C (32 to 104 °F), providing flexibility for use in various industrial environments.

The 6SL3120-1TE21-8AD0 can be mounted at altitudes up to 1000 meters (3281 feet) without any derating, allowing it to maintain full operational efficiency and performance at standard elevations. This capability makes it suitable for a wide range of geographic locations.

Compliance and Safety Standards:

The Siemens 6SL3120-1TE21-8AD0 meets stringent compliance standards, ensuring its reliability and safety in industrial applications. It is certified under the CE and cULus standards, guaranteeing adherence to European and North American safety, health, and environmental protection regulations.

Regarding safety integration, the module is designed to meet high safety standards. It complies with Safety Integrity Level (SIL) 2 according to IEC 61508. Additionally, it achieves Performance Level (PL) d and Category 3 by EN ISO 13849-1.

Frequently Asked Questions:

What is the recommended conductor cross-section for connecting the 6SL3120-1TE21-8AD0?

The recommended conductor cross-section for the Siemens 6SL3120-1TE21-8AD0 is between 2 to 6 mm² (16 to 10 AWG). This range allows for appropriate electrical connectivity and safety, ensuring reliable operation and efficient power transmission to the module.

What is the cooling air requirement for the Siemens 6SL3120-1TE21-8AD0?

The 6SL3120-1TE21-8AD0 requires a cooling airflow of 0.009 cubic meters per second. This cooling air requirement is essential for maintaining optimal operating temperatures, preventing overheating, and ensuring the longevity and reliable performance of the module.

What is the net weight of the 6SL3120-1TE21-8AD0?

The Siemens 6SL3120-1TE21-8AD0 has a net weight of 4.6 kg (10.14 lb). This weight specification ensures easy handling and installation within various industrial setups while maintaining the robustness required for high-performance applications.

Product Specifications Table

Attribute Specifications
Series SINAMICS S120
Voltage 400 V AC
Dimensions 50.00 mm (1.97 in) x 380.00 mm (14.96 in) x 270.00 mm (10.63 in)
Mounting Type Booksize
Weight 4.6 kg (10.14 lbs)
Ambient Temperature Range 0 °C to +40 °C
Control Method Field-oriented control (FOC), vector control
Compliance CE, UL, cULus
Communication Interface PROFINET, PROFIBUS
Power Rating 9.7 kW
