Siemens 6SN1123-1AA00-0KA1

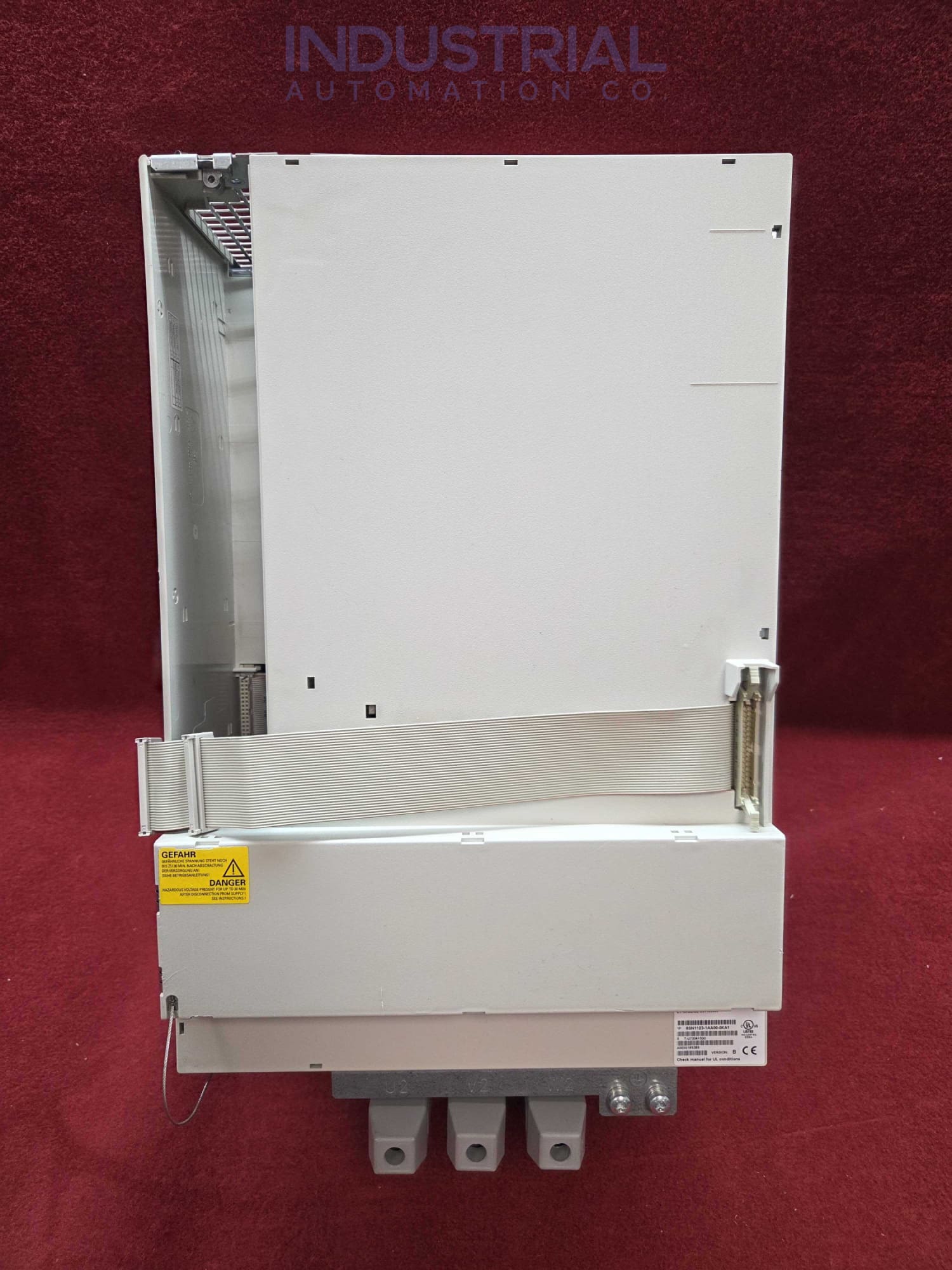

The 6SN1123-1AA00-0KA1 is a specific model of the SIMODRIVE 611 power module manufactured by Siemens. Designed for industrial applications, the SIMODRIVE 611 power module is a vital component of the overall drive system. Its primary function is to convert incoming electrical power into a suitable form for the connected motors or actuators.

Technical Features:

The 6SN1123-1AA00-0KA1 servo drive system offers comprehensive technical specifications contributing to its exceptional performance and versatility.

This drive system operates on a voltage range of 3AC 400V to 480 V, providing flexibility for different power supply configurations. Its continuous output current rating of 60 A enables it to deliver sufficient power to drive various industrial machinery.

The 6SN1123-1AA00-0KA1 employs advanced control algorithms to ensure precise and accurate control over the connected servo motors. With a resolution of 1/1024, this module system can achieve highly precise positioning and motion control, making it suitable for applications requiring high accuracy levels.

By providing precise control over speed, torque, and position, this power module enables accurate and efficient motion control in industrial processes. With its advanced digital technology, this power module offers reliable performance and robustness, making it a trusted choice for demanding industrial automation requirements.

It also supports various motor feedback systems, including resolver, encoder, and Hiperface, allowing compatibility with various motor types and configurations.

Ambient Conditions:

The 6SN1123-1AA00-0KA1 servo drive system is designed to operate reliably in various ambient conditions in industrial environments. With its robust construction and advanced thermal management mechanisms, this drive system can withstand challenging conditions and maintain optimal performance.

One crucial aspect of the ambient conditions is the temperature range within which the 6SN1123-1AA00-0KA1 can operate. This servo drive system is designed and developed to operate within a specified temperature range of 0°C to 40°C (32°F to 104°F).

The 6SN1123-1AA00-0KA1 is designed to withstand the rigors of industrial environments, including vibrations and shocks. Its strength is verified by meeting the standards for vibration class 3M3 and shock class 3M3 as specified by the IEC 60068-2-6 and IEC 60068-2-27 regulations.

Lastly, the 6SN1123-1AA00-0KA1 is designed to operate in environments containing airborne contaminants such as dust or particles. It has an IP20 degree of protection as per IEC 60529, which means it is protected against the ingress of solid objects larger than 12.5 mm in diameter.

While it protects against solid particles, ensuring the drive system is installed in a suitable enclosure or cabinet is important to prevent excessive dust accumulation and maintain optimal performance.

Safety Precautions:

While operating the 6SN1123-1AA00-0KA1 servo drive system, it is necessary to prioritize safety by following a set of crucial precautions.

Ensure that electrical safety protocols are followed, including switching off the power supply and proper grounding before performing maintenance or installation tasks.

Familiarize yourself with the STO function and its activation methods, utilizing it in emergencies to ensure the motor stops safely. Install the 6SN1123-1AA00-0KA1 in a suitable enclosure or cabinet that protects against environmental factors and maintains the recommended ambient conditions.

Only trained and authorized personnel should handle the equipment, employing proper wiring and connections to prevent electrical hazards and malfunctions. Implement regular maintenance and inspection schedules and follow lockout/tagout procedures during maintenance or repair tasks.

Lastly, ensure compliance with relevant safety regulations and guidelines to maintain a safe working environment and fulfill legal obligations.
