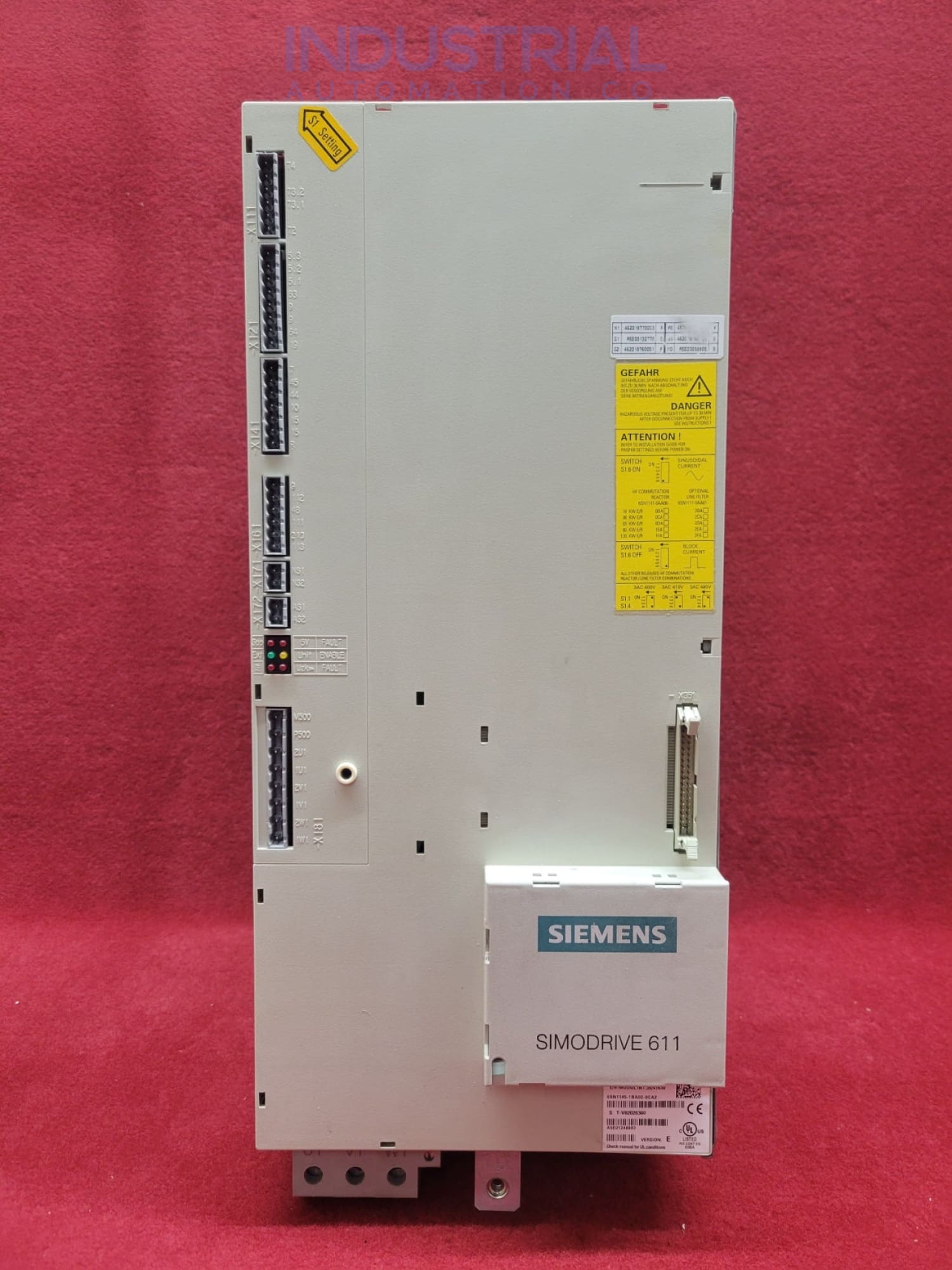

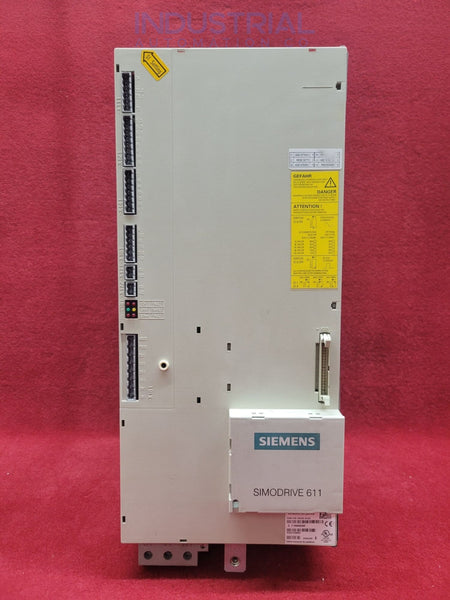

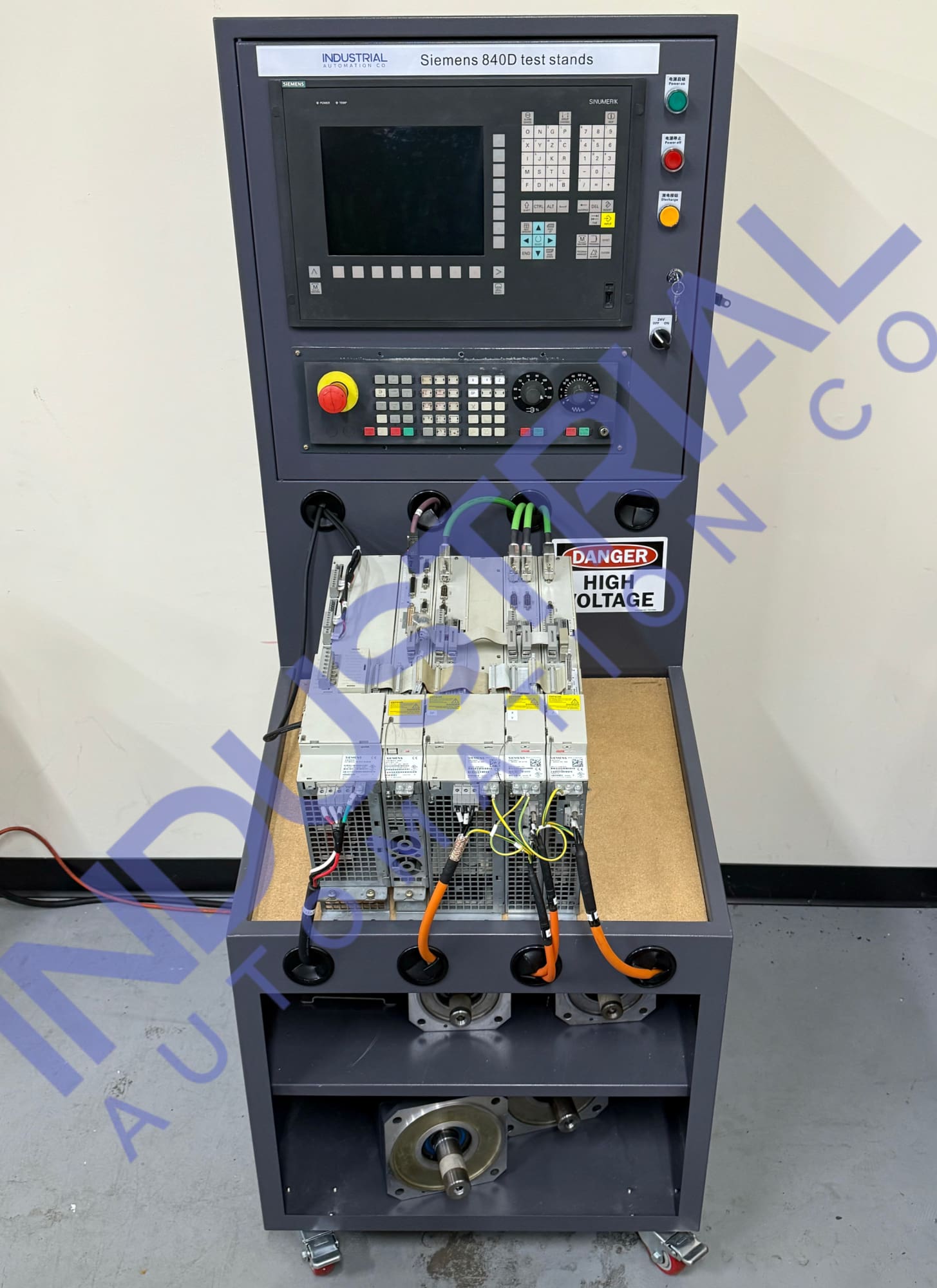

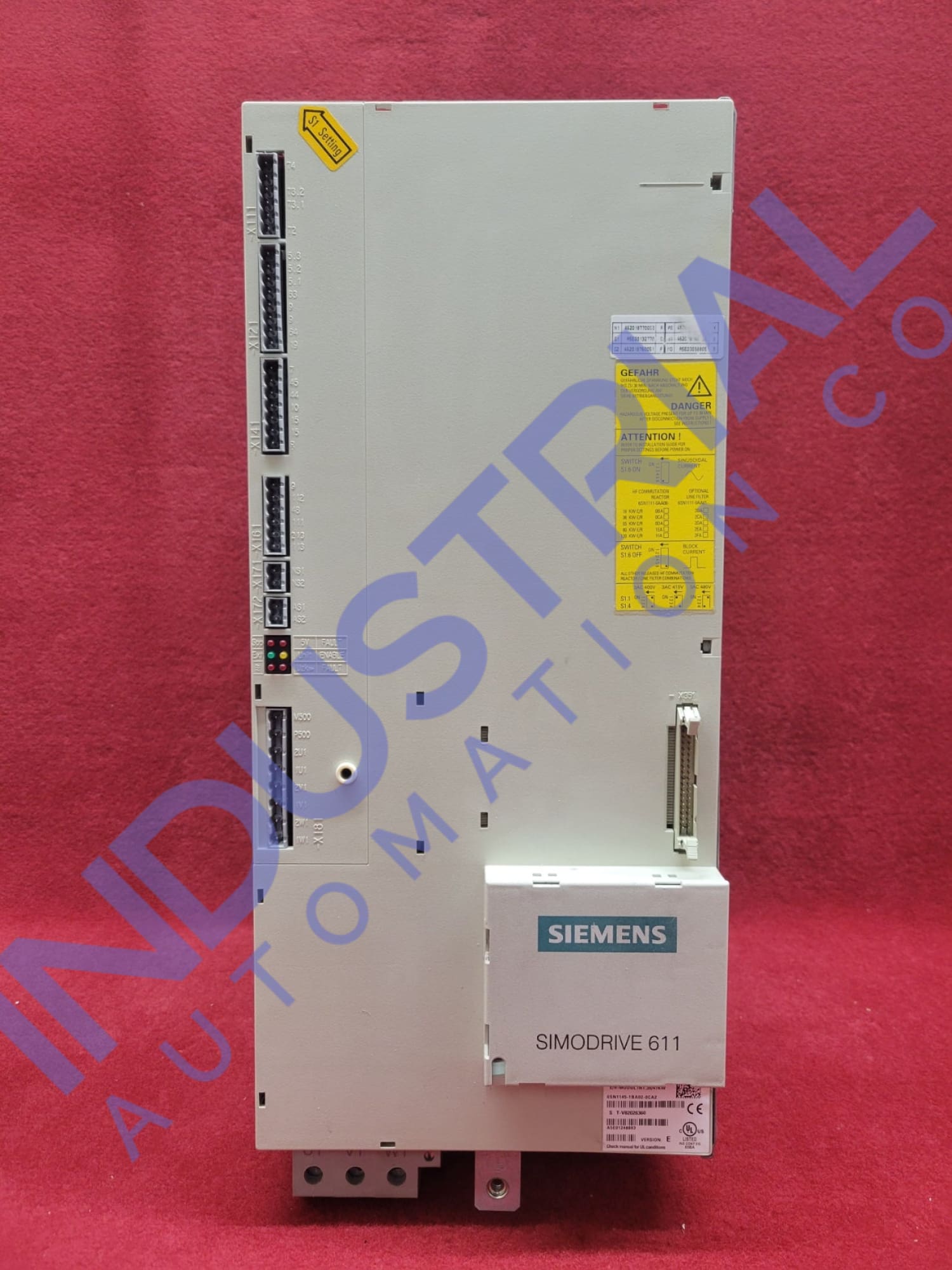

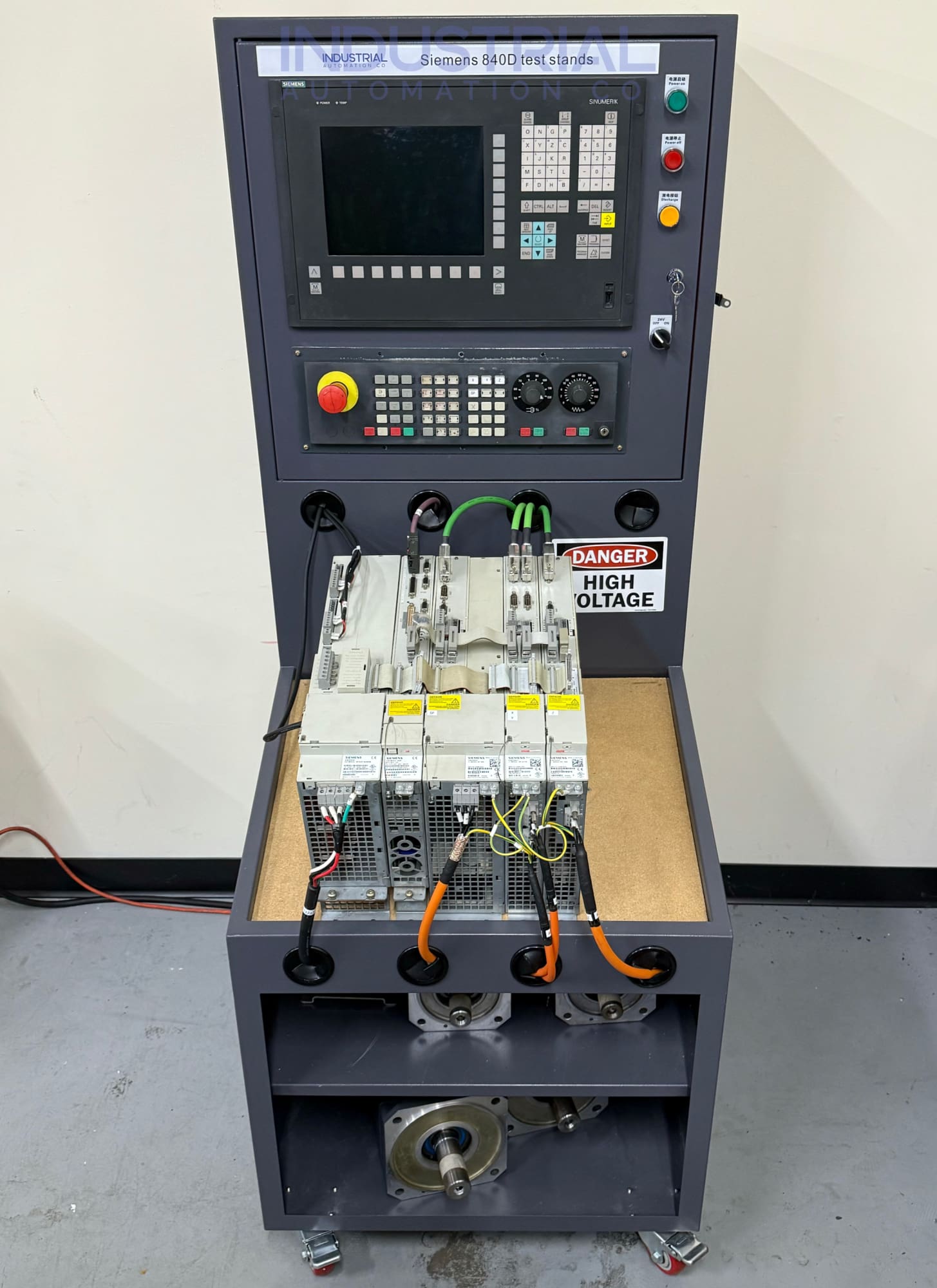

Siemens 6SN1145-1BA02-0CA2

The Siemens 6SN1145-1BA02-0CA2 model is a pioneering model in Siemens' advanced Simodrive 611 series. This highly competent infeed and regenerative feedback unit have been specifically designed to meet the diverse and demanding requirements of modern industrial automation.

Technical Specifications:

The unit operates at an input voltage of 380 - 480 V with a permissible fluctuation range of ±10%. It operates at a nominal frequency of 50-60 Hz with a permissible variation of ±2%. It comes with a robust power rating of 36 KW. The nominal DC link voltage is approximately 650 V. The Siemens 6SN1145-1BA02-0CA2 has a rated output current of 36 Amps.

The 6SN1145-1BA02-0CA2 model comes in a compact design with minimal dimensions. It weighs approximately 15.5 kg, ensuring it is not a burden on the support infrastructure.

This infeed unit offers seamless compatibility with the Siemens Simodrive 611 range, facilitating flexible and reliable system configuration. It can be coupled with other modules for additional functionalities.

The model comes with a comprehensive interface structure, supporting various communication protocols. This ensures that the unit can be effortlessly integrated into both existing and new production infrastructures.

The unit features comprehensive diagnostic capabilities for easy fault detection and troubleshooting. It has LEDs for indicating the status of operations and possible malfunctions, enabling swift issue resolution.

The 6SN1145-1BA02-0CA2 boasts a solid construction that's geared for heavy industrial use. It is housed in a sturdy casing that is resilient against typical wear and tear, enhancing its operational lifespan.

The device demonstrates advanced drive engineering capabilities, capable of providing steady and accurate power to high-performance motors. Its precise control and power regulation ensure that connected equipment operates at peak efficiency.

Despite its high power output, the Siemens 6SN1145-1BA02-0CA2 operates with reduced noise levels, making it an ideal choice for environments where quiet operation is necessary or preferred.

This Siemens model comes with a user-friendly design for straightforward maintenance. The module’s components are easily accessible and replaceable, thereby ensuring minimum downtime during service procedures.

The device is engineered to operate at its best within a temperature range of 0 to +45°C, showcasing optimal performance without any compromise. It exhibits resilience even in temperatures as high as 55°C, albeit with marginal performance reductions. For storage and transportation, it is advisable to maintain a temperature range of -25 to +70°C.

One of the unique features of model 6SN1145-1BA02-0CA2 is its capability for energy regeneration. During the deceleration phases of the connected drive, the unit feeds back energy into the power supply grid, enhancing overall system efficiency and reducing energy consumption.

Built-in Safety Features:

Overtemperature and overvoltage protection ensure the unit doesn't overheat or get damaged by sudden voltage spikes. Short-Circuit protection protects the device and the overall system from potential electrical short-circuits. Electronic fuses offer consistent protection from excess current, minimizing the risk of equipment failure.

Control Modes and Cooling System:

The 6SN1145-1BA02-0CA2 model supports multiple control modes including V/f control, vector control, and servo control. This multi-mode operation ensures high precision and flexibility in controlling various types of electric motors.

The device employs an intelligent cooling system that adapts to operational conditions. This system works to maintain optimal internal temperatures, enhancing overall performance and extending the service life of the device.

Compliance and Certifications:

The 6SN1145-1BA02-0CA2 is manufactured in compliance with various international standards such as ISO 9001. It also meets specific certifications including CE, UL, and CSA, indicating its high-quality construction and safe operation.
