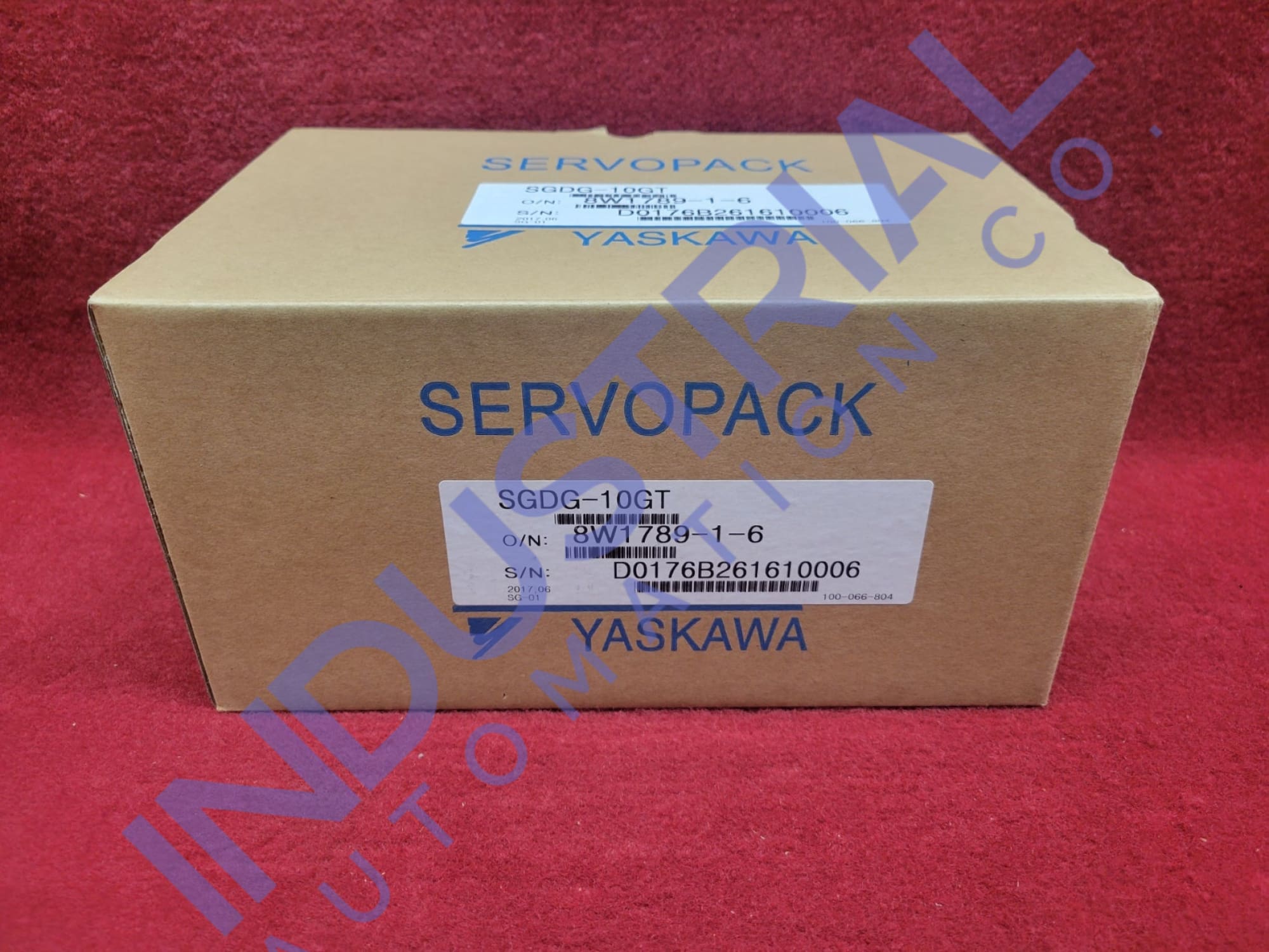

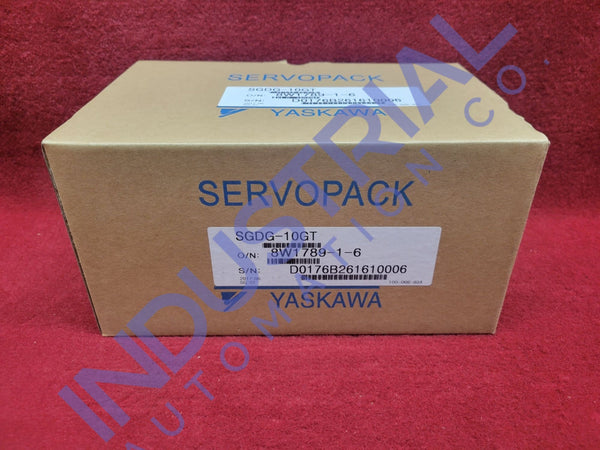

Yaskawa SGDG-10GT

The Yaskawa SGDG-10GT is a dependable AC servo drive offering precise control and efficiency for industrial applications. Known for its reliability and advanced features, it excels in modern automation systems and performs consistently in demanding environments.

Technical Specifications:

The Yaskawa SGDG-10GT, with a 1 KW power rating, offers high-performance AC drive capabilities. Thanks to its tough and enduring design, it excels in industrial settings that demand precise control and efficient operation.

Operating at a frequency of 50/60 Hz, the SGDG-10GT can handle a current range of 7 to 7.6 A, which allows it to deliver consistent and powerful performance. This frequency and current range flexibility ensures compatibility with various industrial power systems.

The drive features a three-phase AC output with a voltage range of 0-253 V and a frequency range of 0-300 Hz, offering a maximum current output of 7.6 A. This setup provides precise control over motor speed and torque, optimizing the performance and efficiency of connected equipment.

Featuring a rated torque of M / 17N, the SGDG-10GT effectively handles high-torque applications, delivering smooth and controlled motion. This capability is crucial for manufacturing and process control tasks that demand precision and reliability.

Supporting an AC input voltage range of 90-253 V, the SGDG-10GT is versatile and adaptable to diverse power supply conditions. This broad input range guarantees consistent performance in locations with varying voltage levels.

Operating Conditions:

Engineered to handle temperatures from 0°C to 55°C, the Yaskawa SGDG-10GT AC drive ensures reliable performance and efficiency. This extensive temperature capacity makes it suited for diverse industrial environments, whether cool or warm.

Beyond its temperature tolerance, the SGDG-10GT is rated at V15 for vibration resistance, ensuring it withstands significant mechanical disturbances. This robust design guarantees the drive's stability and functionality in challenging environments.

Safety Features of SGDG-10GT:

Safety is paramount in industrial environments, and the SGDG-10GT AC drive is meticulously designed to prioritize and ensure safety through its comprehensive built-in protection mechanisms.

A critical safety feature of the SGDG-10GT is its overcurrent protection. This function halts excessive current flow, preventing potential equipment damage or hazardous situations. By detecting and mitigating overcurrent conditions, the drive ensures the safety of both machinery and operators.

Beyond its overcurrent protection, the SGDG-10GT includes overvoltage protection. This mechanism shields the drive and connected equipment from voltage spikes from power surges or electrical anomalies.

Overtemperature protection is a vital safety feature integrated into the SGDG-10GT. This mechanism diligently monitors the drive's operating temperature and triggers protective actions if it surpasses safe limits.

The SGDG-10GT AC drive also integrates advanced fault diagnostics capabilities. These capabilities facilitate the swift identification and resolution of any issues during operation.

Frequently Asked Questions:

What is the warranty period for the Yaskawa SGDG-10GT AC Drive?

The SGDG-10GT AC Drive comes with a comprehensive warranty period of 2 years. This warranty certifies that the product is free from defects in materials and artistry under standard use and service conditions.

What applications is the SGDG-10GT AC Drive suitable for?

The Yaskawa SGDG-10GT AC Drive is versatile and perfect for various industrial applications. It shines in environments requiring precise motor speed and torque control, such as manufacturing, CNC machines, process control, conveyor systems, and HVAC systems.

What communication interface does the Yaskawa SGDG-10GT AC Drive use?

The Drive incorporates the MECHATROLINK-III communication command type for its interface. MECHATROLINK-III is a high-speed, real-time communication protocol developed for industrial automation.
