Allen-Bradley 2098-DSD-075-SE

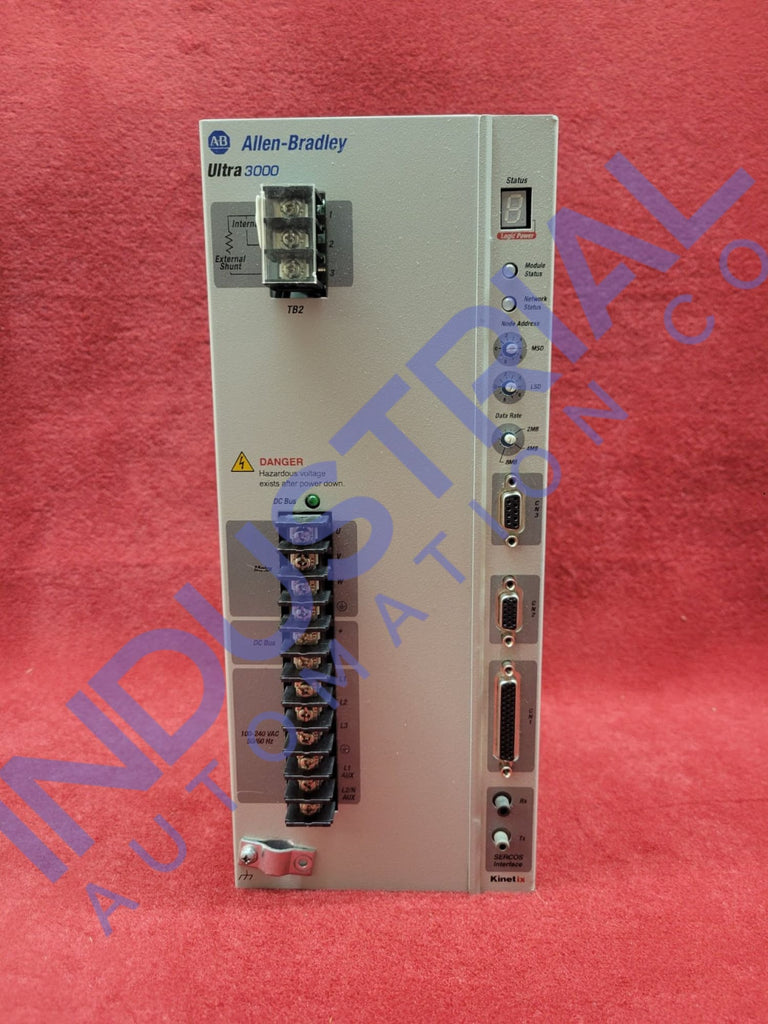

The Allen-Bradley 2098-DSD-075-SE is a versatile associate of the Ultra3000 series of servo drives, known for its high-performance capabilities and integration with the SERCOS interface. This servo drive facilitates avant motion control solutions in industrial applications.

Technical Specifications:

The 2098-DSD-075-SE drive from the Ultra3000 series is engineered to provide outstanding performance in demanding industrial applications. It can handle intermittent output currents of up to 75 Amps (0-peak) and maintain persistent output currents of 35 Amps (0-peak).

With its robust design, the 2098-DSD-075-SE supports three-phase input voltages ranging from 230 to 480 Volts AC, making it suitable for diverse industrial environments. The SERCOS interface further boosted its cutting-edge capabilities, facilitating meticulous and efficient communication within automation systems.

The Allen-Bradley 2098-DSD-075-SE is a high-performance unit that meets rigid industrial needs with robust electrical specifications. It operates with a nominal input current of 30 Amps Root Mean Square (RMS), which ensures a steady and trustworthy power supply for optimal performance. This broad voltage range enables the 2098-DSD-075-SE to fit into various industrial power configurations seamlessly, ensuring versatility and consistent performance across diverse operational environments.

The drive operates within an input frequency range of 47-63 Hz, ensuring compatibility with miscellaneous power supply conditions across different industrial settings.

The Allen-Bradley 2098-DSD-075-SE servo drive is designed to operate on a three-phase AC power supply, with an input voltage range of 230-480 Volts RMS. The drive also features a substantial bus capacitance of 4290 µF, which helps stabilize voltage levels and improve performance under inconsistent load conditions.

Furthermore, the 2098-DSD-075-SE can handle bus overvoltage conditions up to 452 Volts DC, protecting the drive and connected components from potential damage due to voltage spikes. The drives shunt mechanism triggers at 420 Volts DC, effectively dissipating excess energy and ensuring the system remains within safe operating parameters.

Operating Conditions:

The 2098-DSD-075-SE is designed for use in various industrial settings, including hazardous sites. It is approved for such environments, ensuring safe operation under uncompromising conditions. The drive maintains optimal performance within an ambient temperature range starting from 0 degrees Celsius to 50 degrees Celsius, making it well-suited for various industrial environments where exact temperature regulation is essential.

Communication Capabilities and Power Requirements:

The Allen-Bradley 2098-DSD-075-SE servo drive has dedicated RS-232 and RS-485 communication ports, supporting DeviceNet as the interface. These ports enable the drive to create a seamless digital interface between various control architectures, facilitating efficient communication and integration within intricate automation scenarios.

The drive is designed to perform exceptionally well, even when augmented controls are necessary, ensuring high preciseness and dependability in demanding applications.

As a Bulletin 2098 device, the 2098-DSD-075-SE operates on a 240V AC power input. When setting up this drive, it is crucial to use all connectors with appropriate codes and ensure the installation of proper circuit breakers.

Frequently Asked Questions:

What is the significance of the internal shunt resistance in the 2098-DSD-075-SE?

The internal shunt resistance of 16.5 Ohms in the Allen-Bradley 2098-DSD-075-SE servo drive is crucial in handling energy dissipation.

How does the Allen-Bradley 2098-DSD-075-SE manage overvoltage conditions?

The Allen-Bradley 2098-DSD-075-SE servo drive can handle bus overvoltage conditions up to 452 Volts DC, protecting the drive and connected components from potential damage due to voltage spikes.

What are the voltage and current specifications for the Allen-Bradley 2098-DSD-075-SE servo drive?

The Allen-Bradley 2098-DSD-075-SE supports three-phase input voltages ranging from 230 to 480 Volts AC and operates with a nominal input current of 30 Amps RMS. It can handle intermittent output currents of up to 75 Amps (0-peak).

Product Specifications Table
