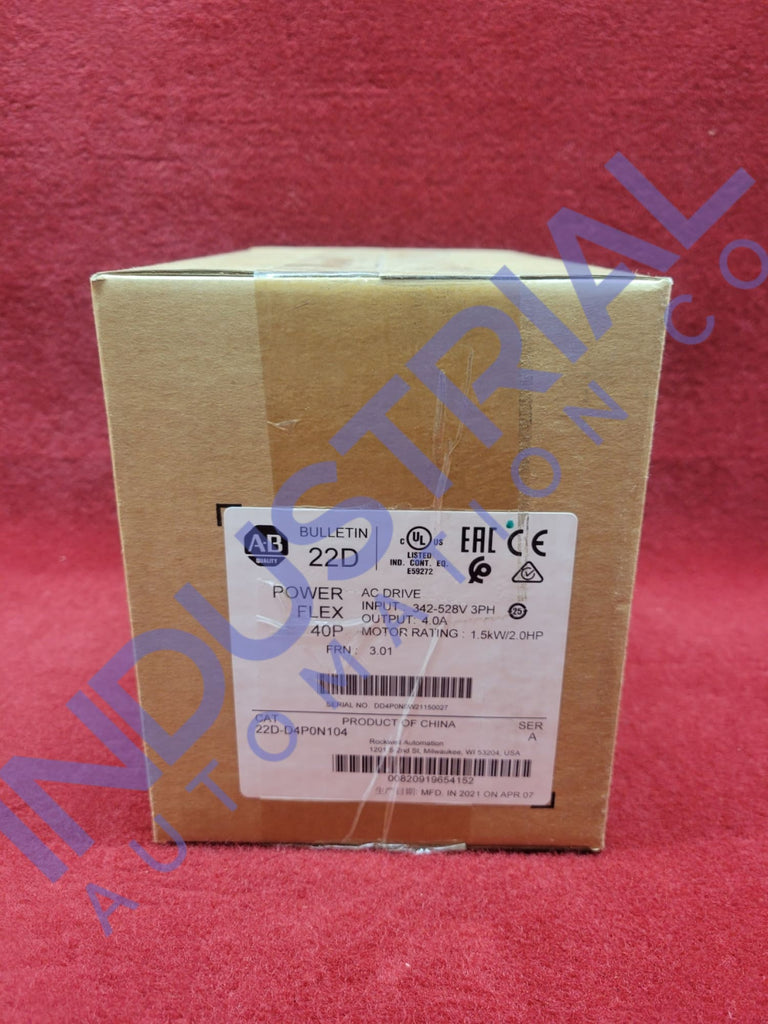

Allen-Bradley 22D-D4P0N104
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Description
Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice‚… here.
- AC DRIVE
- ADJUSTABLE FREQUENCY
- POWERFLEX 40P
- 480 VAC
- 3 PHASE
- 4 AMP
- 1.5 KW
- 2 HP
- PANEL MOUNT - IP 20 NEMA TYPE OPEN
- DISPLAY/FAULT RESET ONLY
- NOT FILTERED
- STANDARD VERSION
Repair & Service
Quick Repairs and Great Service
Quick Search
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 22D-D4P0N104
| Brand | Allen-Bradley |
|---|---|
| Manufacturer: | |
| Input Voltage: | 380-480 VAC |
| Input Phase: | 3-Phase |
| Input Current: | 5.7 A |
| Output Voltage: | 0-460VAC |
| Output Power: | 1.5 kW (2.0 HP) |
| I/O: | Discrete Inputs: Seven (7) Sink / Source Discrete Outputs: One (1) Opto Output; Two (2) Form C Contacts Analog Input: One (1) Analog Input 0-10VDC; 0- 20mA Analog Output: One (1) Analog Output 0-10VDC; 0- 20mA |
| Installation: | Panel Mount |
| Enclosure Rating: | IP20 / NEMA UL Type Open |
| Built-in communication port: | RS485 |
| Optional communication protocols: | BacNet; LonWorks; ProfiBus; Ethernet; DeviceNet; ControlNet |
| Part Number/Catalog No. | 22D-D4P0N104 |
| Product Line | Powerflex 40P |
| Amperage | 4.0 A |
| Phase | Three-Phase |
| Enclosure | Open NEMA Type -Panel Mount (IP20) |
| Input Power | 480 Volts AC |
| Horsepower | 2 Horsepower |
| Filter | No CE Compliant Filter |
| Type | Standard |
| Frame Size | B |
| UPC | 820919654152 |
