Allen-Bradley 25B-D037N114
Allen-Bradley 25B-D037N114

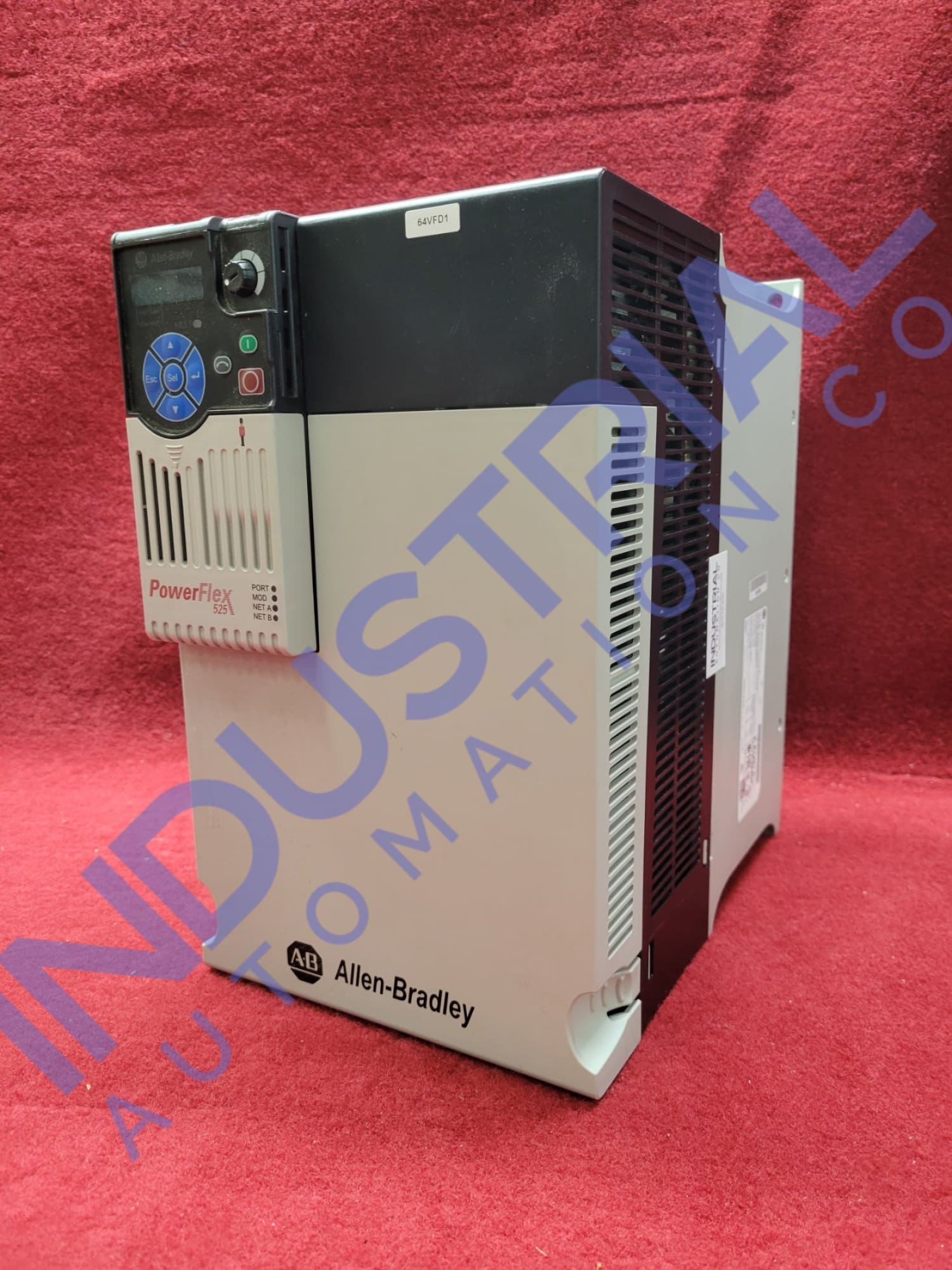

The Allen-Bradley 25B-D037N114 is an adjustable frequency AC Drive from Rockwell Automation, designed for industrial applications. This drive is known for its compact design, making it ideal for installations with limited panel space. It offers versatile motor control capabilities, ensuring efficient operation in various settings.
Technical Specifications:
The 25B-D037N114 operates at a voltage rating of 480VAC and supports three-phase power systems. It has an output power of 18.5 kW (25.0 HP) for normal duty and 15.0 kW (20.0 HP) for heavy-duty applications, with an output current of up to 37.0 Amperes.
The drive features an IP20 NEMA open-type enclosure and a filtered emission class. It includes an integral keypad for local operation, which can also configure and troubleshoot the drive.
Additionally, it has seven sink/source discrete inputs, one N.O. contact relay output, one N.C. contact relay output, two digital/optocoupler discrete outputs, two 0-10VDC or 0-20mA analog inputs, and one 0-10VDC or 0-20mA analog output. The embedded Ethernet/IP and RS-485 communication interfaces enable seamless integration with Programmable Automation Controllers (PACs), HMIs, and SCADA systems.
Safety Precautions and Measures:
Safety is necessary when working with the Allen-Bradley 25B-D037N114. Before installation, ensure the drive is completely disconnected from all power sources. The capacitors in the drive can hold a charge even after power is removed, so waiting at least three minutes is essential to allow the capacitors to discharge fully. Only qualified personnel should handle the drive to avoid personal injury or equipment damage.
Installation Guide:
First, install the drive vertically on a flat, secure surface to ensure proper cooling and airflow. Maintain a minimum clearance of 50 mm (2 inches) on all sides. The drive's compact design supports zero stacking, which saves panel space. Then, follow the wiring instructions in the user manual. Use suitable wire sizes for power and control connections.
Ensure the input power supply (L1, L2, L3) and motor leads (T1, T2, T3) are securely connected. Proper grounding is required for safety and to minimize electrical noise. After this, connect the drive's ground terminal to the system ground using an appropriately sized conductor. This is essential to ensure safety and reduce electrical noise.
Use the integral keypad or Rockwell Software’s Connected Components Workbench to configure the drive. Set the motor control parameters, such as voltage, current, and frequency, according to the motor’s specifications. The keypad also facilitates troubleshooting by displaying diagnostic information. After installation, perform a test run to make sure the drive and motor operate correctly. Adjust parameters as necessary to optimize performance.
Frequently Asked Questions:
How many discrete inputs and outputs are available on the Allen-Bradley 25B-D037N114?
The Allen-Bradley 25B-D037N114 includes seven sink/source discrete inputs, two digital/optocoupler discrete outputs, and additional relay outputs for versatile control options.
What communication interfaces does the Allen-Bradley 25B-D037N114 support?
The Allen-Bradley 25B-D037N114 supports embedded Ethernet/IP and RS-485 communication interfaces for seamless integration with various control systems.
What type of enclosure does the Allen-Bradley 25B-D037N114 have?
The Allen-Bradley 25B-D037N114 features an open enclosure of IP20 NEMA. This provides protection that is suitable for many industrial environments.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Series | PowerFlex 525 Drive |
| Enclosure Type | IP20 NEMA / Open Type |
| Output Current | 37.0 A |
| Interface Module | Standard |
| Voltage | Three Phase, 480 VAC |
| Frame Size | Frame E |
| EMC Filtering Options | Available |
| Output Power (normal) | 25 HP |
| Output Power (heavy-duty) | 20 HP |
| Input Phase | 3-Phase |
We can ship via UPS, FedEx, and USPS. We can ship on customers' accounts as well. International delivery available via UPS and DHL. In stock items typically ship same day.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Payment options
We accept all major credit cards. Arrangements can be made for Wire Transfers and PayPal payments.
Credit Terms
We understand that credit is a necessary part of business. We offer NET 30 terms to established companies.
Description
Allen-Bradley 25B-D037N114
The Allen-Bradley 25B-D037N114 is an adjustable frequency AC Drive from Rockwell Automation, designed for industrial applications. This drive is known for its compact design, making it ideal for installations with limited panel space. It offers versatile motor control capabilities, ensuring efficient operation in various settings.
Technical Specifications:
The 25B-D037N114 operates at a voltage rating of 480VAC and supports three-phase power systems. It has an output power of 18.5 kW (25.0 HP) for normal duty and 15.0 kW (20.0 HP) for heavy-duty applications, with an output current of up to 37.0 Amperes.
The drive features an IP20 NEMA open-type enclosure and a filtered emission class. It includes an integral keypad for local operation, which can also configure and troubleshoot the drive.
Additionally, it has seven sink/source discrete inputs, one N.O. contact relay output, one N.C. contact relay output, two digital/optocoupler discrete outputs, two 0-10VDC or 0-20mA analog inputs, and one 0-10VDC or 0-20mA analog output. The embedded Ethernet/IP and RS-485 communication interfaces enable seamless integration with Programmable Automation Controllers (PACs), HMIs, and SCADA systems.
Safety Precautions and Measures:
Safety is necessary when working with the Allen-Bradley 25B-D037N114. Before installation, ensure the drive is completely disconnected from all power sources. The capacitors in the drive can hold a charge even after power is removed, so waiting at least three minutes is essential to allow the capacitors to discharge fully. Only qualified personnel should handle the drive to avoid personal injury or equipment damage.
Installation Guide:
First, install the drive vertically on a flat, secure surface to ensure proper cooling and airflow. Maintain a minimum clearance of 50 mm (2 inches) on all sides. The drive's compact design supports zero stacking, which saves panel space. Then, follow the wiring instructions in the user manual. Use suitable wire sizes for power and control connections.
Ensure the input power supply (L1, L2, L3) and motor leads (T1, T2, T3) are securely connected. Proper grounding is required for safety and to minimize electrical noise. After this, connect the drive's ground terminal to the system ground using an appropriately sized conductor. This is essential to ensure safety and reduce electrical noise.
Use the integral keypad or Rockwell Software’s Connected Components Workbench to configure the drive. Set the motor control parameters, such as voltage, current, and frequency, according to the motor’s specifications. The keypad also facilitates troubleshooting by displaying diagnostic information. After installation, perform a test run to make sure the drive and motor operate correctly. Adjust parameters as necessary to optimize performance.
Frequently Asked Questions:
How many discrete inputs and outputs are available on the Allen-Bradley 25B-D037N114?
The Allen-Bradley 25B-D037N114 includes seven sink/source discrete inputs, two digital/optocoupler discrete outputs, and additional relay outputs for versatile control options.
What communication interfaces does the Allen-Bradley 25B-D037N114 support?
The Allen-Bradley 25B-D037N114 supports embedded Ethernet/IP and RS-485 communication interfaces for seamless integration with various control systems.
What type of enclosure does the Allen-Bradley 25B-D037N114 have?
The Allen-Bradley 25B-D037N114 features an open enclosure of IP20 NEMA. This provides protection that is suitable for many industrial environments.
Product Specifications Table
| Attribute | Specifications |
|---|---|
| Series | PowerFlex 525 Drive |
| Enclosure Type | IP20 NEMA / Open Type |
| Output Current | 37.0 A |
| Interface Module | Standard |
| Voltage | Three Phase, 480 VAC |
| Frame Size | Frame E |
| EMC Filtering Options | Available |
| Output Power (normal) | 25 HP |
| Output Power (heavy-duty) | 20 HP |
| Input Phase | 3-Phase |
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Understanding the Allen-Bradley 25B-D037N114
The Allen-Bradley 25B-D037N114 has a compact, space-saving design. This PowerFlex 525 AC drive features an embedded keypad for local operation, an embedded communication interface for remote operation, and embedded Input and output channels for remote/local operation. The integral keypad is used to modify or enter the drive's existing configuration and functions as a troubleshooting reference. The device features a variety of human-machine integration capabilities.
Key Features and Benefits
- Variety of motor control options
- Modular design
- Efficient network communication
- Simplified system integration
- Safe Torque-Off functionality
- Operational efficiency
AB 25B-D037N114 Technical Specifications
The AB 25B-D037N114 includes I/O terminals that permit the wiring of external signaling devices, enabling the drive to be operated outside the keypad. It comes with an IP20 NEMA open-type enclosure. Specifications include:
- Control method: Ethernet I/P / RS485
- Operating temperature: Up to 50°C
- Discrete Inputs: Seven sink/source
- Outputs: One N.O.; One N.C.
- Contacts: Two digital/ optocoupler
- Normal output power: 18.5 kW or 25.0 HP
- Heavy-duty output power: 15.0 kW or 20.0 HP
- Output voltage: 0-460VAC
Applications
The 25B-D037N114 is ideal for machines with simple system integration. Designed to provide dependable and versatile motor control, it is typically used in a variety of applications such as conveyors, fans, pumps, and mixers. You may also be interested in the Allen-Bradley 25B-D1P4N114, Allen-Bradley 25B-D6P0N114 or Allen-Bradley 25B-D043N114.
Installation and Configuration
The embedded Ethernet I/P and RS485 interfaces connect the 25B-D037N114 in existing communication networks to fully integrate with HMI, PAC, and SCADA systems. The drive can be mounted on the panel or DIN rail. Its compact footprint requires minimum panel space for installation. Make sure to observe the Zero Stacking™ mounting guidelines to maintain proper airflow and cooling. This device provides seamless integration into Logix control architectures and automatic device configuration.
Outstanding Customer Service & Quick Shipping
Trust Your 25B-D037N114 Needs to Industrial Automation Co.
We are a leading source for the 25B-D037N114. In-stock drives are eligible for same-day shipping, and we offer a two-year warranty on all devices. Plus, you can't beat our unparalleled customer service. Order today and experience the Industrial Automation Co. difference.
