Allen-Bradley 2711-K3A17L1
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
Industrial Automation Co. is NOT an Authorized Rockwell Distributor - we have our own unique inventory and sourcing relationships. Review our Reseller notice, here.

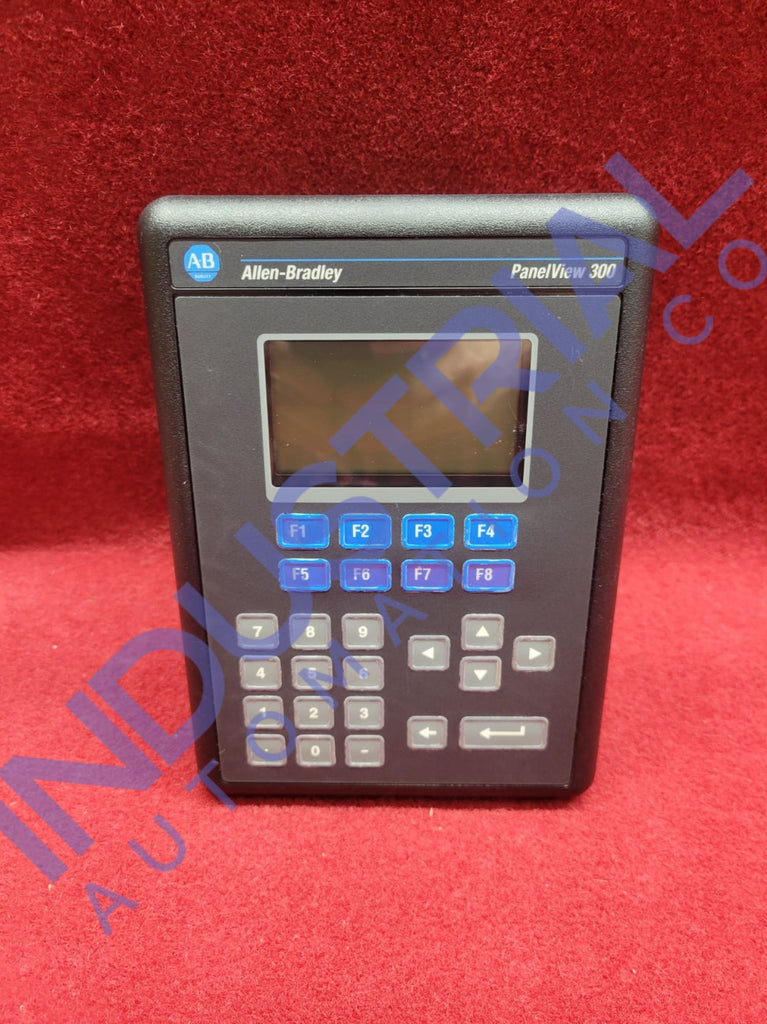

The Allen-Bradley 2711-K3A17L1 PanelView Standard 300 Terminal, although discontinued, remains a compact yet capable HMI for controlling machines, suitable for bright environments with its 3-inch monochrome transflective LCD featuring an LED backlight rated for up to 100,000 hours. This terminal incorporates a numeric keypad, eight function keys, and four arrow keys for intuitive user interaction, and it communicates via an RS-232 port, supporting DF1 protocol for seamless integration with SLC controllers and printers. The device operates on a 24-volt DC power supply, utilizing up to 10 watts, and offers application development through the PanelBuilder32 software, which is compatible with several Microsoft Windows operating systems.
All products (new, refurbished, and repairs) are covered by the Industrial Automation Company's 2 Year Warranty. Manufacturer's Warranty does not apply.
TECHNICAL SPECIFICATIONS
Technical specifications for 2711-K3A17L1
| Backlight | 100,000 hr LED backlight life |
|---|---|
| Brand | Allen-Bradley |
| Manufacturer: | Rockwell Automation |
| Product Family: | PanelView Standard Operator Terminals |
| Product Type: | PanelView 300 Standard Operator Terminals |
| Display Type: | Monochrome transflective LCD with LED backlight |
| Display Area: | 73 mm (w) x 42 mm (h) 2.87 in. (w) x 1.67 in. (h) |
| Resolution: | 128 x 64 Pixels |
| Keypad Assembly: | 8 function keys (F1…F8); Cursor keys; Numeric entry keys |
| Application memory: | 170 KB application runtime; 240 KB nonvolatile memory (application objects plus text and bitmaps) |
| Communication ports: | RS232 (DF1) |
| Input Voltage range: | 18…32V DC (24V DC nom) |
| Enclosure: | NEMA Type 12/13, 4X (Indoor use only), IP54, IP65 |
| Status Indicators: | COMM: Green Fault: Red |
| Part Number/Catalog No. | 2711-K3A17L1 |
| Product Line | Panelview 300 |
| Display Size | 3 inches |
| Display Color | Monochrome |
| Input Type | Keypad |
| Communication | RS-232 (DF1) Communication Port |
| Input Power | 24 Volts DC |
| Memory | 240 KB |
| Communication Cable | 1761-CBL-PM02 |
| Shipping Weight | 3 pounds |
| Shipping Dimensions | 11 x 8 x 6 inches |
| Series | A and B |
| UPC | 10611320275138 |
| Product Lifecycle Status* | Discontinued/Obsolete |
* The Allen Bradley 2711-K3A17L1 has been discontinued by the manufacturer, however we specialize in obsolete parts and can likely still supply surplus and/or refurbished replacement 2711-K3A17L1 units instead of migration.
