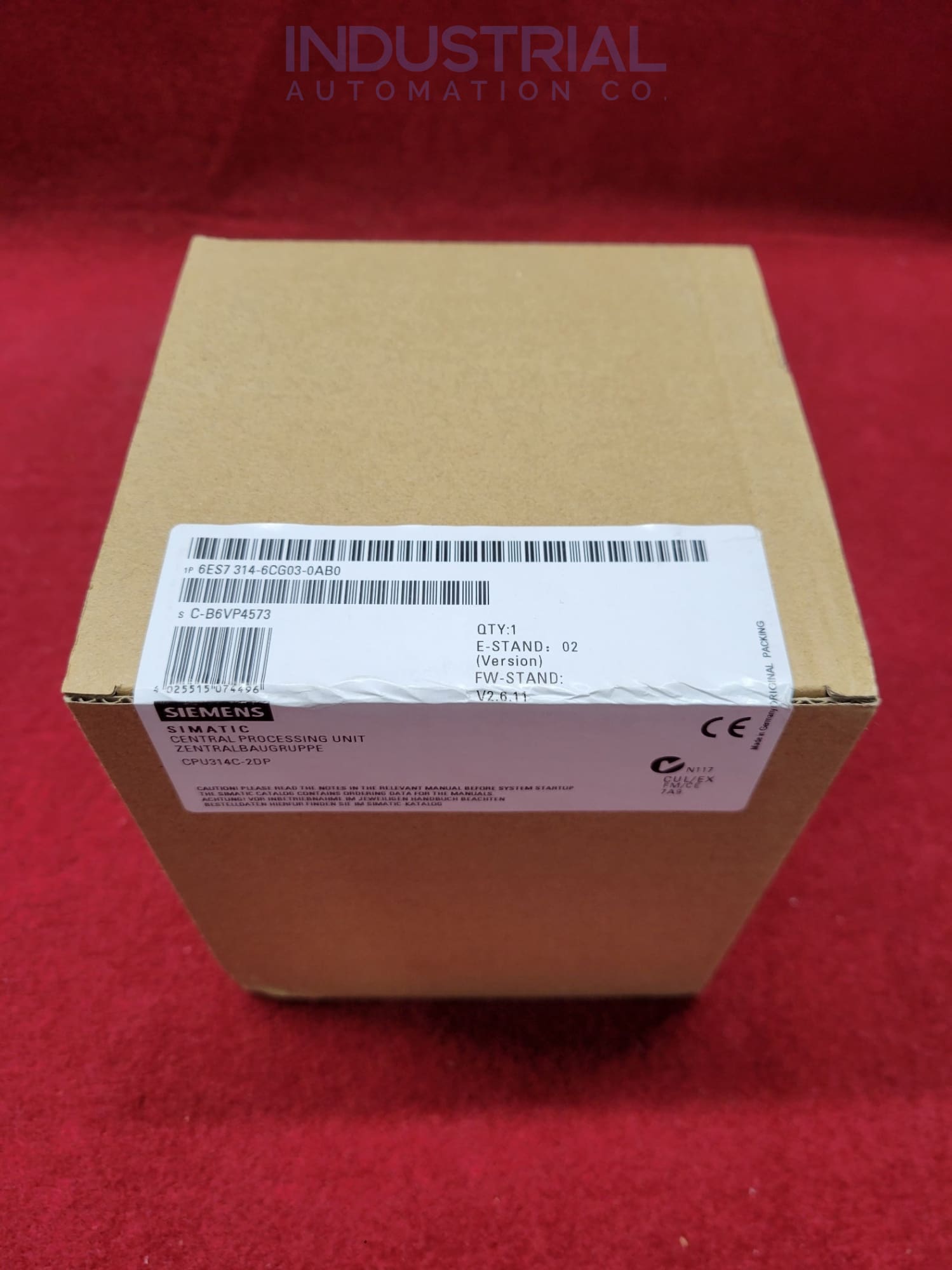

Siemens 6ES7314-6CG03-0AB0

Siemens 6Es7 314-6Cg03-0Ab0
Siemens 6Es7 314-6Cg03-0Ab0

Siemens 6ES7314-6CG03-0AB0

The Siemens 6ES7314-6CG03-0AB0 is a CPU 314C-2 DP module specially designed to integrate with the SIMATIC S7-300 automation system for high performance. It has advanced features and control to perform complex tasks in industrial applications.

Technical Specifications:

The Siemens 6ES7314-6CG03-0AB0 is a powerful CPU unit that weighs only 676 grams. The dimensions of the CPU unit are width 120mmxheight 125mmxdepth 130mm. The unit has a unique and compact design that integrates and is easily used in industrial applications without dimensional constraints.

The CPU unit has a rated supply voltage of 24V DC and an allowed range for operation in 20.4 to 28.8V DC. The current consumption is 150mA in no-load conditions while 1000mA is rated as current. The total inrush current for the unit is 11A. Digital input from load voltage has a maximum of 70mA without load.

The total digital output voltage is 16A, and the rated voltage is 24V DC with 0.6A of current per channel. Analogue input contains four channels. Input Ranges are 0 to 10 V, 0 to 20 mA, -20 to +20 mA, 4 to 20 m. Analogue output has two channels with Output Ranges of 0 to 10 V, -10 to +10 V, 0 to 20 mA, -20 to +20 mA, and 4 to 20 mA.

The Siemens 6ES7314-6CG03-0AB0 has ultimate performance and fast CPU processing time as Bit operations speed is 0.1 µs, Word operations: 0.2 µs, Fixed point arithmetic: 2 µs, and Floating point arithmetic: 3 µs. The unit has work memory of 96 KB (integrated, non-expandable), and Load Memory is Expandable via MMC, up to 8 MB.

Communication Interface and functions:

The Siemens 6ES7314-6CG03-0AB0 uses RS 485 Interfaces, with PROFIBUS DP master and PROFIBUS DP slave protocols. PROFIBUS DP master has 12 connections at the transmission rate of 12 Mbit/s, and the number of DP slaves is 32max. Services include PG/OP communication, Routing, S7 communication (client/ server), SYNC/FREEZE, Direct data exchange and DPV1.

PROFIBUS DP slave protocol uses 12 connections with a GSD file provided by Siemens. The transmission rate is 12 Mbit/s, and the address area is 32 maximum. It uses 32 bytes of data per address area. Services provided are PG/OP communication, Routing, S7 communication, server only and Direct data exchange. Transfer memory for input and output is 244 bytes.

The CPU unit has advanced four channels for frequency measurement up to 60 KHz. It has a controlled positioning feature and pulse output for up to 2.5 KHz at four channels. Proportional Integral Derivative (PID) control is integrated into the unit to perform heavy operations precisely and accurately.

Applications:

The Siemens 6ES7314-6CG03-0AB0 CPU is widely utilised in various industrial applications due to its robust features and reliable performance. It is particularly suitable for automation tasks in the automotive, aerospace, power generation, and electronics industries.

Frequently Asked Questions:

What are the communication interfaces supported by Siemens 6ES7314-6CG03-0AB0?

The Siemens 6ES7314-6CG03-0AB0 supports RS 485 communication interfaces. These interfaces enable seamless integration into various industrial automation systems.

What is the bit operation speed of Siemens 6ES7314-6CG03-0AB0?

The Siemens 6ES7314-6CG03-0AB0 is designed to have an operation speed of 0.1 µs and a word Operations speed of 0.2 µs.

What is the rated voltage for Siemens 6ES7314-6CG03-0AB0?

The rated voltage for Siemens 6ES7314-6CG03-0AB0 is 24V and maximum allowed upper limit is 28.8V. The CPU has a Miniature circuit breaker of type C at 2A min.

Product Specifications Table

Attribute Specifications
Voltage input 24V
Current Consumption 1000mA
Inrush Current 11A
96Kbyte
CPU Blocks 1024
Address area Input 1 Kbyte
Digital Channel Inputs 7856
Analogue Channel Inputs 494
Analogue outputs 2
Interface Integrated RS 485 interface
