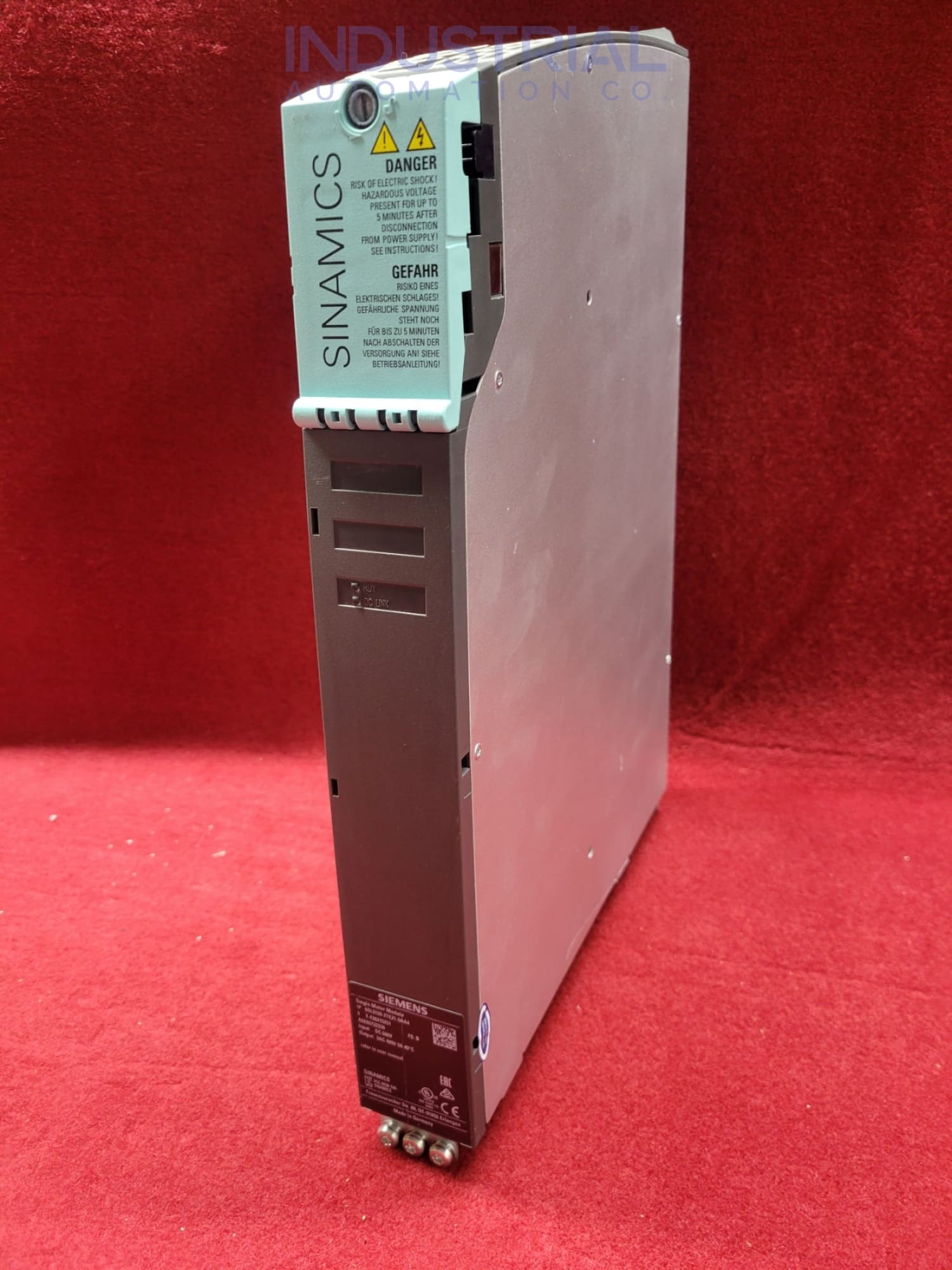

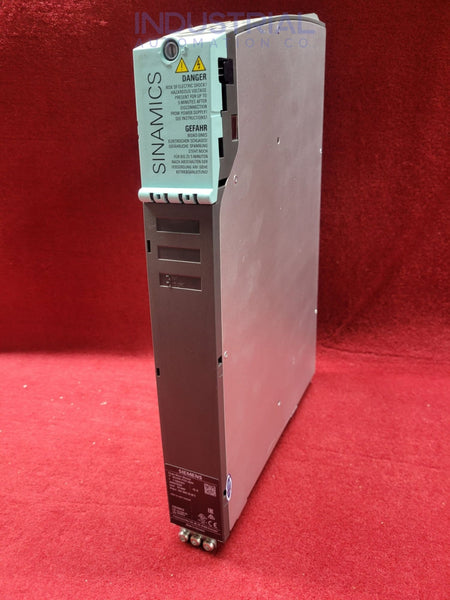

Siemens 6SL3120-2TE21-0AA4
Siemens 6SL3120-2TE21-0AA4
Modern, state-of-the-art SINAMICS S120 drive modules like the 6SL3120-2TE21-0AA4 from Siemens are tailor-made for demanding industrial settings. This small, lightweight module is engineered to provide accurate and dependable control for a wide range of motor-driven systems, guaranteeing smooth operation and responsive performance.
Technical Specifications:
The Siemens 6SL3120-2TE21-0AA4 takes a 600 V DC input voltage and produces a three-phase AC output voltage of 400 V. The combined output current of the two channels is 9 A, resulting in a total power rating of 10 kW. Because it can accept an AC input voltage between 380 and 480 V AC at 50 or 60 Hz, this drive module is suitable for use with a broad variety of power systems.
It uses internal air conditioning to keep its weight down to 5.8 kg while maintaining a tiny book-size frame. This module is designed to be easily integrated into control cabinets due to its 50 mm breadth. It is suitable for use in industrial environments due to its IP20 protection grade. A DRIVE-CLiQ cable and a PROFINET IO interface allow the device to connect to networks.
You may be certain that the module will continue to work reliably under a wide range of loads thanks to its 150% overload capability for 60 seconds and 200% overload capability for 3 seconds. You may optimize the motor efficiency and noise by adjusting the pulse frequency between 2 and 16 kHz. Optimal pulse patterns are also used by the Siemens 6SL3120-2TE21-0AA4 to maximize operational efficiency.
Current and Voltage Specifications:
The 6SL3120-2TE21-0AA4 can handle a DC input voltage of 600 V and 50/60 Hz frequencies with ease. As an added bonus, it can handle input voltages between 380 and 480 V. The module can handle currents up to 9 A per channel and produces a steady 3-phase AC voltage of 400 V. Its power rating is 10 kW.
The module's control and communication functions are powered by a 24 V DC supply. Achieving 150% for 60 seconds and 200% for 3 seconds ensures consistent performance under different load conditions, thanks to its outstanding overload capacity. Motor efficiency and noise can be fine-tuned by adjusting the pulse frequency, which ranges from 2 kHz to 16 kHz.
Safety Features and Specifications:
The Siemens 6SL3120-2TE21-0AA4 complies with international standards for safety features, which include SIL 2 and PL d. To ensure safe handling and operation, the STO system inhibits the drive torque to prevent the motor from functioning by accident.
The motor's state is maintained by Safe Operating Stop (SOS), while deceleration is monitored by Safe Stop 1 (SS1), which stops the motor. If the motor fails, Safe Brake Control (SBC) will manage an external brake. The SLS mechanism stops the engine before it gets to a safe speed. The Safe Direction (SDI) function ensures that the engine continues to move in a safe direction.
Frequently Asked Questions:
Where does the Siemens 6SL3120-2TE21-0AA4 draw its input voltage?
The 6SL3120-2TE21-0AA4 can accept an AC input voltage range of 380 to 480 volts and a DC input voltage of 600 volts. The frequency at which it runs is 50/60 Hz.
How much power can the Siemens 6SL3120-2TE21-0AA4 handle during overload?
A 60-second overload and a 3-second overload are within the 6SL3120-2TE21-0AA4's capabilities. This guarantees reliable operation under a variety of conditions.
What communication interfaces are available on the Siemens 6SL3120-2TE21-0AA4?
In addition to its PROFINET IO interface, the Siemens 6SL3120-2TE21-0AA4 features a DRIVE-CLiQ cable. Reliable communication and network connectivity are provided by these interfaces.
Product Specifications Table:
| Attributes | Specification |
|---|---|
| Input Voltage (DC) | 600 V DC |
| Input Voltage Range (AC) | 380-480 V AC |
| Frequency | 50/60 Hz |
| Output Voltage | 3-phase, 400 V AC |
| Output Current | 9 A per channel |
| Power Rating | 10 kW |
| Overload Capacity | 150% for 60 seconds, 200% for 3 seconds |
| Cooling Method | Internal air cooling |
| Protection Class | IP20 |
| Communication Interface | DRIVE-CLiQ, PROFINET IO |
